Fuel Lines: Notes

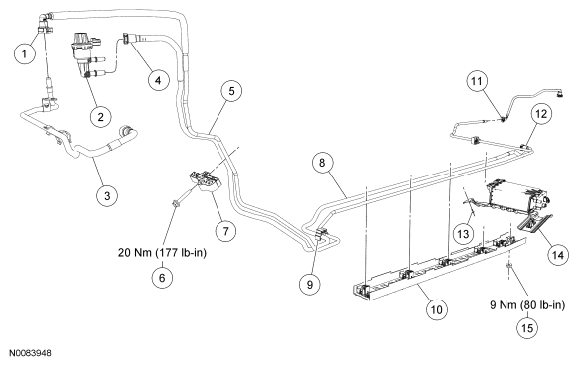

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Fuel supply tube-to-fuel rail jumper tube quick connect coupling (part of 9G700) |
| 2 | 9G641 | Evaporative Emission (EVAP) canister purge valve |
| 3 | 9J280 | Fuel rail jumper tube |
| 4 | - | Fuel vapor tube-to- EVAP canister purge valve quick connect coupling (part of 9G700) |
| 5 | - | Fuel supply tube (part of 9G700) |
| 6 | W713916 | Fuel tube bundle retainer stud |
| 7 | - | Fuel tube bundle retainer (part of 9G700) |
| 8 | - | Fuel vapor tube (part of 9G700) |
| 9 | - | Fuel tube bundle separator (2 required) (part of 9G700) |
| 10 | - | Fuel tube bundle shield (part of 9G700) |
| 11 | - | Fuel tank jumper tube-to-fuel tube quick connect coupling (part of 9J337) |
| 12 | - | Fuel vapor tube-to- EVAP canister quick connect coupling (part of 9G700) |
| 13 | W703545 | EVAP canister rivet |
| 14 | - | EVAP canister shield (part of 9E857) |
| 15 | W711059 | Fuel tube bundle/EVAP canister shield nut |
