Left Rear Wheel Speed Sensor Connector

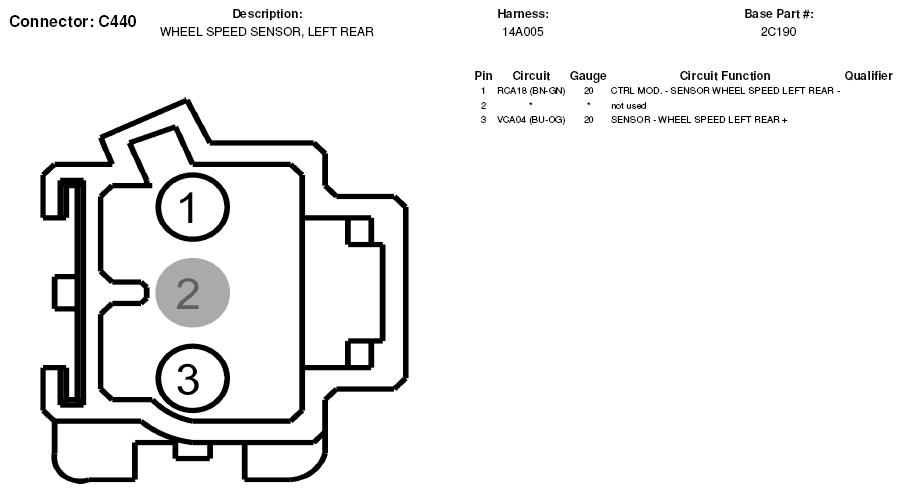

Fig 1: Left Rear Wheel Speed Sensor Connector End View (C440)

G05602510
