Front Interior Lamp Connector
Front Interior Lamp Connector

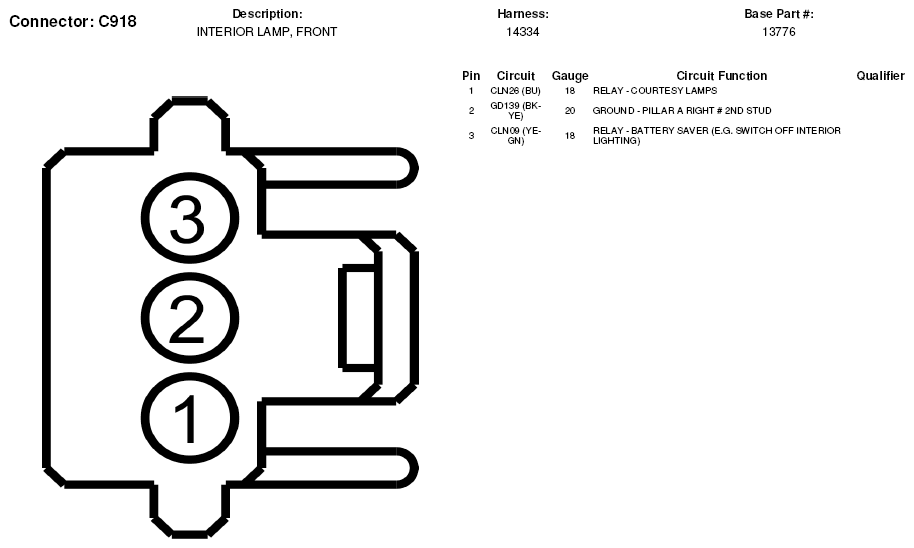

Fig 1: Front Interior Lamp Connector End View (C918)

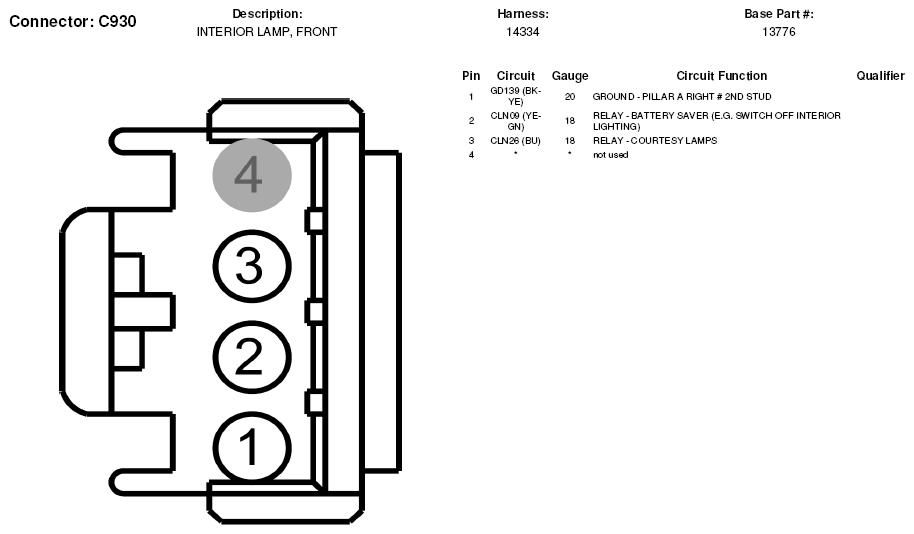

Fig 2: Front Interior Lamp Connector End View (C930)
