Home >> Lincoln >> 2008 >> MKZ AWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Ambient Air Temperature Sensor Connector

Ambient Air Temperature Sensor Connector

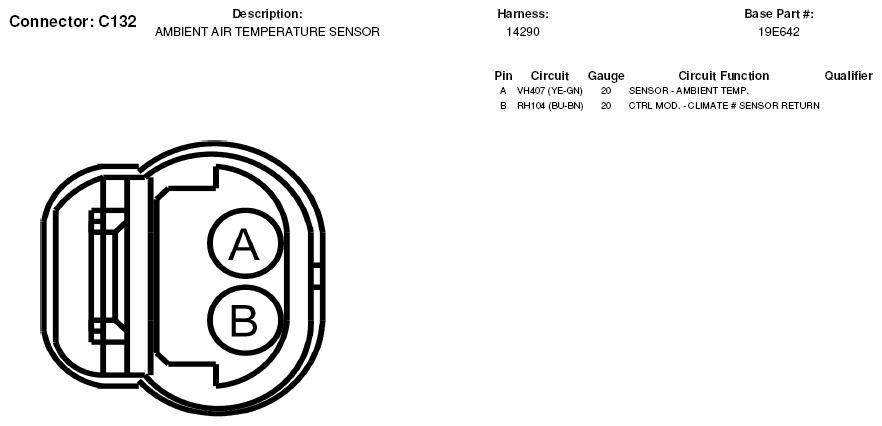

Fig 1: Ambient Air Temperature Sensor Connector End View (C132)

G05602382
