Steering Column Shaft: Notes

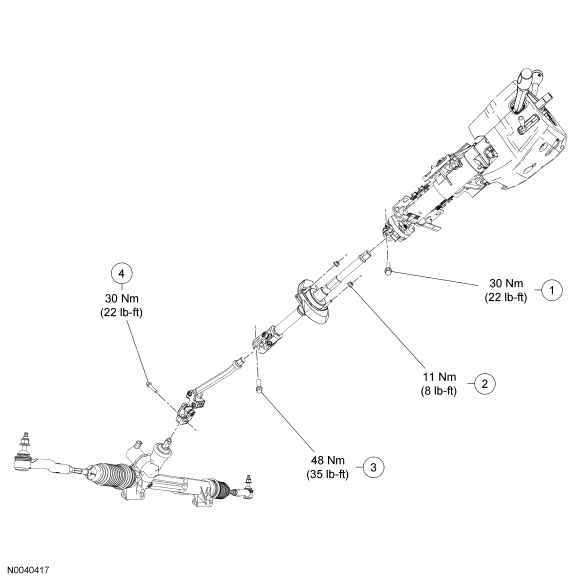

Fig 1: Steering Column Shaft Replacement Components With Torque Specifications
GF0018800Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W710820 Upper intermediate shaft-to-column bolt
2 N806385 Upper intermediate shaft bearing nuts (2 required)
3 W710820 Upper intermediate shaft-to-lower intermediate shaft bolt
4 W710821 Lower intermediate shaft-to-steering gear bolt
