Multifunction switch, Wiper/washer Portion: Schematic

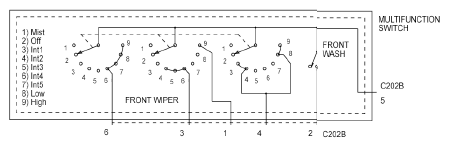

Fig 1: Multifunction Switch, Wiper/Washer Portion - Schematic

G05177881

Courtesy of FORD MOTOR CO.
