Multifunction switch, Lamp Portion: Schematic

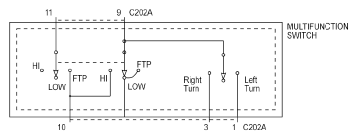

Fig 1: Multifunction Switch, Lamp Portion - Schematic
G05177883Courtesy of FORD MOTOR CO.

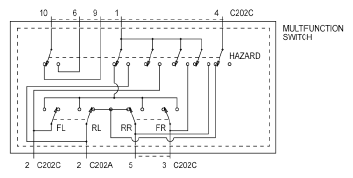

Fig 1: Multifunction Switch, Lamp Portion - Schematic
G05177885Courtesy of FORD MOTOR CO.
