Navigation Module: Notes

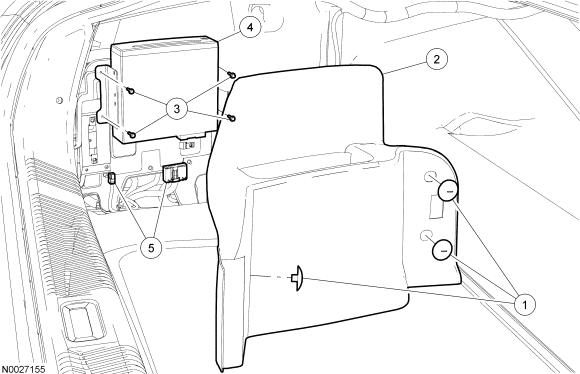

Fig 1: Identifying Navigation Module Components
GF0019071Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N804326 Trim panel retainer nuts (3 required)
2 54454A82 Left rear luggage compartment trim panel
3 - Navigation module bolts (4 required)
4 10E887 Navigation module
5 - Navigation module electrical connectors (part of 14A005)
