Powertrain Control Module Connectors

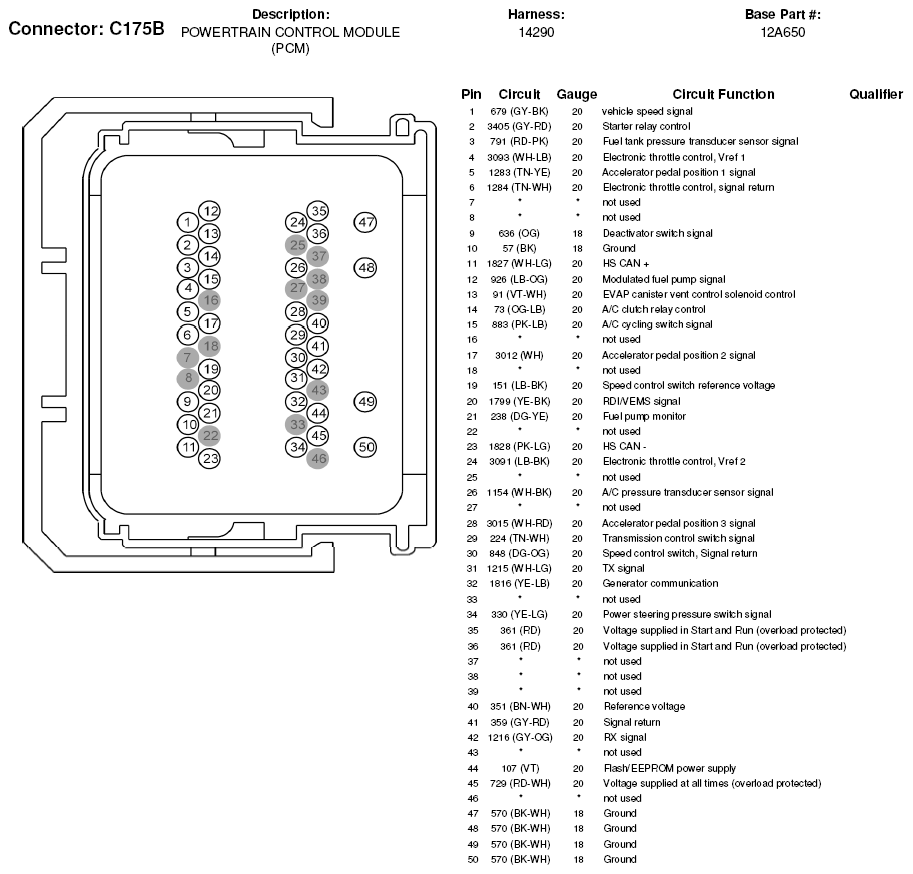

Fig 1: Powertrain Control Module Connector End View (C175B)
G05169698Courtesy of FORD MOTOR CO.

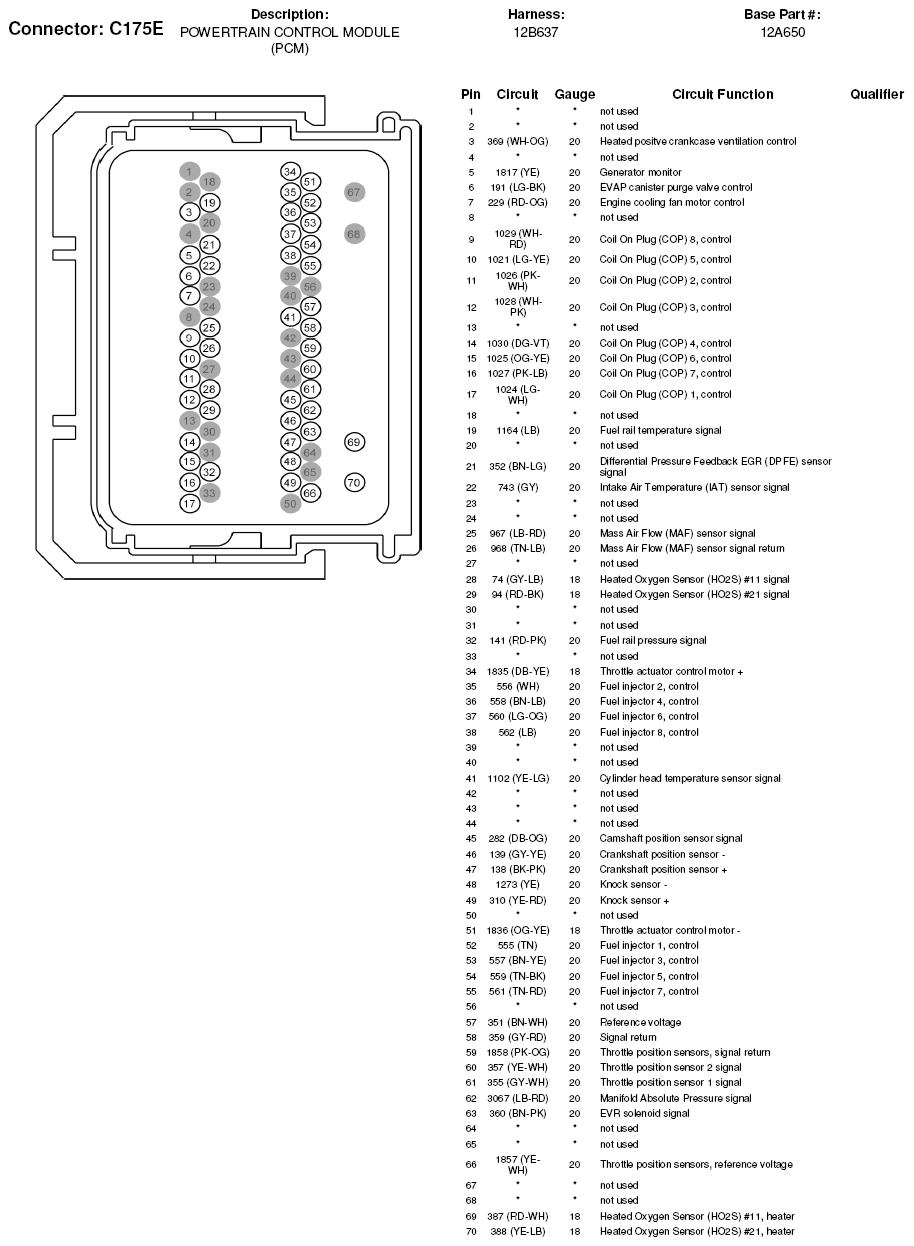

Fig 2: Powertrain Control Module Connector End View (C175E)
G05169699Courtesy of FORD MOTOR CO.

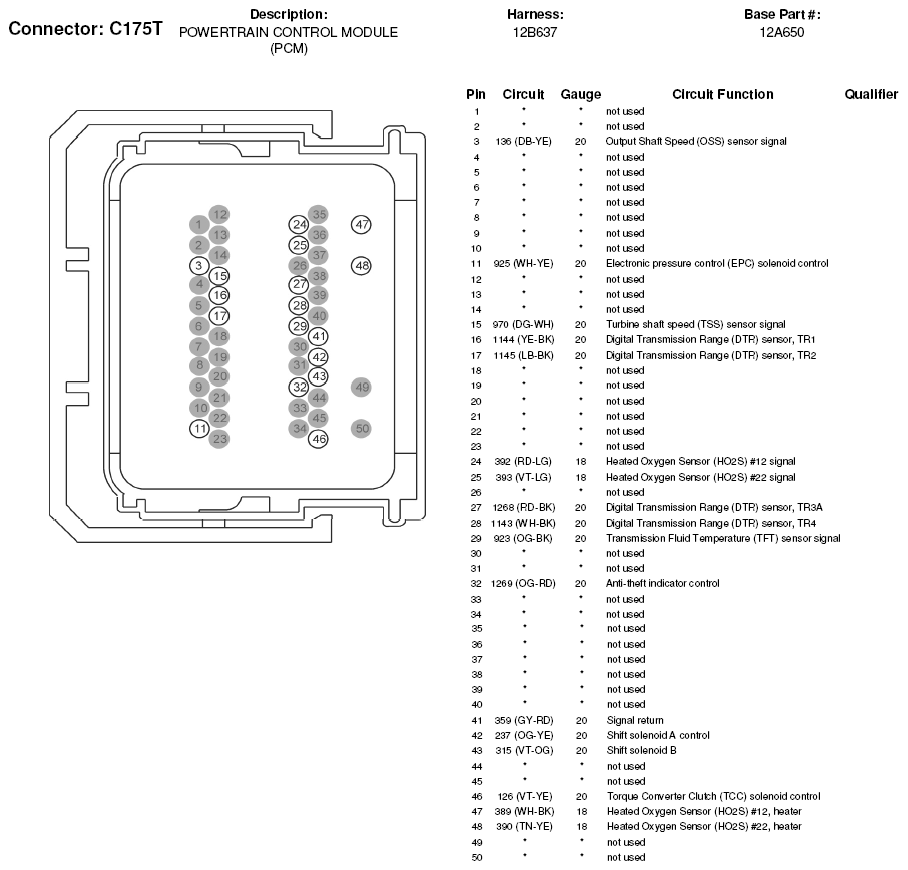

Fig 3: Powertrain Control Module Connector End View (C175T)
G05169700Courtesy of FORD MOTOR CO.
