Audio Control Unit /Navigation Control Unit Connector

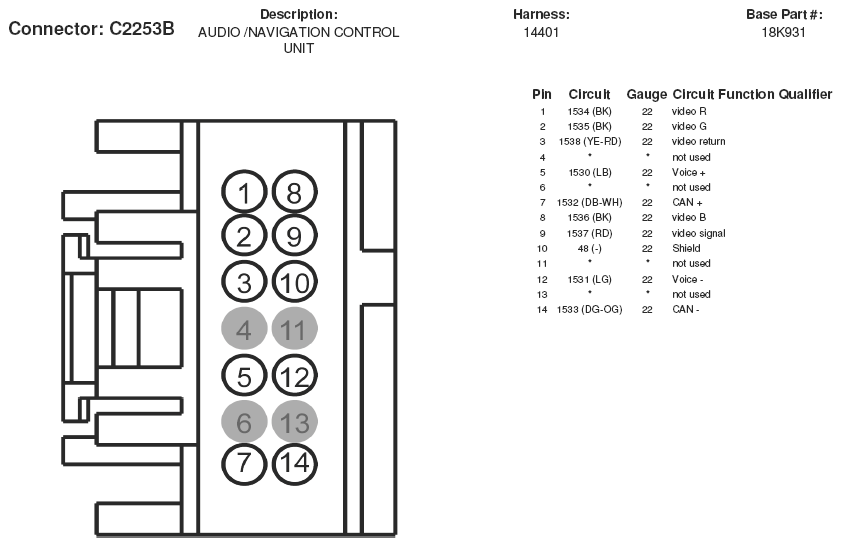

Fig 1: Audio Control Unit /Navigation Control Unit Connector End View (C2253B)
G05169942Courtesy of FORD MOTOR CO.

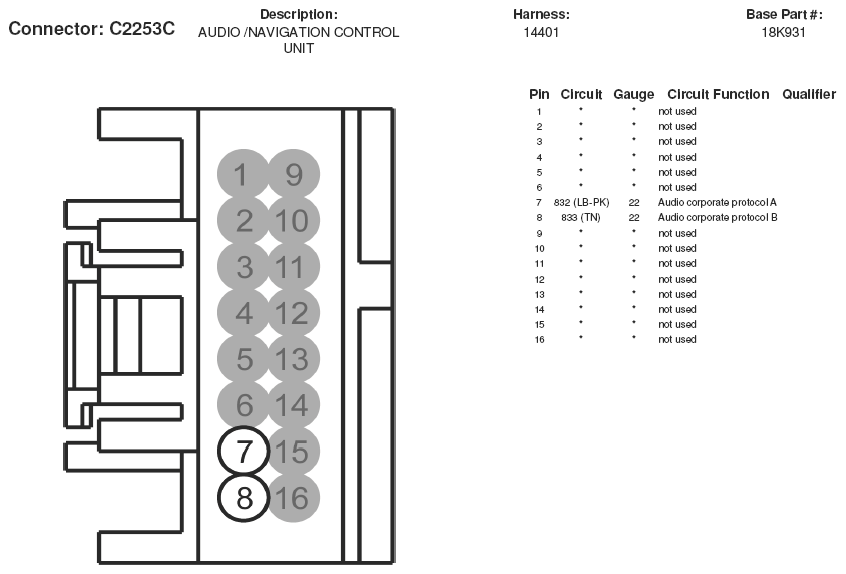

Fig 2: Audio Control Unit /Navigation Control Unit Connector End View (C2253C)
G05169943Courtesy of FORD MOTOR CO.

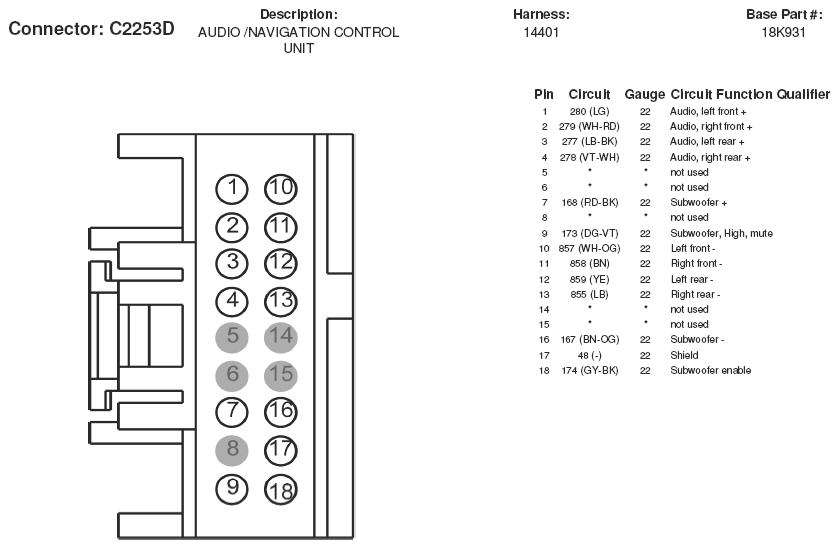

Fig 3: Audio Control Unit /Navigation Control Unit Connector End View (C2253D)
G05169944Courtesy of FORD MOTOR CO.
