Brake Pedal Position Switch Connector

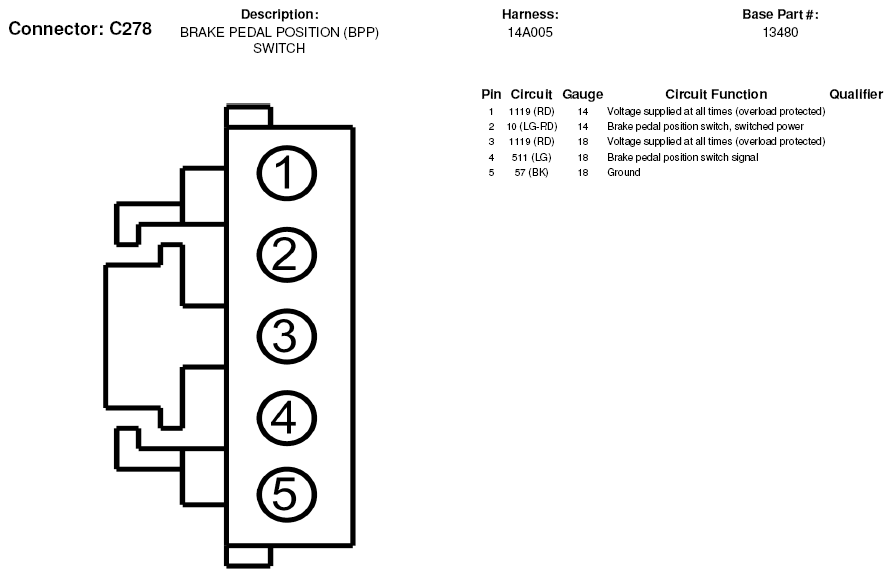

Fig 1: Brake Pedal Position Switch Connector End View (C278)

G05179136

Courtesy of FORD MOTOR CO.
