Safety Belt Retractor and Pretensioner: Notes

NOTE: Late build D-ring cover shown, early build similar.

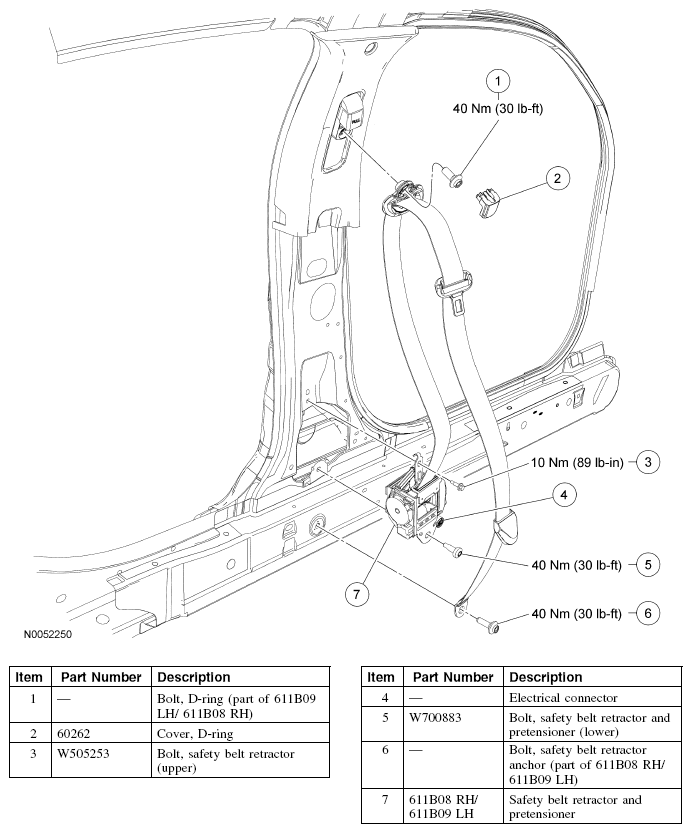

Fig 1: Safety Belt Retractor And Pretensioner Replacement Components With Torque Specifications
G04683818Courtesy of FORD MOTOR CO.
