Safety Belt Retractor - Rear, Center: Notes

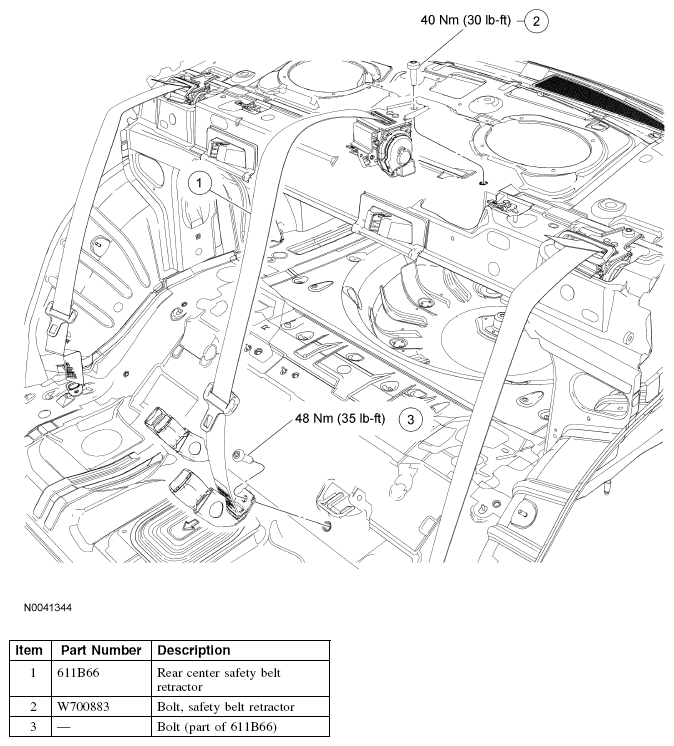

Fig 1: Safety Belt Retractor -- Rear, Center Replacement Components With Torque Specifications

G04683819

Courtesy of FORD MOTOR CO.
