Town Car Protection Series, 4.6 W
>>
Repair and Diagnosis
>>
Body & Frame
>>
Seats
>>
Seating
>>
Disassembly And Assembly
>>
Seat Backrest - Front
>>
Notes
Seat Backrest - Front: Notes
NOTE:
Driver seat shown, passenger seat similar.

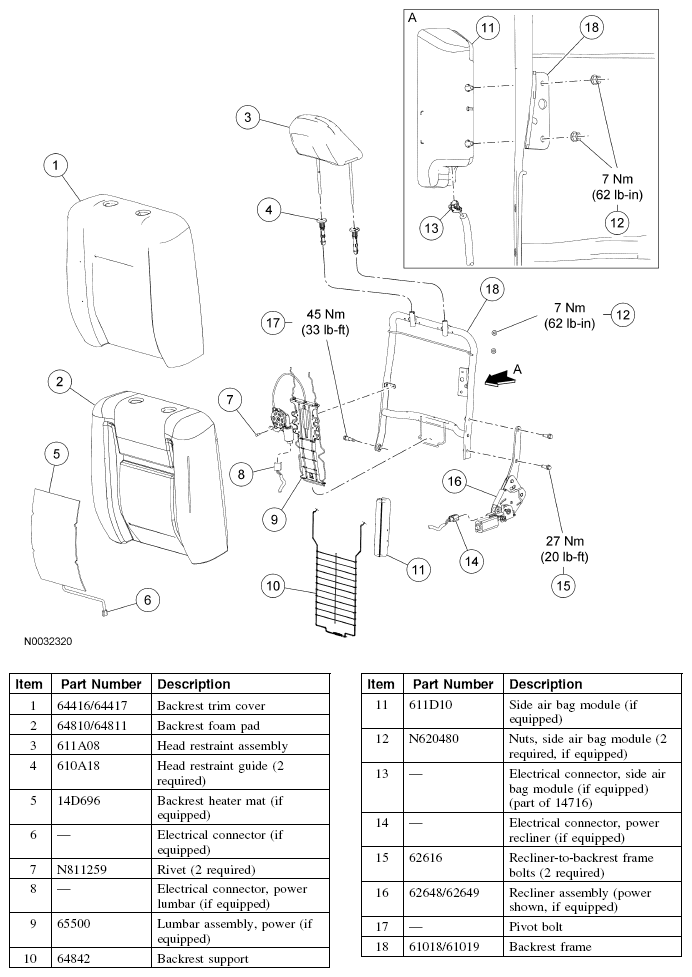

Fig 1: Seat Backrest - Front Replacement Components With Torque Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
