Seat - Third Row: Notes

NOTE: 60 percent seat shown, 40 percent seat similar.

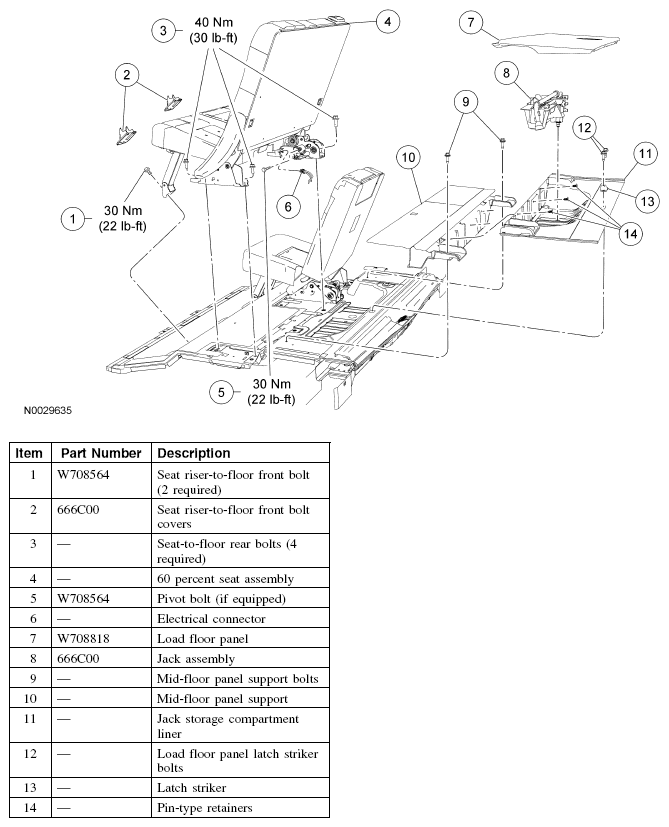

Fig 1: Exploded View Of Seat -- Third Row Replacement Components With Torque Specifications
G04630779Courtesy of FORD MOTOR CO.
