Seat Backrest - Front, 40 Percent: Notes

NOTE: Driver backrest shown, passenger similar.

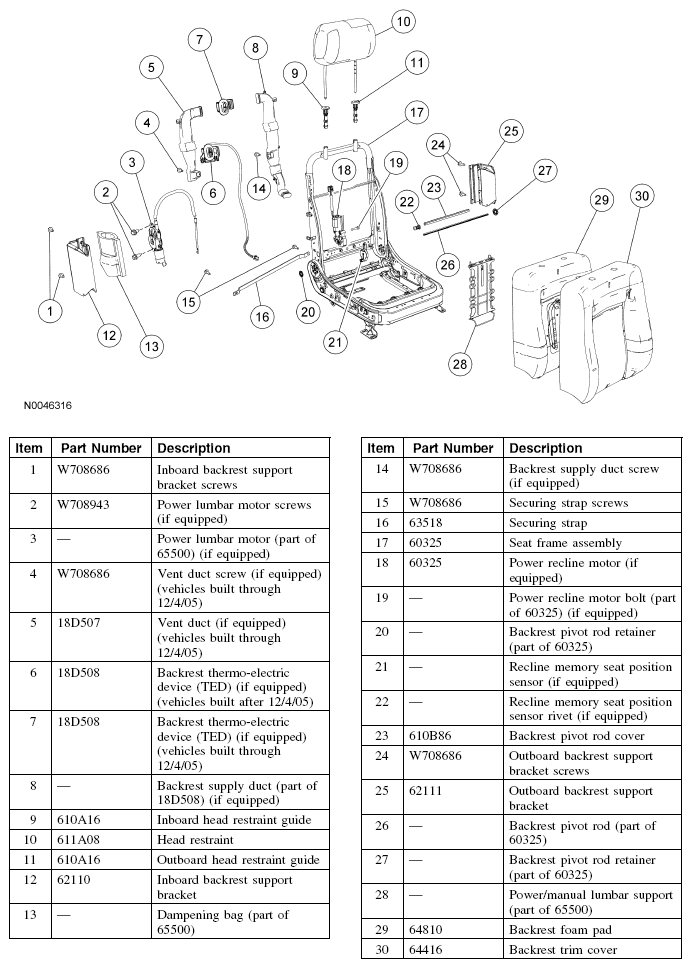

Fig 1: Identifying Exploded View Of Seat Backrest Components - Front, 40 Percent

G04630792

Courtesy of FORD MOTOR CO.
