Heater Hose: Notes

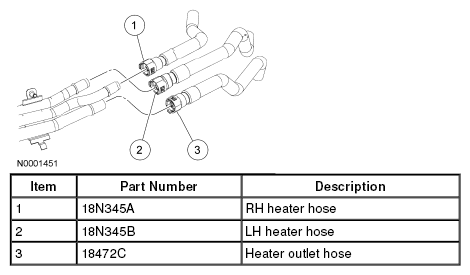

Fig 1: Heater Hose Replacement Components With Torque Specifications (Items 1--3)

G04692149

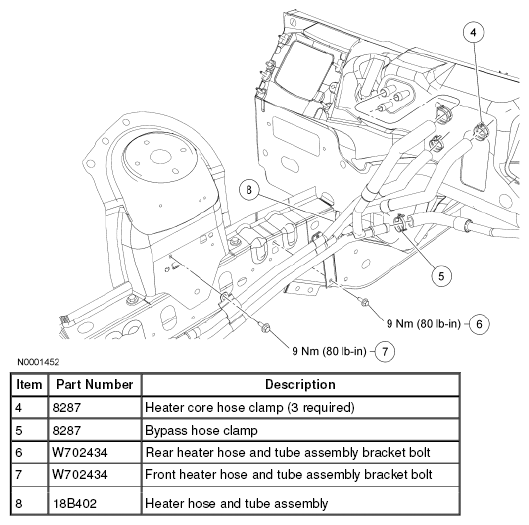

Fig 2: Heater Hose Replacement Components With Torque Specifications (Items 4--8)

G04692150
