Door Window Glass Adjustment

Remove the front door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Partially lower the front door window glass.

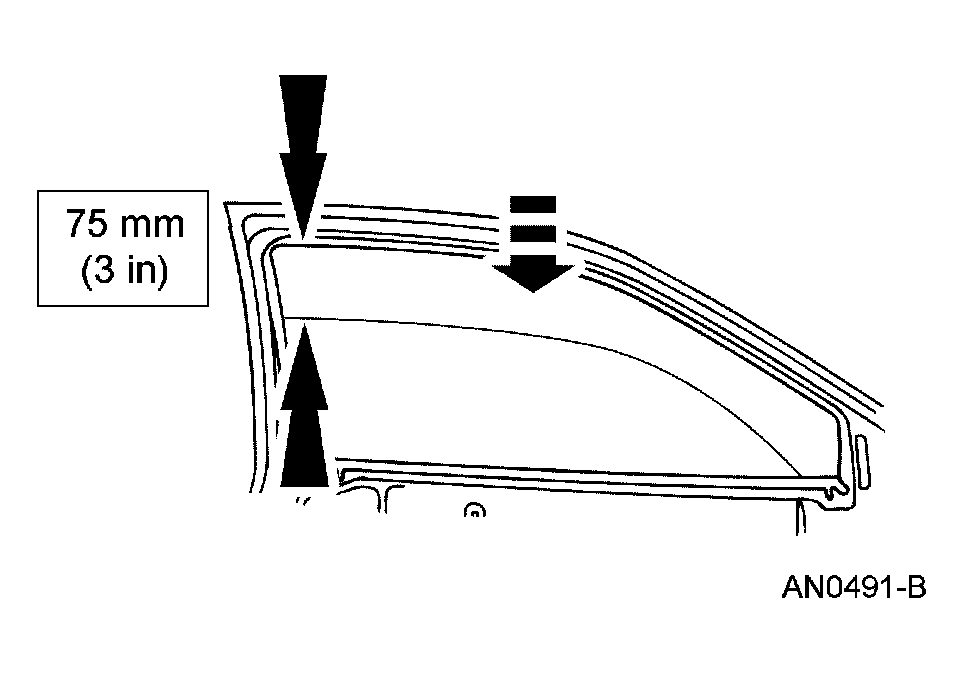

Fig 1: Lower Front Door Window Glass
Courtesy of FORD MOTOR CO.
Loosen the top regulator nuts.

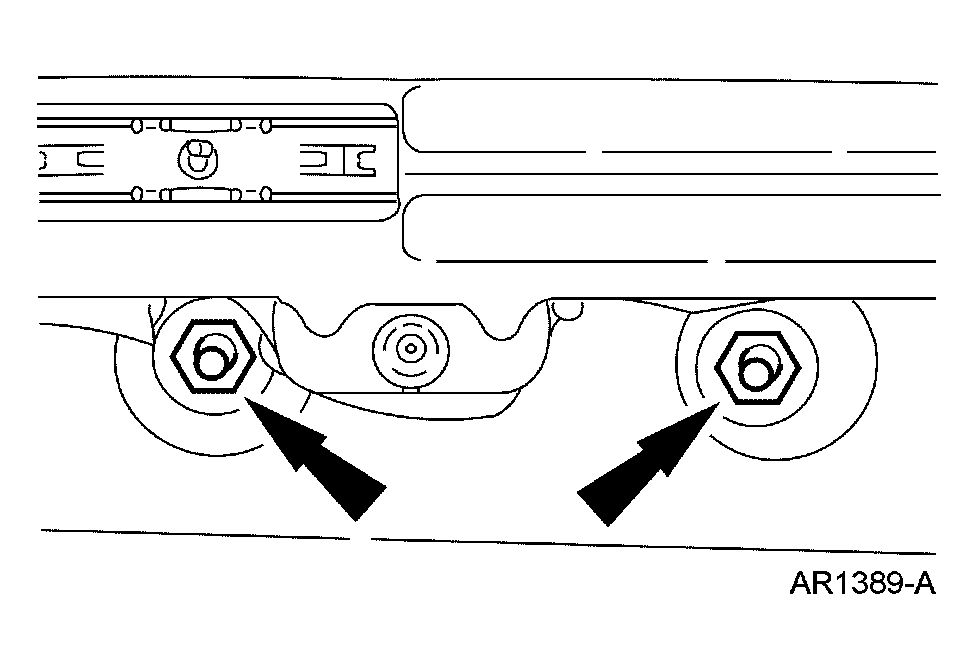

Fig 2: Loosening Top Regulator Nuts
Courtesy of FORD MOTOR CO.
Fully raise the door window glass.

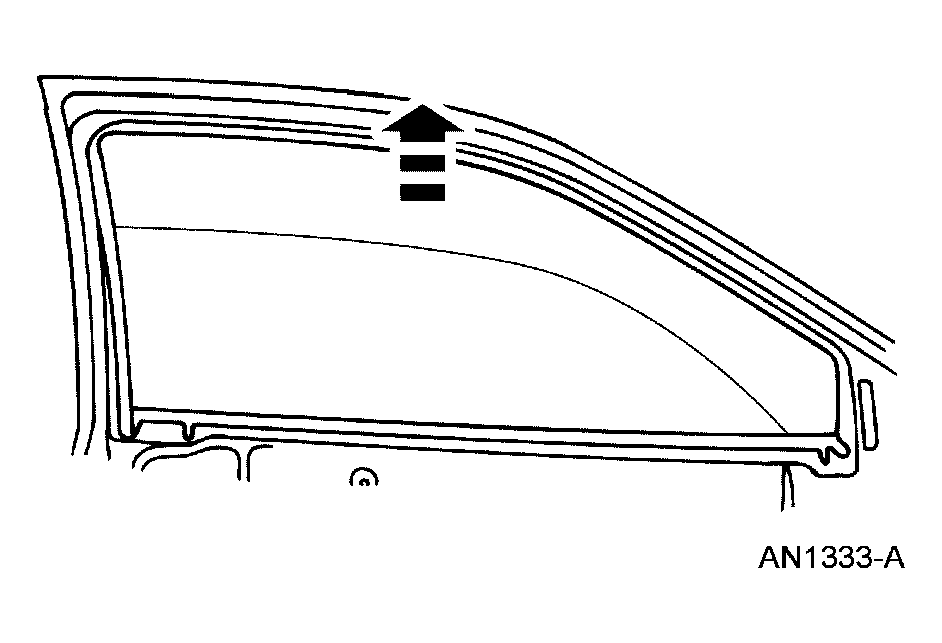

Fig 3: Raising Door Window Glass
Courtesy of FORD MOTOR CO.
Tighten the nuts.

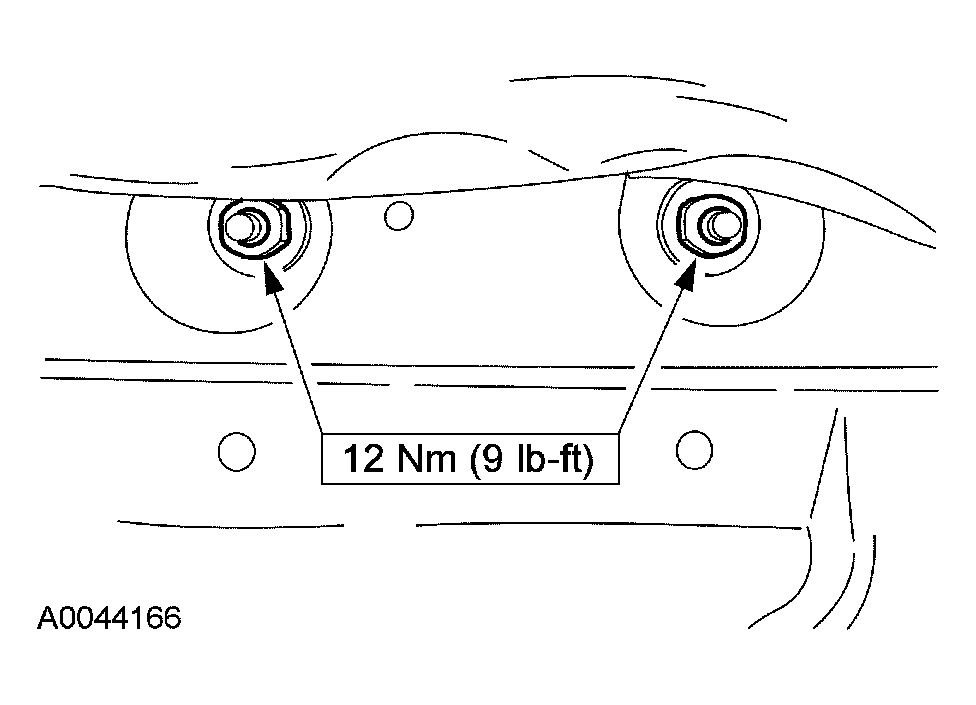

Fig 4: Tightening Nuts - With Torque Specification
Courtesy of FORD MOTOR CO.
Cycle the window regulator electric drive fully to verify normal operation.
Install the front door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
