Removal And Installation: Horn

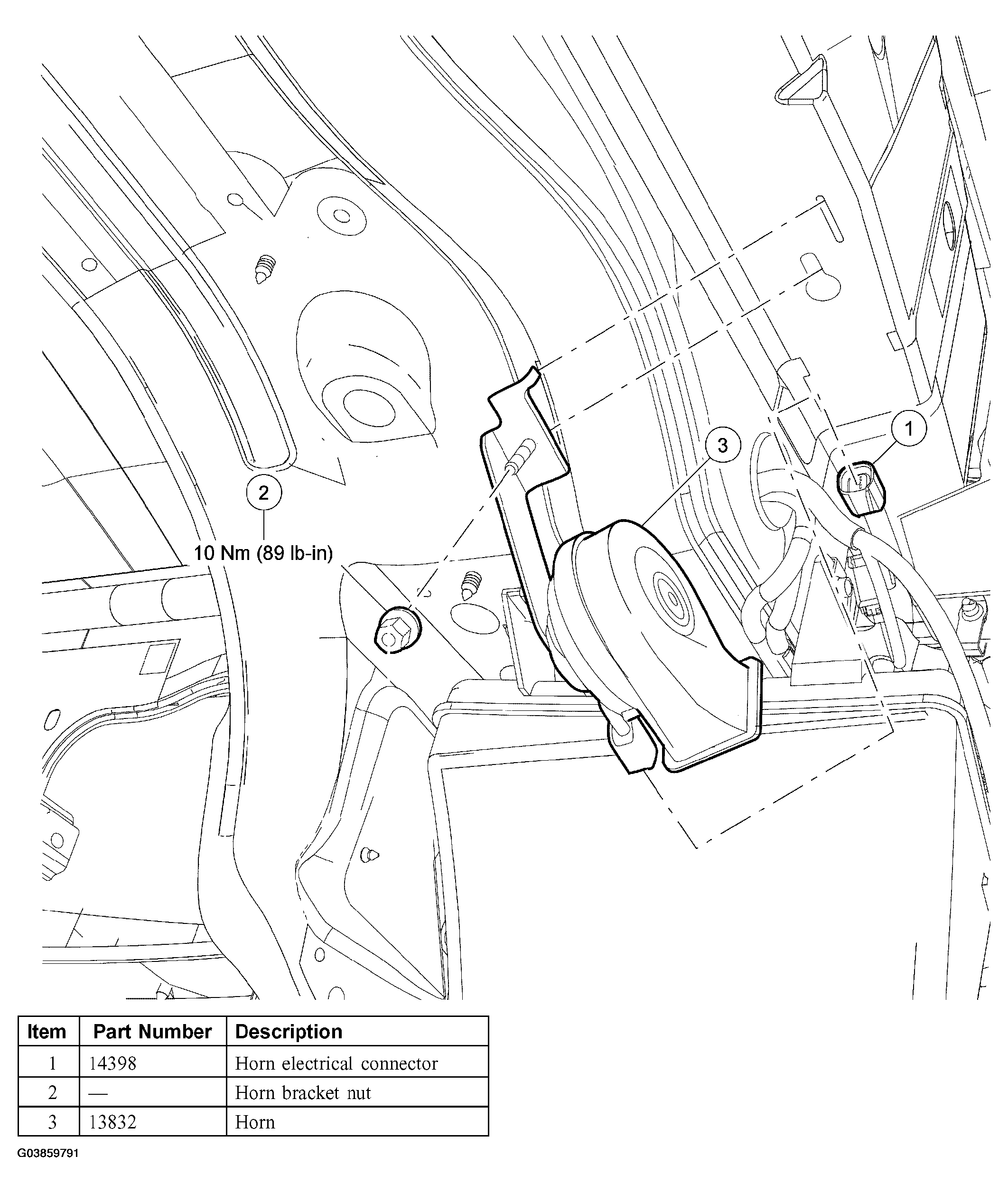

Fig 1: Horn - With Torque Specifications
G03859791Courtesy of FORD MOTOR CO.
  1. Remove the fender splash shield. For additional information, refer to FRONT END BODY PANELS .
    2. NOTE: Right side is shown, left side is similar.
  2. Disconnect the horn electrical connector.
  3. Remove the nut and remove the horn.
    • To install, tighten to 10 Nm (89 lb-in).
  4. To install, reverse the removal procedure.
