Item 1: Transmission Assembly Installation Note

WARNING: Secure the transmission to the transmission jack with a safety chain. Failure to follow these instructions can result in personal injury.

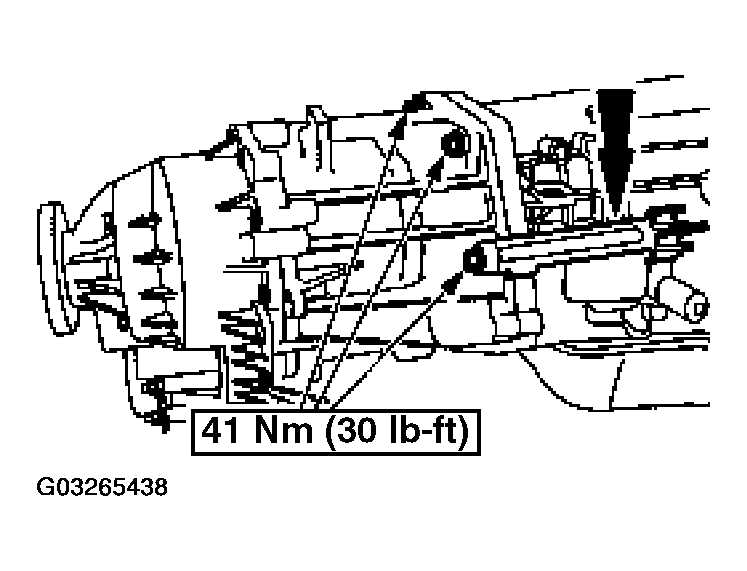

Fig 1: Installing Bracket & Connect Vent Hose

Courtesy of FORD MOTOR CO.

If removed, install the transfer case to the back of the transmission, install the bracket and connect the vent hose.
Install the special tool.

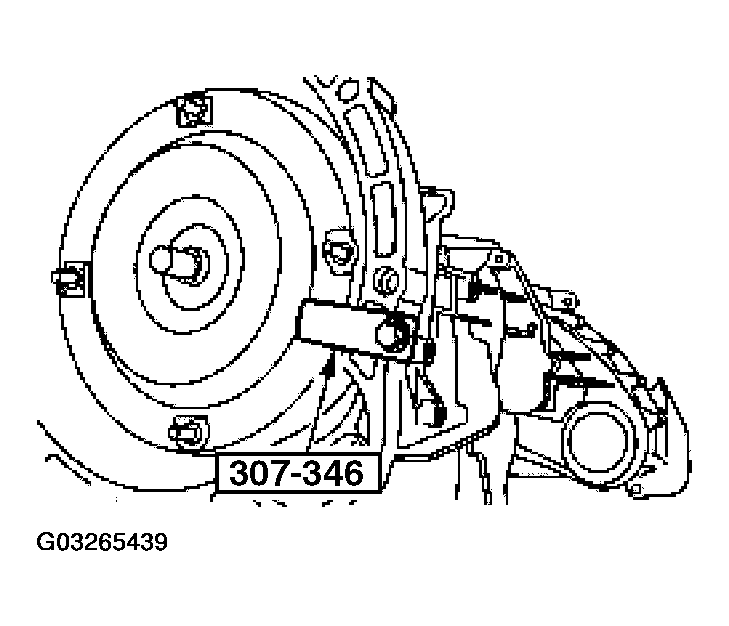

Fig 2: Installing Special Tool
Courtesy of FORD MOTOR CO.

WARNING: Make sure that the transmission and transfer case assembly are secured to the transmission jack with a safety chain. Failure to follow these instructions can result in personal injury.

NOTE: Align the flexplate-to-converter marks made during the removal procedure.

Raise and position the transmission and transfer case to the back of the engine. Remove the special tool prior to attaching the transmission to the engine.
Position the fuel line bracket into place prior to installing the transmission retaining screws.
Install the seven engine-to-transmission retaining bolts.

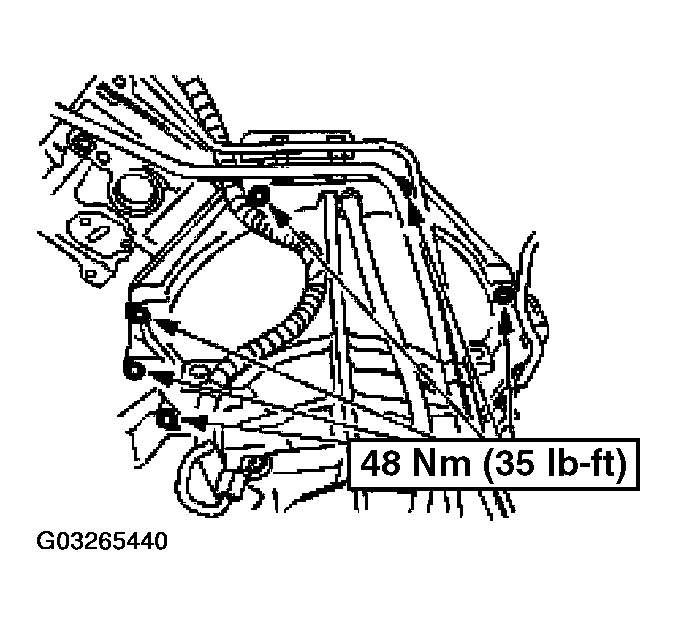

Fig 3: Installing Seven Engine-To-Transmission Retaining Bolts
Courtesy of FORD MOTOR CO.
