Item 1: Seal Ring Assembly Note

    NOTE: Inspect the fluid pump gears for cracks and scoring.

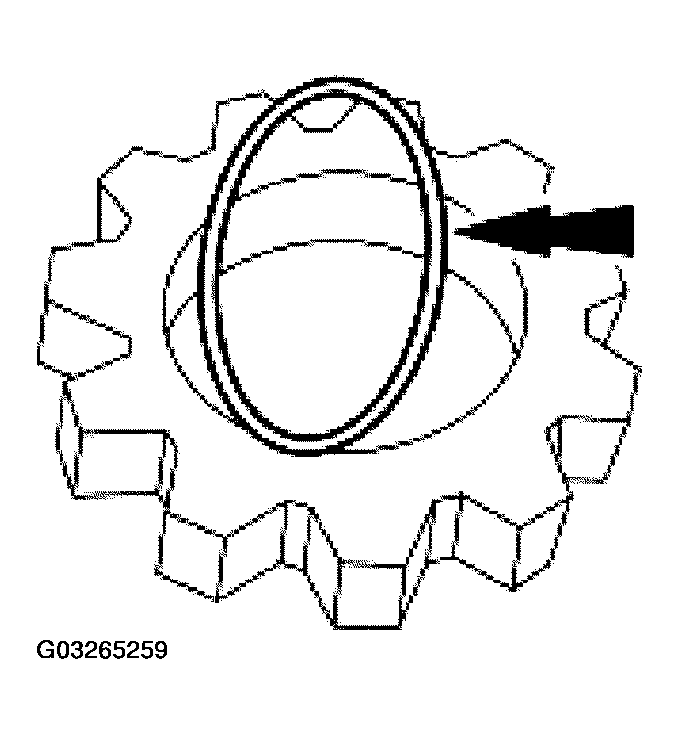

    Fig 1: Installing O-Ring Seal In Fluid Pump Drive Gear
    G03265259Courtesy of FORD MOTOR CO.
  1. Install a new O-ring seal in the fluid pump drive gear.
    2. CAUTION: Lubricate the special tool with multi-purpose grease.

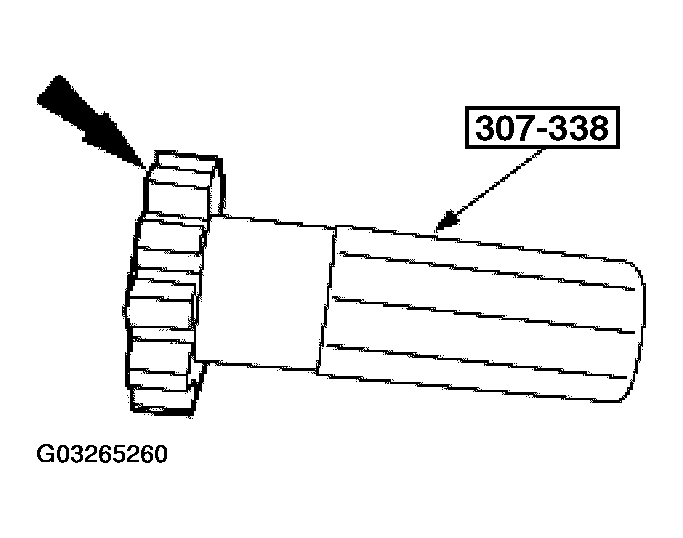

    Fig 2: Seating O-Ring Seal In Pump Gear
    G03265260Courtesy of FORD MOTOR CO.
  2. Using the special tool, seat the O-ring seal in the pump gear.
