Removal & Installation
WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

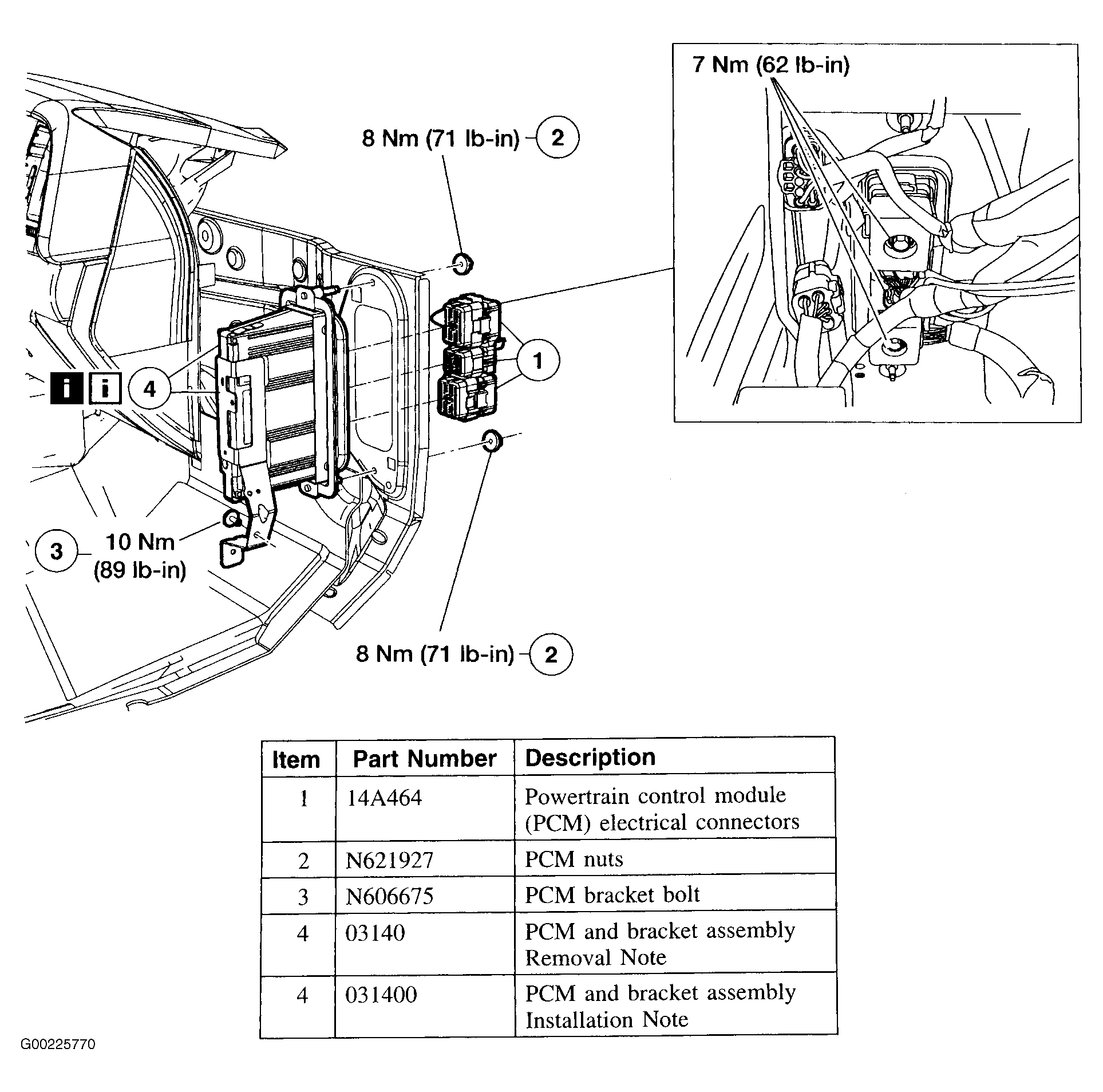

Disconnect negative battery cable. Remove right front door scuff plate. Remove right kick panel. Remove components in the order indicated in the figure. See Fig 1. To install, reverse removal procedure. Tighten fasteners to specification. See TORQUE SPECIFICATIONS .
NOTE:
To identify figure symbols, see Figure.
Removal & Installation Notes
- Item 4: PCM & Bracket Assembly Removal Note
Remove the PCM and bracket as an assembly. - Item 4: PCM & Bracket Assembly Installation Note
Install the PCM and bracket as an assembly.
