Cowl Panel Grille: Notes

    NOTE: The cowl panel grille is held in place by clips.

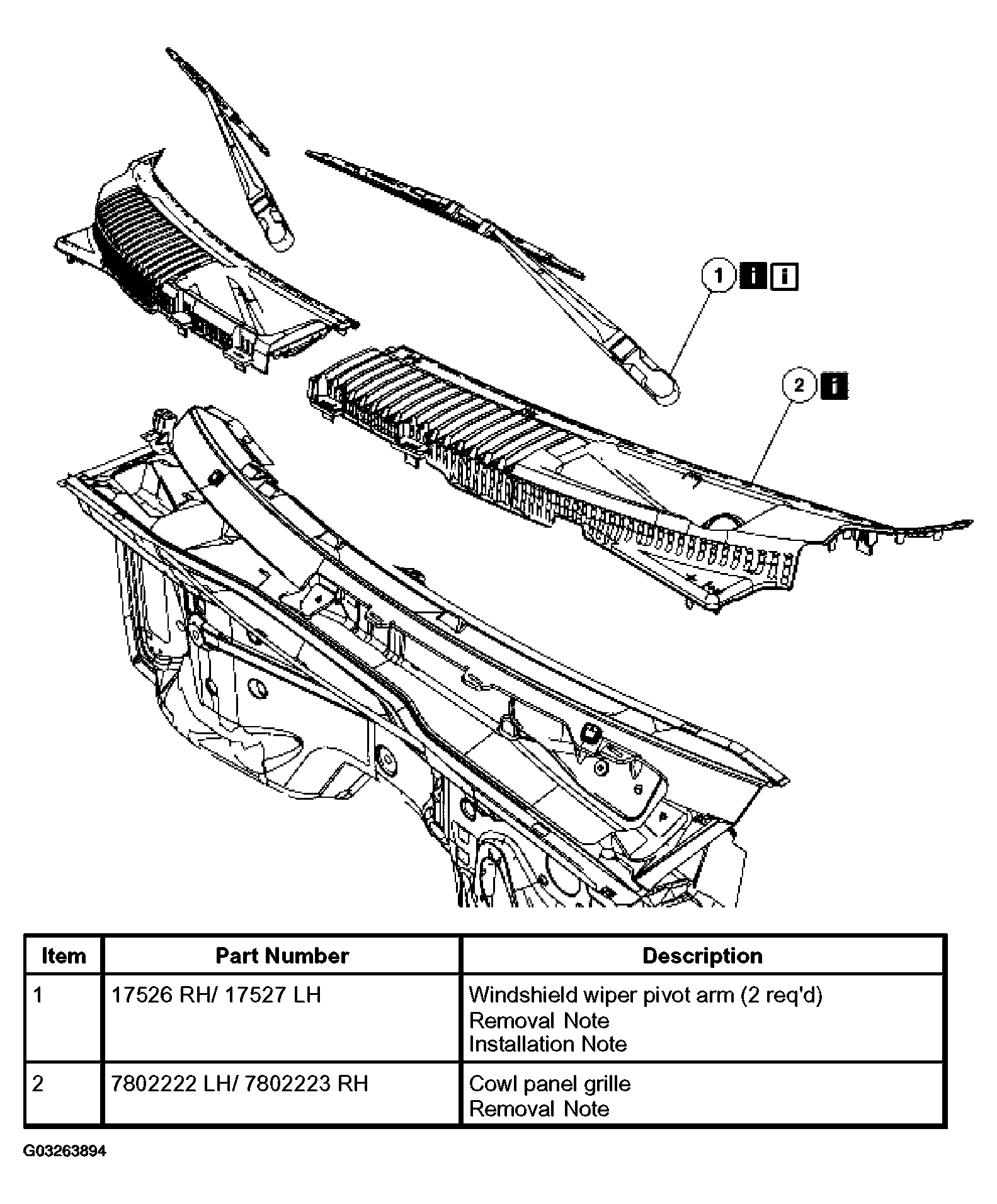

    Fig 1: Removing Cowl Panel Grille
    G03263894Courtesy of FORD MOTOR CO.
  1. Remove the parts in the order indicated in the following illustration and table.
  2. To install, reverse the removal procedure.
