Striker Adjustment

  1. Loosen the door latch striker bolts.

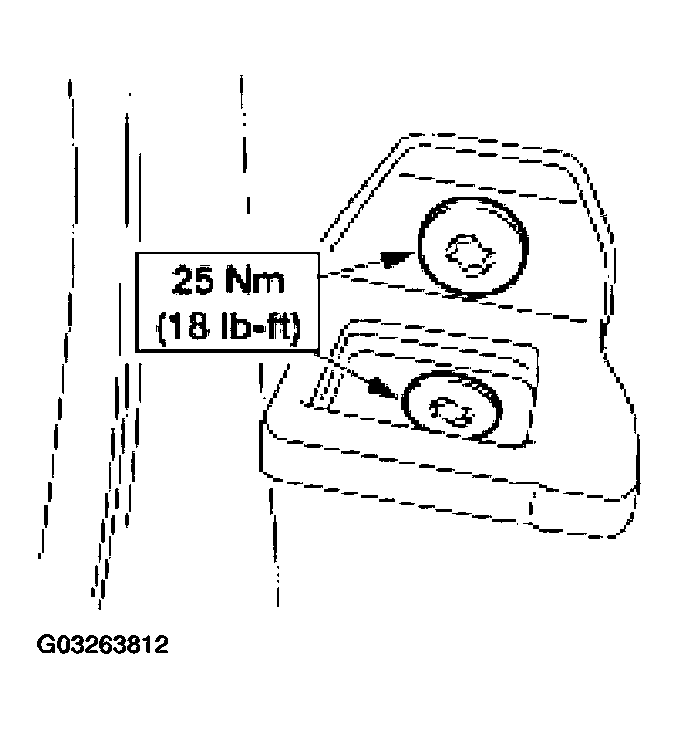

    Fig 1: Loosening Door Latch Striker Bolts
    G03263812Courtesy of FORD MOTOR CO.
  2. Adjust the door latch striker plate from side to side or up and down as necessary.

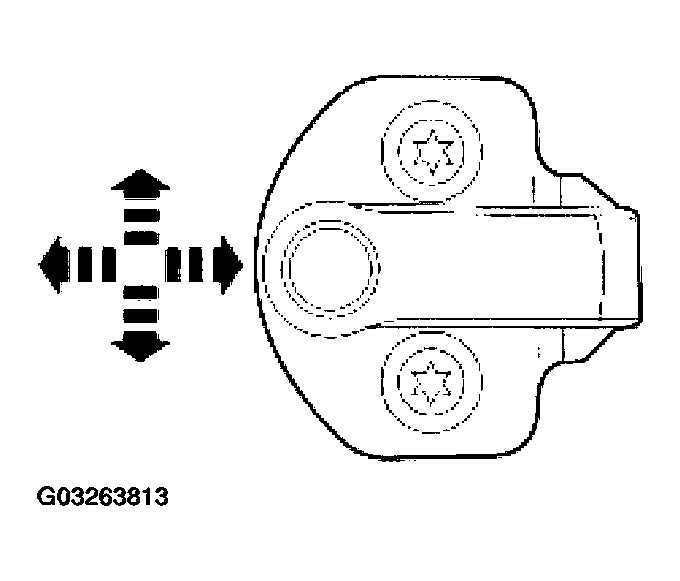

    Fig 2: Adjusting Door Latch Striker Plate From Side To Side Or Up And Down
    G03263813Courtesy of FORD MOTOR CO.
  3. Tighten the door latch striker plate bolts.

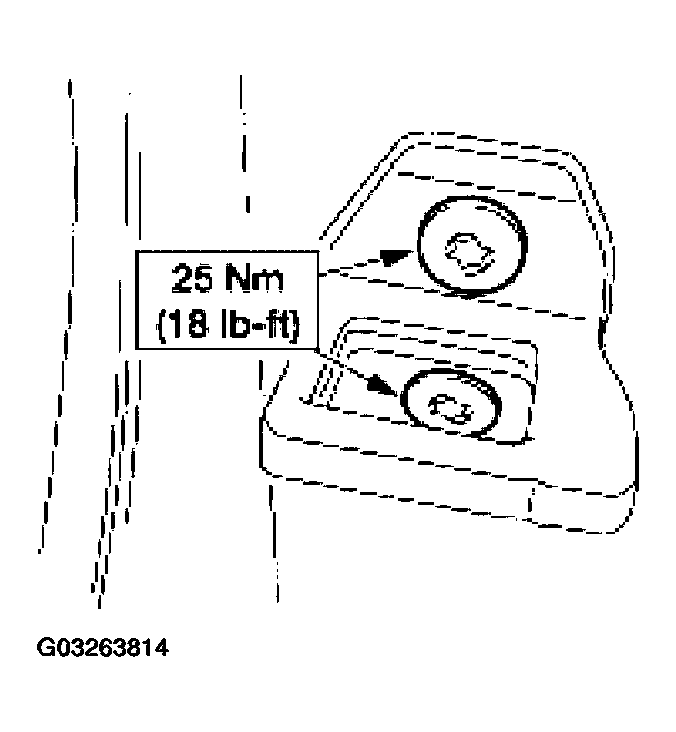

    Fig 3: Tightening Door Latch Striker Plate Bolts
    G03263814Courtesy of FORD MOTOR CO.
