Climate Controlled Seat Switch

  1. Remove the parts in the order indicated in the following illustration and table.

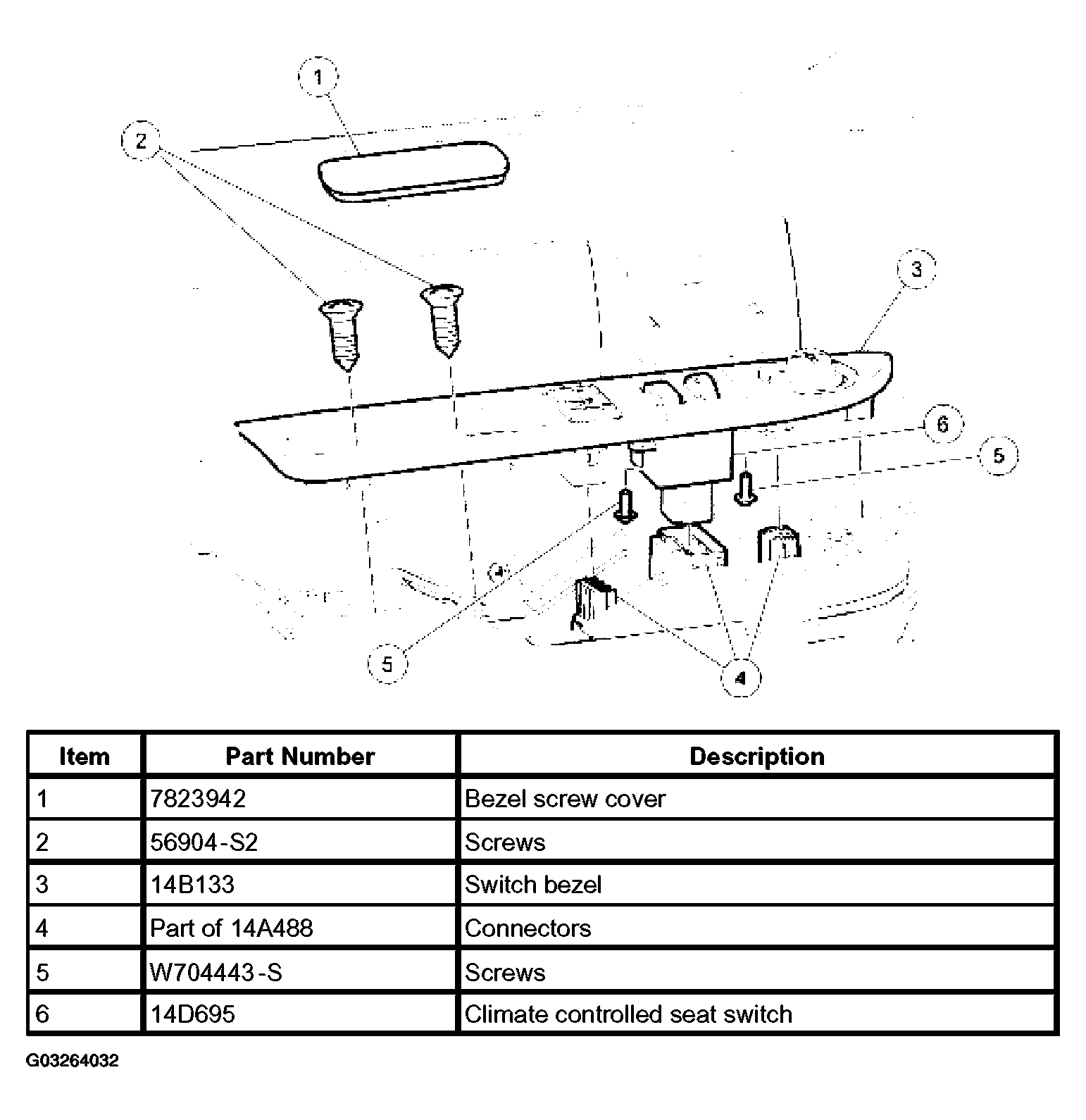

    Fig 1: Removing Climate Controlled Seat Switch
    G03264032Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
