Band and Clutch Application Chart B

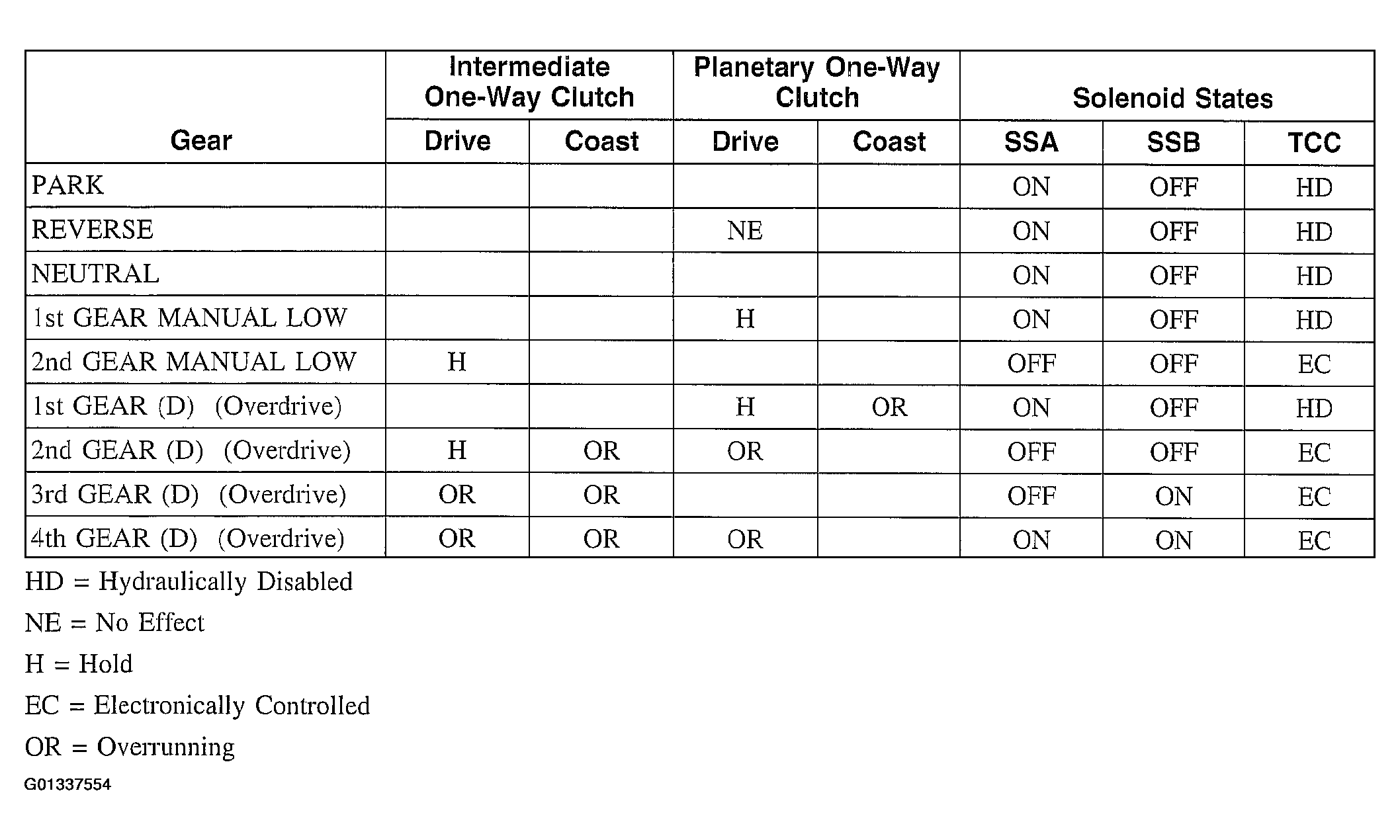

Fig 1: Band and Clutch Application Chart B
G01337554Courtesy of FORD MOTOR CO.
