Door Check Arm: Notes

  1. Remove the door trim panel. For additional information, Refer to BODY SYSTEM - INTERIOR .
  2. Remove the components in the order listed in Fig 1.

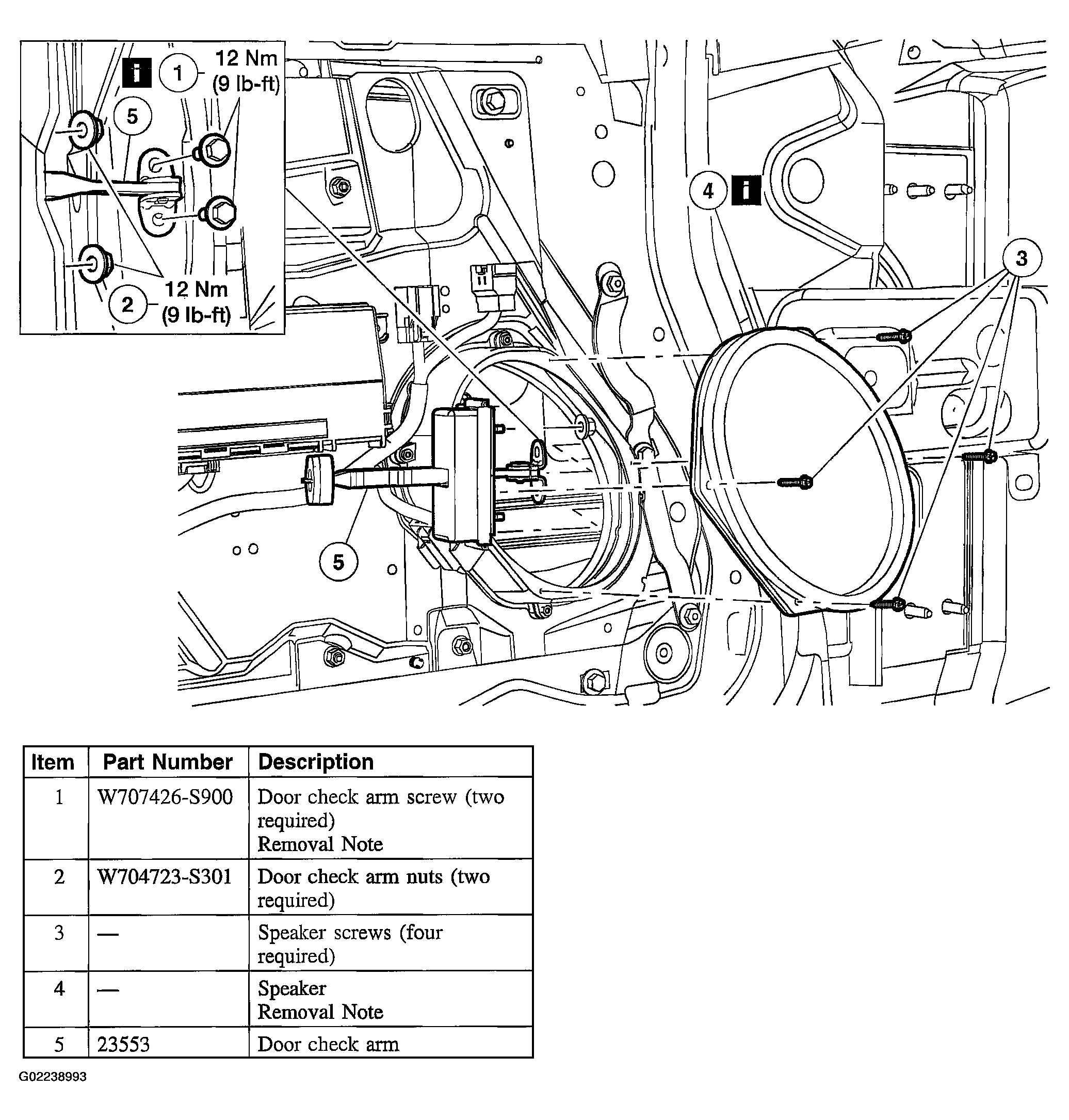

    Fig 1: Identifying Door Check Arm Components And Specifications
    G02238993Courtesy of FORD MOTOR CO.
  3. Install in the reverse order of removal.
