Anti-Lock Brake System (ABS) Module: Removal
WARNING: This page is about a different car, the 2004 Ford Explorer Sport Trac. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .

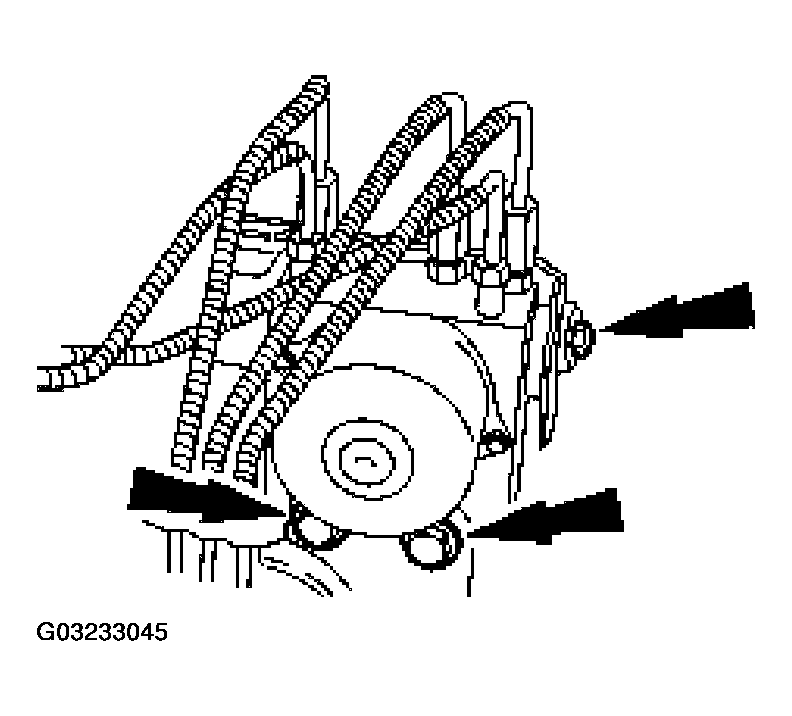

- Remove the hydraulic control unit bolts.

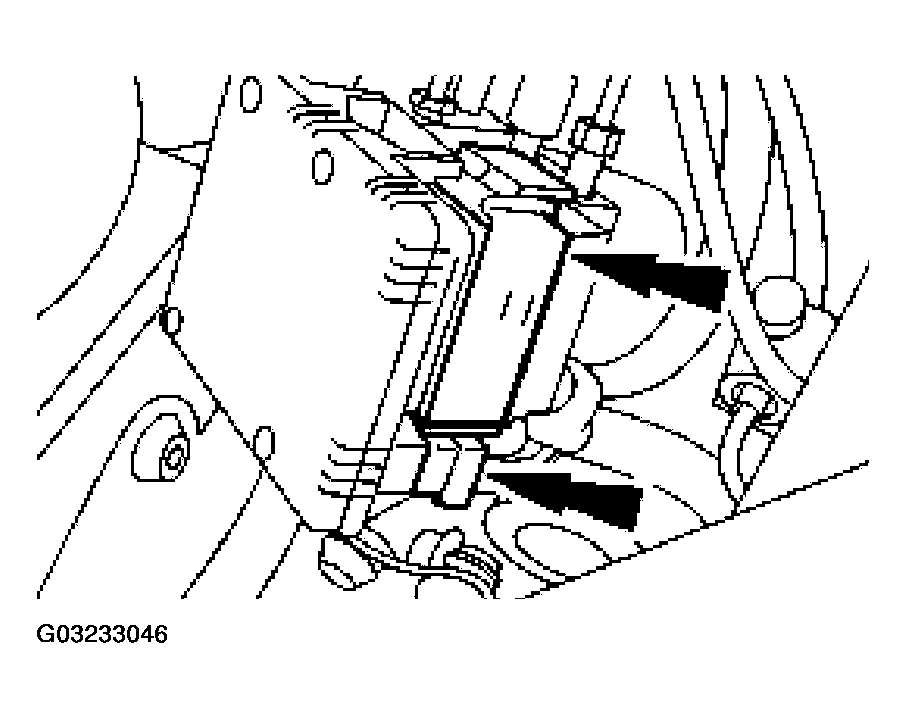

- Disconnect the anti-lock brake control module electrical connectors.
- Remove the anti-lock brake control module.

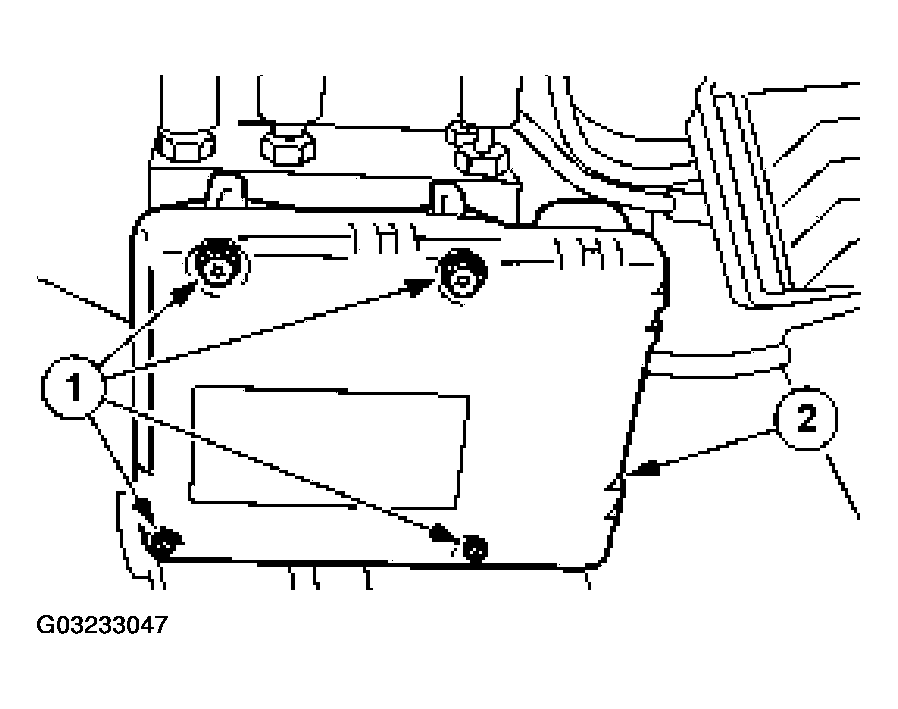

- Remove the bolts.
- Remove the control module.
CAUTION:
Prior to removal of the module, it is necessary to upload module configuration information to the scan tool. This information needs to be downloaded into the new module once installed.
