Adjustable Pedal Indexing

WARNING: This page is about a different car, the 2004 Lincoln Town Car and 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The adjustable pedal system must be indexed whenever the brake pedal assembly or the accelerator pedal assembly is serviced.

Operate the switch until the accelerator pedal aligns with the base position index mark on the accelerator pedal assembly. See Fig 1.
Connect the drive cable to the brake pedal assembly. See Fig 2.
Check that the brake and accelerator pedals can adjust at least 2.0" (50 mm) from the base position. See Fig 3.

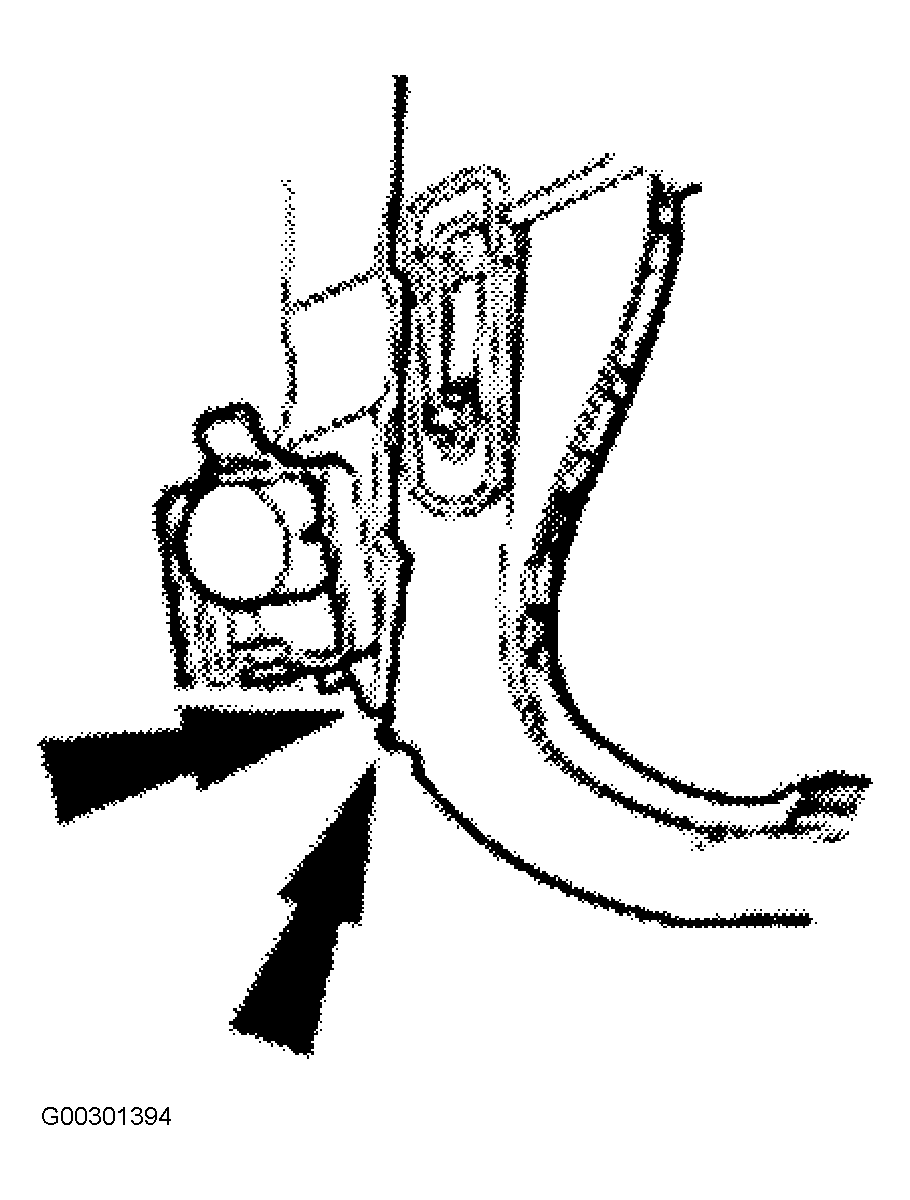

Fig 1: Locating Base Position Index Mark

Courtesy of FORD MOTOR CO.

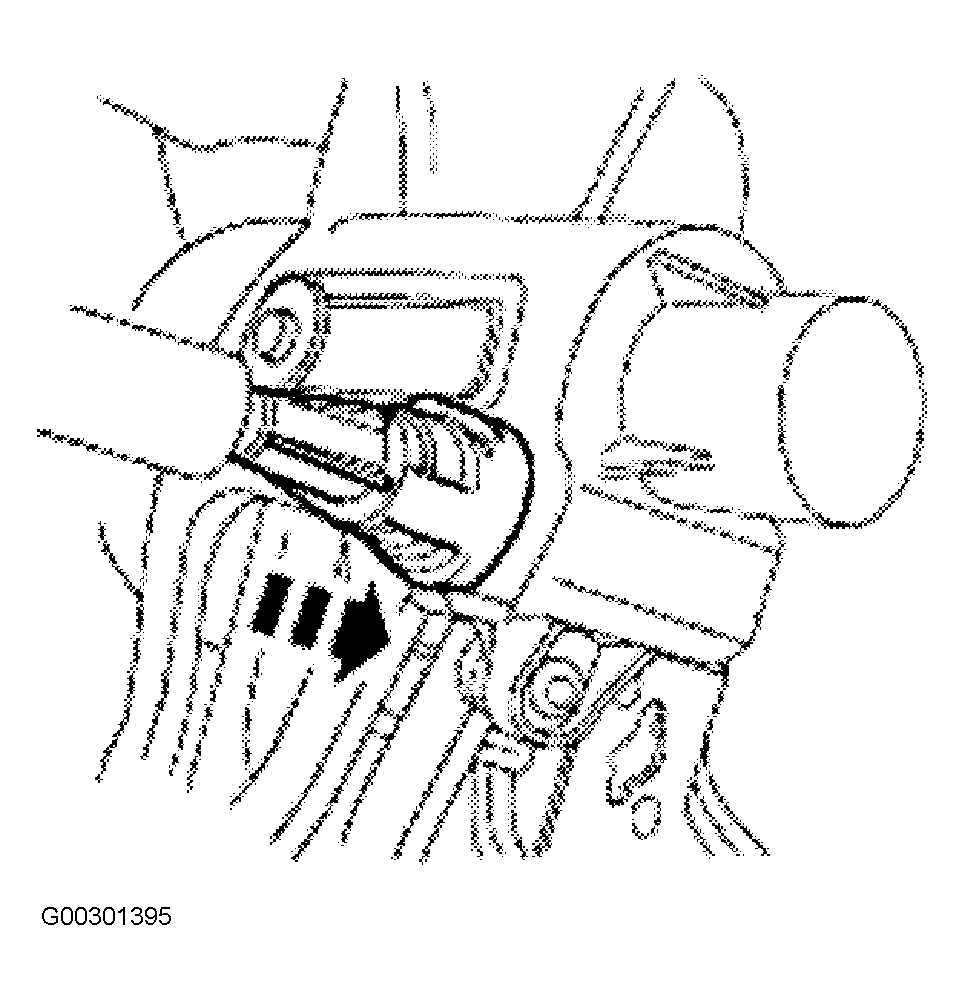

Fig 2: Installing Drive Cable

Courtesy of FORD MOTOR CO.

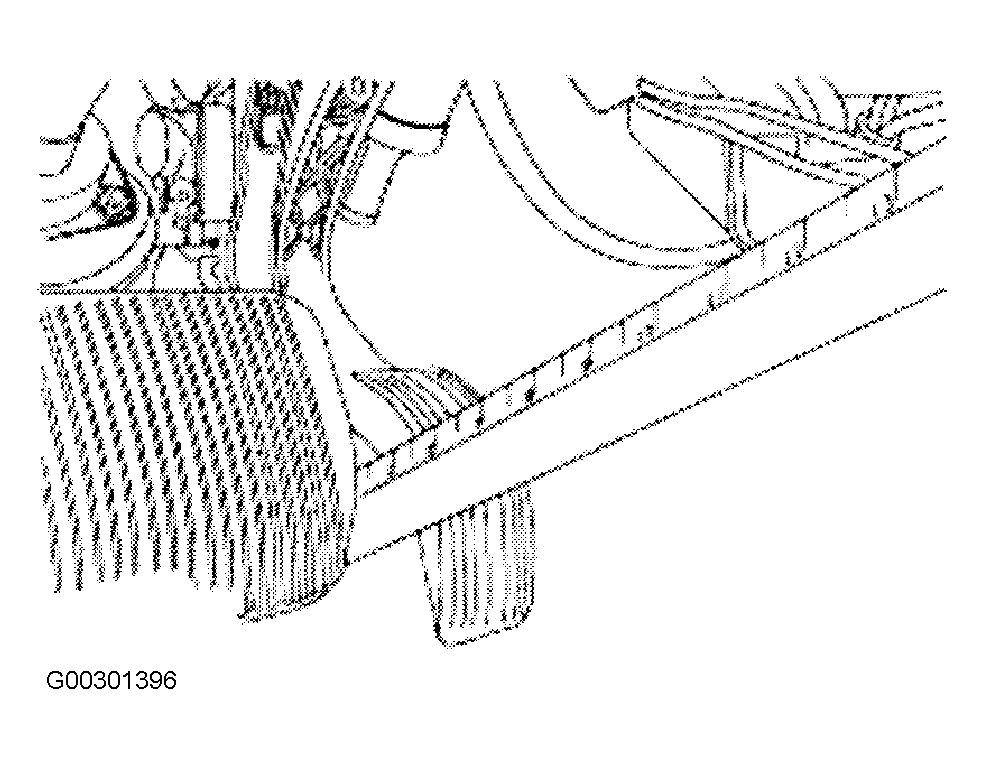

Fig 3: Adjusting Brake Pedal

Courtesy of FORD MOTOR CO.
