Air Suspension Control Module: Removal

WARNING: This page is about a different car, the 2005 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Before carrying out maintenance on any air suspension components, disconnect the power to the system by turning off the air suspension switch located on the LH side of the luggage compartment to prevent vehicle damage or personal injury.
CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage can result.
  1. Turn the air suspension switch off.
  2. Disconnect the battery ground cable (14301).
  3. Pull out the lower instrument panel insulator.
    1. Remove the pushpins.
    2. Pull out the lower instrument panel insulator.
    Fig 1: Removing Lower Instrument Panel Insulator
    G04000986Courtesy of FORD MOTOR CO.
  4. Remove the lower instrument panel insulator.
    1. Disconnect the power point.
    2. Disconnect the courtesy lamp.
    3. Remove the lower instrument panel insulator.
    Fig 2: Removing Lower Instrument Panel Insulator
    G03878381Courtesy of FORD MOTOR CO.
  5. Remove the rear air suspension control module.
    1. Remove the screws.
    2. Disconnect the electrical connectors.
    3. Remove the rear air suspension control module.

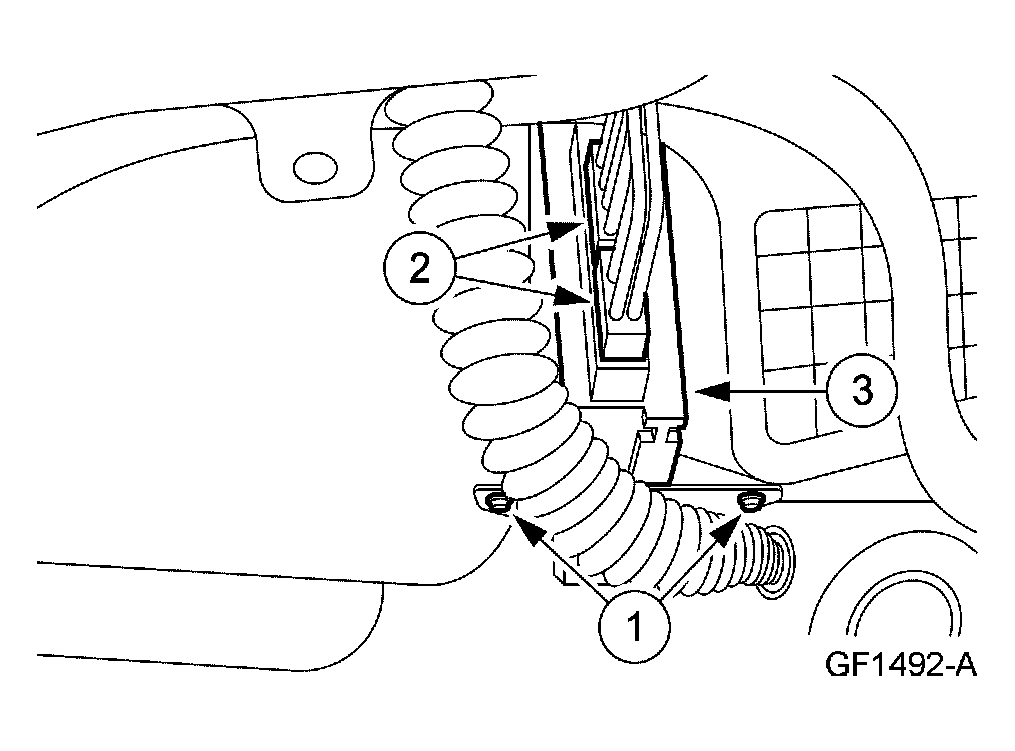

    Fig 3: Removing Rear Air Suspension Control Module
    G03878382Courtesy of FORD MOTOR CO.
