Ignition Switch Lock Cylinder - Functional Lock Cylinder: Removal

  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the ignition switch lock cylinder (11582).
    1. Insert the ignition key and turn to the RUN position.
    2. Press the ignition switch lock cylinder release pin while pulling out the ignition switch lock cylinder.

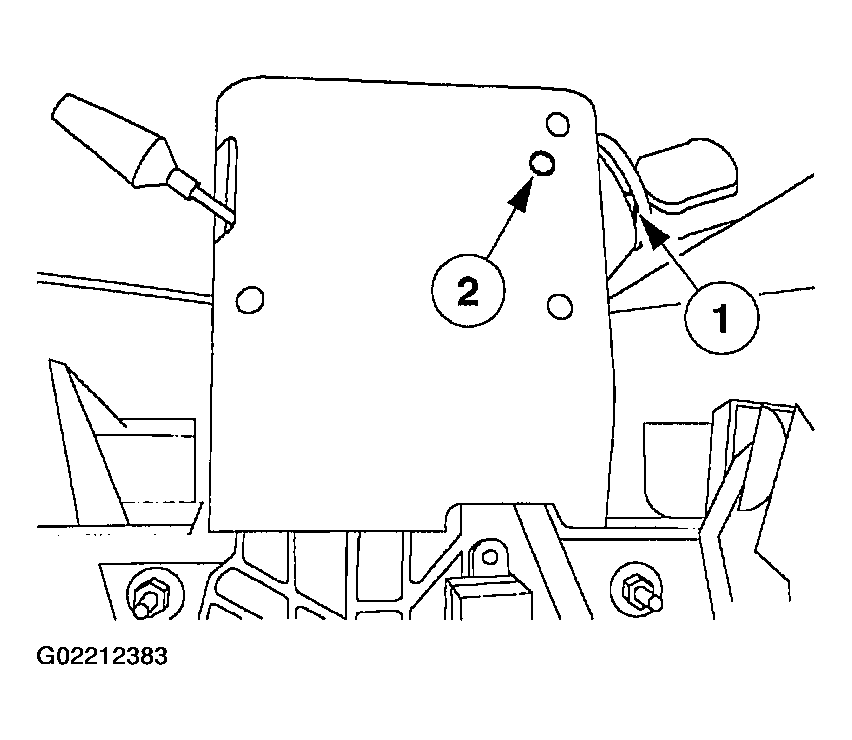

    Fig 1: Removing Ignition Switch Lock Cylinder (11582)
    G02212383Courtesy of FORD MOTOR CO.
