Removal And Installation: Hose: Installation

  1. When connecting a fitting with a seal ring, the ring must be replaced.
    • The Seal Replacer is used to install the return line connector seal and the pressure line connector seal.

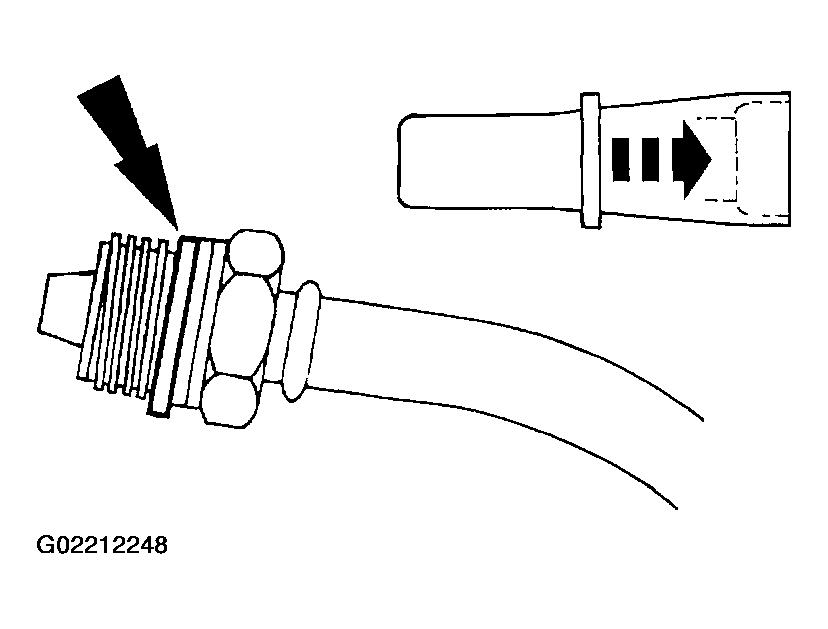

    Fig 1: Connecting A Fitting With A Seal Ring
    G02212248Courtesy of FORD MOTOR CO.
  2. Fill and leak check the system; for additional information, refer to STEERING SYSTEM - GENERAL INFORMATION .
