Main Light Switch
Main Light Switch

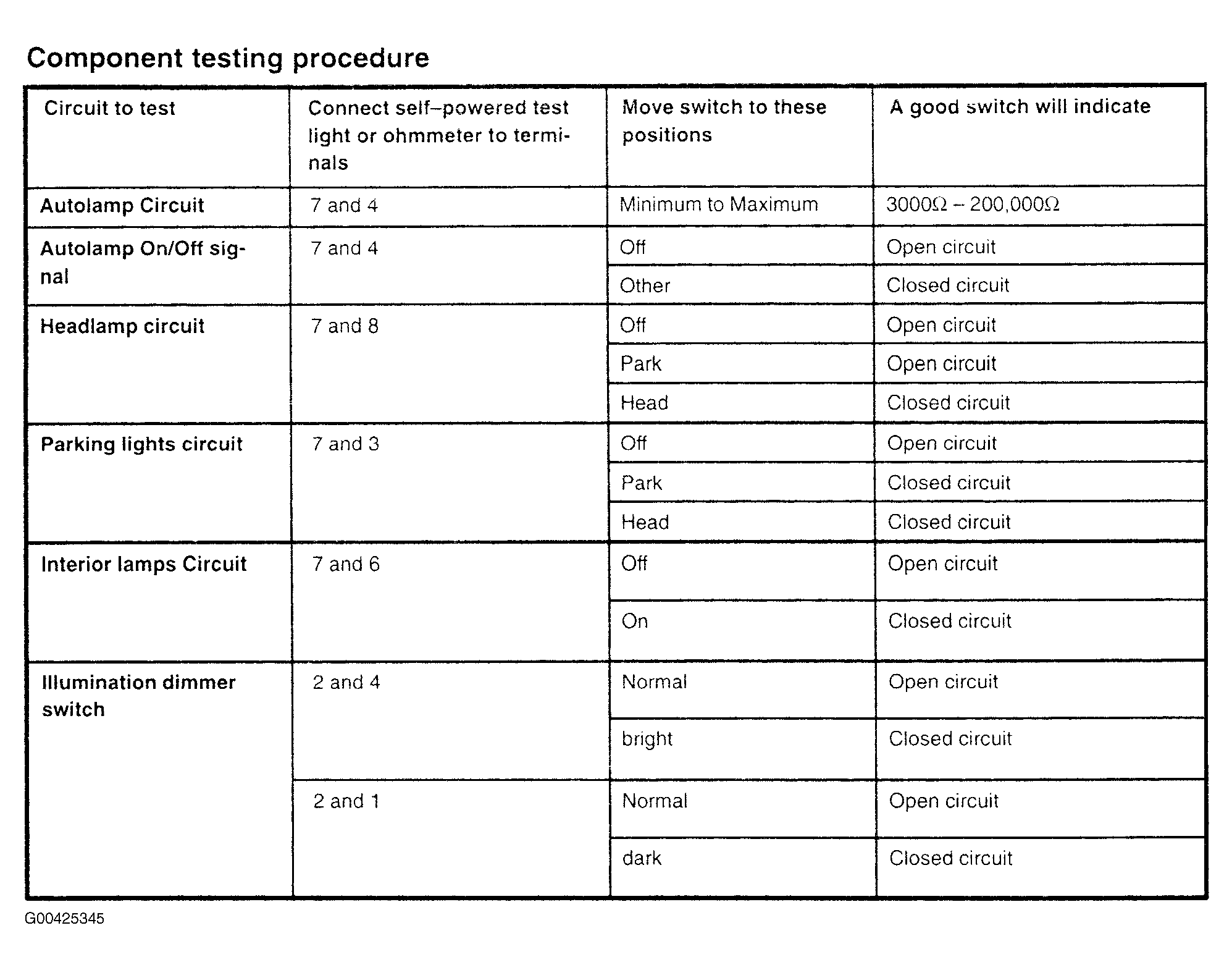

Fig 1: Testing Main Light Switch (1 of 2)
Courtesy of FORD MOTOR CO.

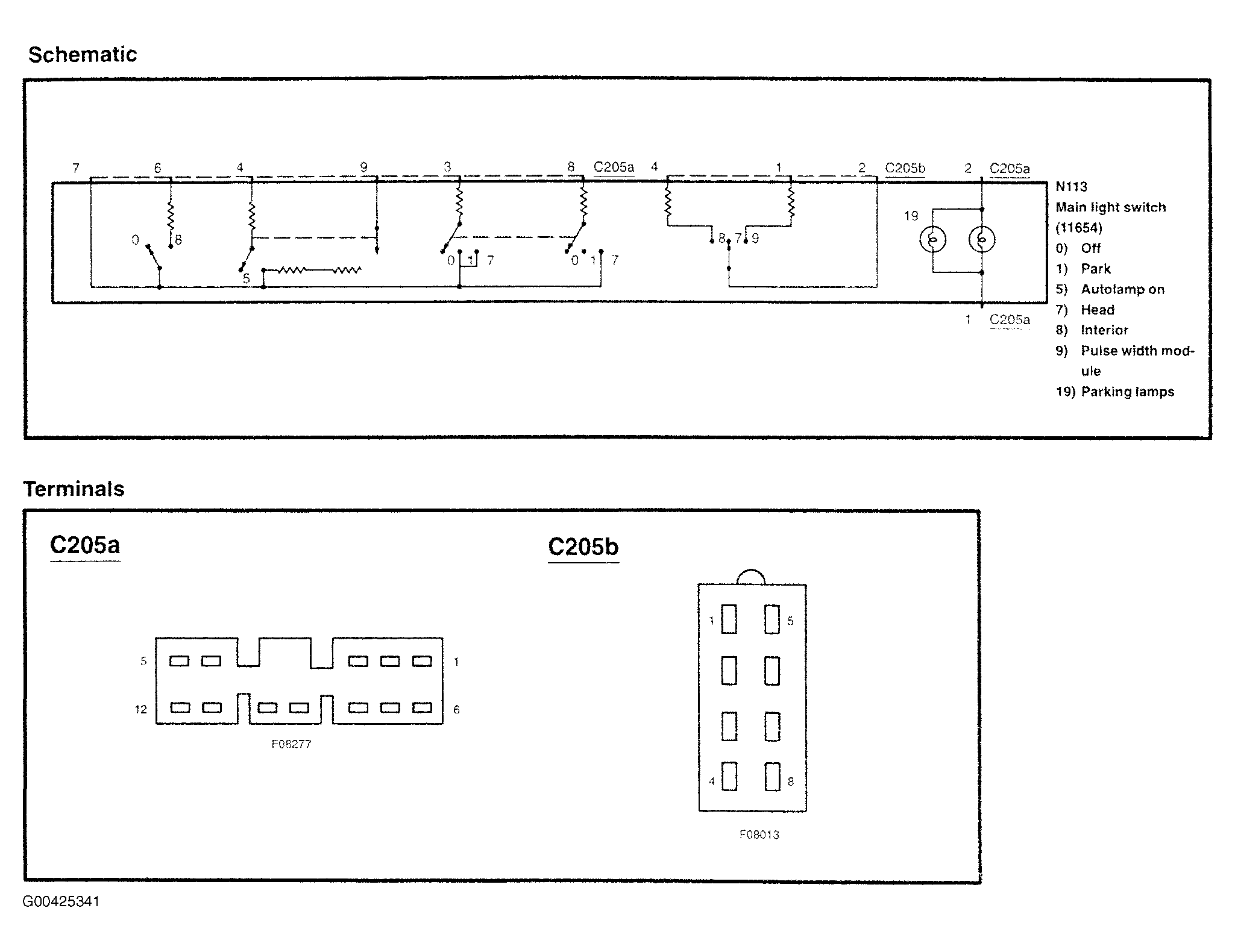

Fig 2: Testing Main Light Switch (2 of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
