Exhaust Manifold - Inspection: Procedure

  1. Place a straight edge across the exhaust manifold flanges and check for warping with a feeler gauge.

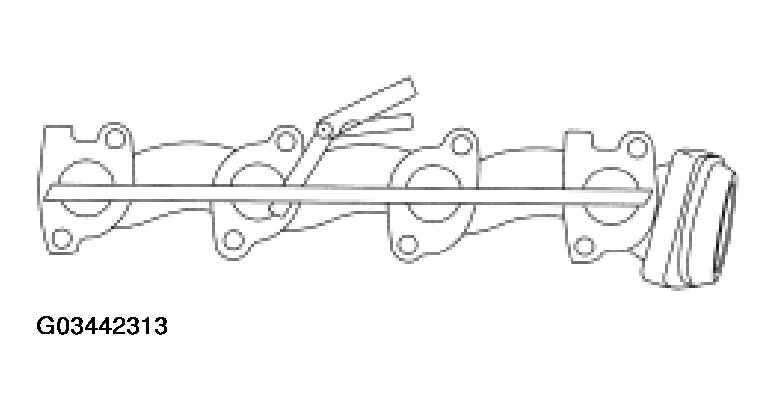

    Fig 1: Checking For Warping Of Exhaust Manifold Flanges
    G03442313Courtesy of FORD MOTOR CO.
