Removal and Installation

Raise and support the vehicle. For additional information, see JACKING & HOISTING .
Disconnect the rear anti-lock brake sensor electrical connector.

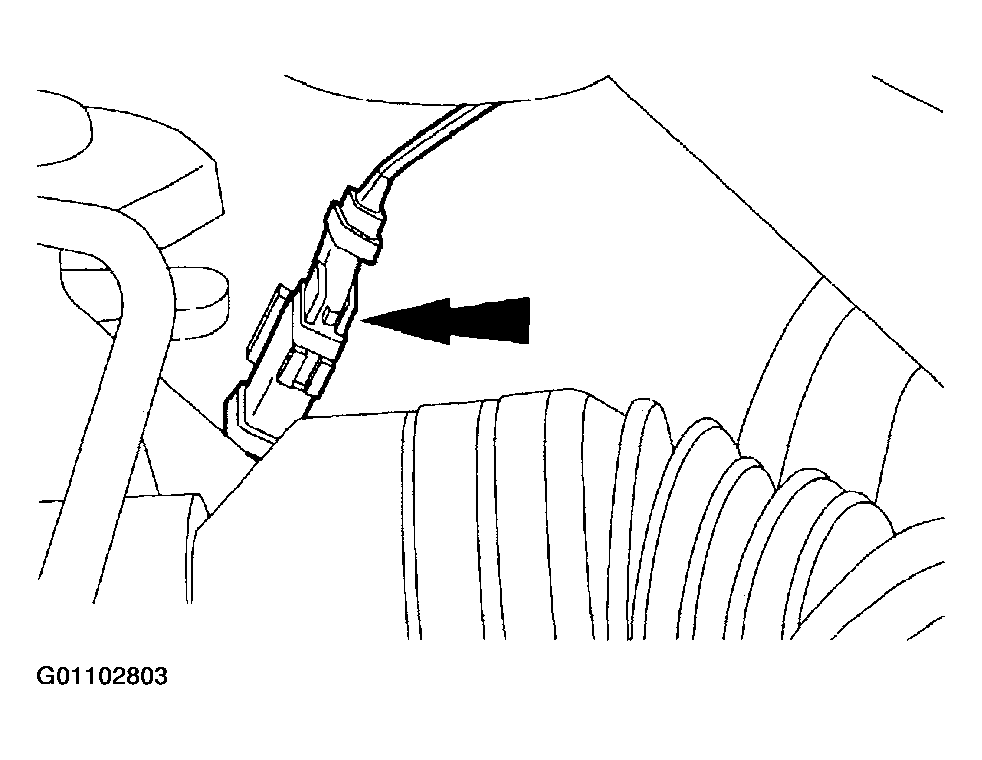

Fig 1: Disconnecting Rear Anti-Lock Brake Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the rear anti-lock brake sensor harness from the control arm clips.

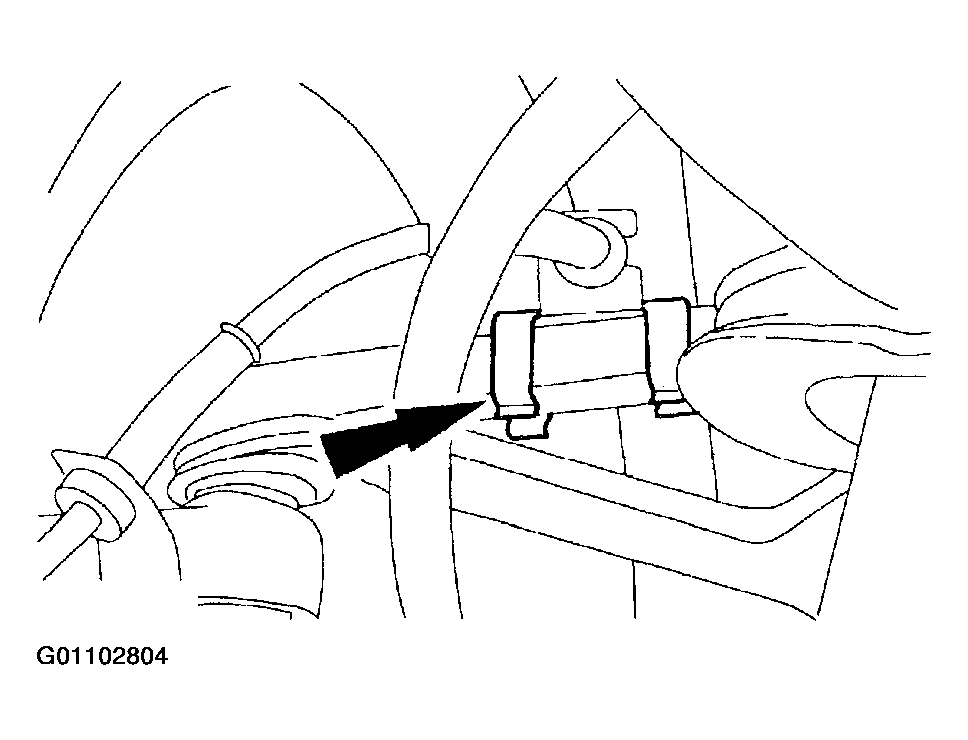

Fig 2: Removing Rear Anti-Lock Brake Sensor Harness
Courtesy of FORD MOTOR CO.

NOTE: Clean off dirt and foreign material that may have collected around the rear anti-lock brake sensor before removal.

Remove the rear anti-lock brake sensor.
1. Remove the anti-lock brake sensor bolt.
2. Remove the anti-lock brake sensor.

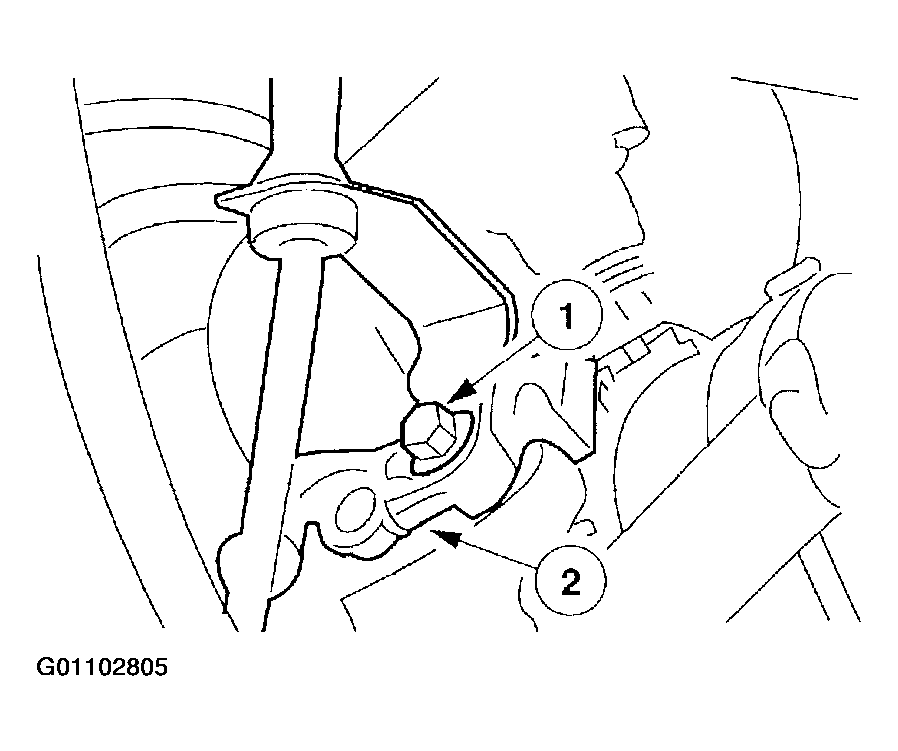

  Fig 3: Removing Rear Anti-Lock Brake Sensor
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

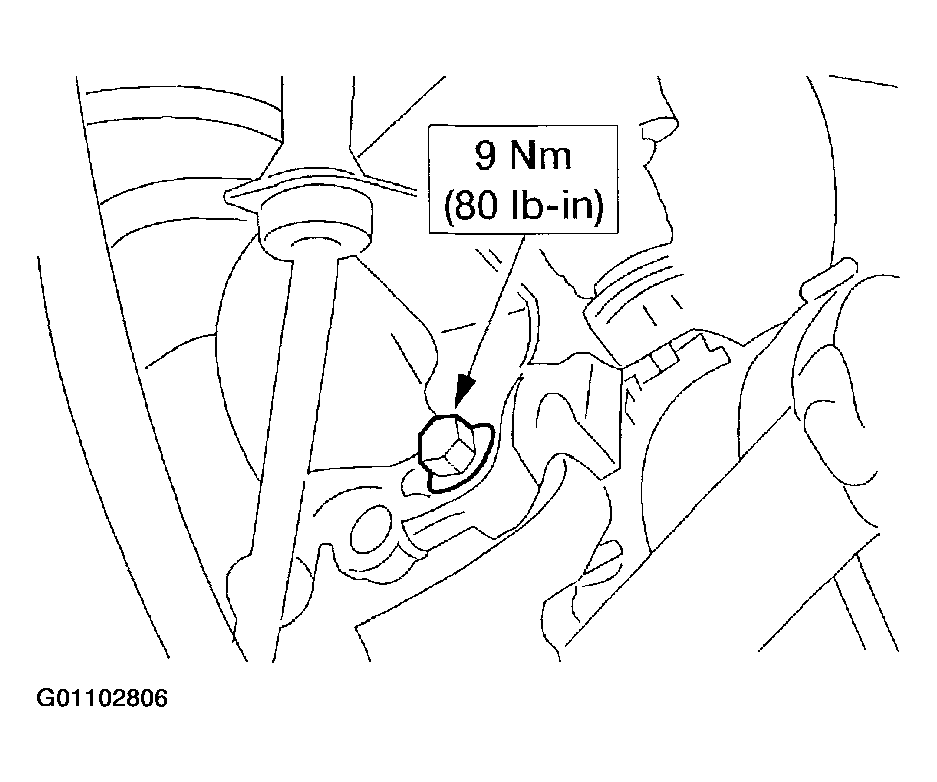

Fig 4: Installing Rear Anti-Lock Brake Sensor
Courtesy of FORD MOTOR CO.
