Removal and Installation

  1. Remove the console panel assembly. For additional information, see CONSOLE -- FLOOR, FINISH PANEL ASSEMBLY .
  2. Remove the traction control switch electrical connector.

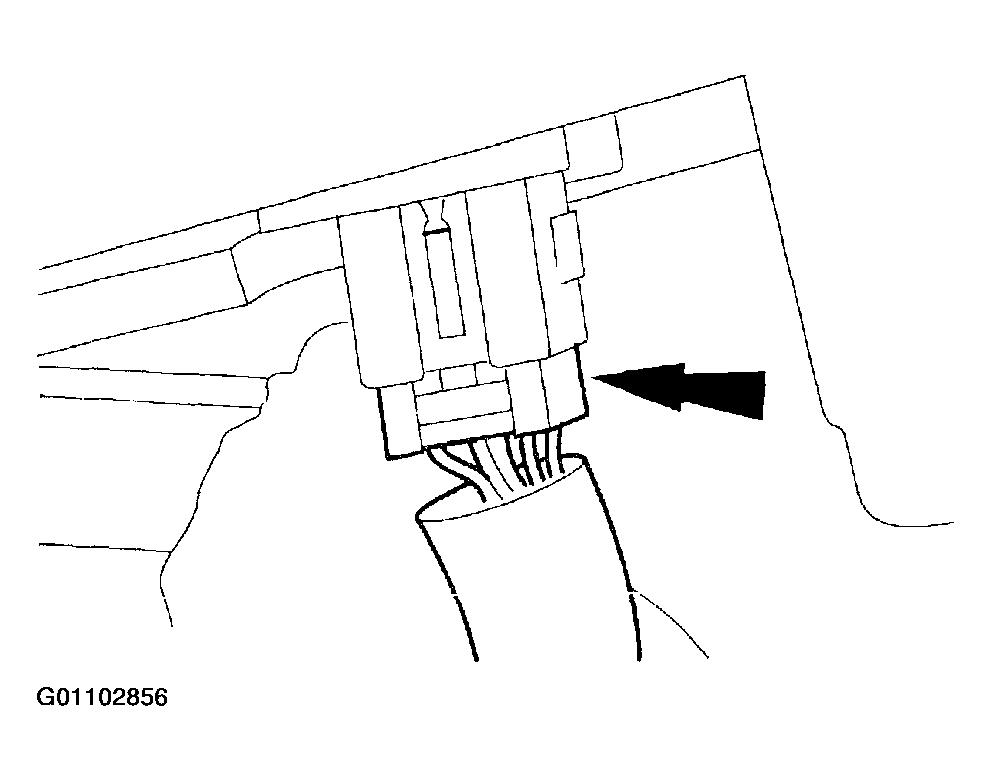

    Fig 1: Disconnecting Traction Control Switch Electrical Connector
    G01102856Courtesy of FORD MOTOR CO.
  3. Remove the traction control switch.
    1. Remove the traction control switch screws.
    2. Remove the traction control switch.

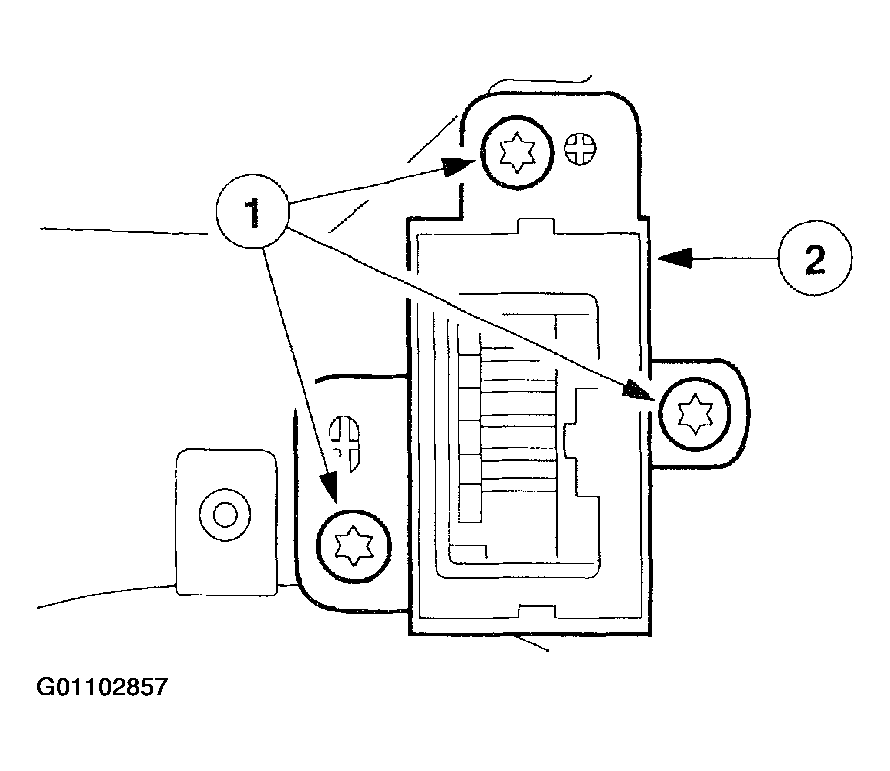

      Fig 2: Removing Traction Control Switch
      G01102857Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
