Digital Transmission Range (TR) Sensor: Installation

Install the digital transmission range (TR) sensor.
1. Install digital transmission range (TR) sensor.
2. Loosely install the bolts.

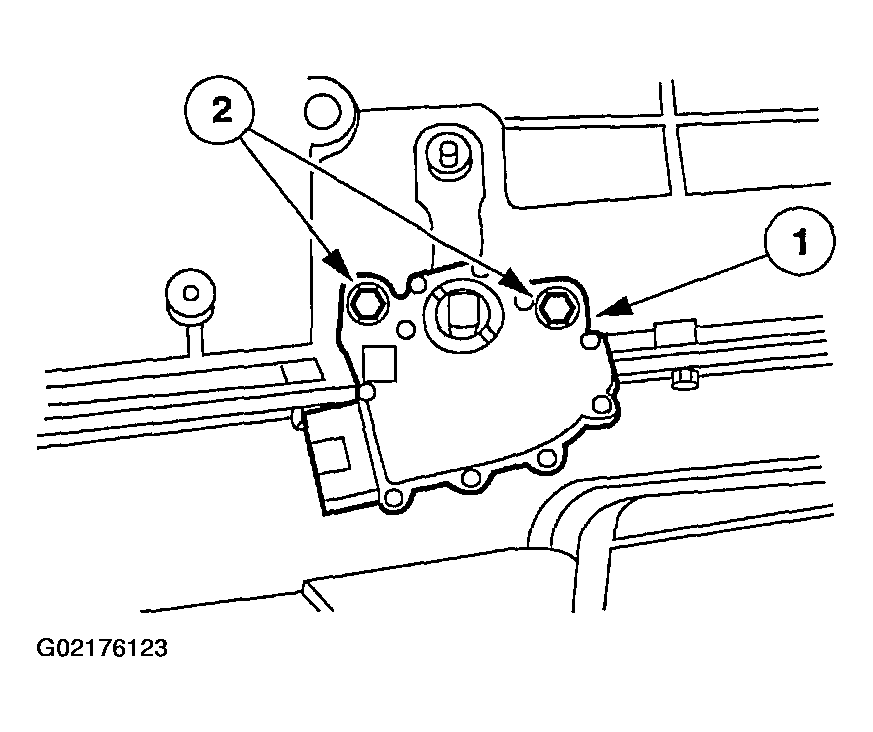

Fig 1: Installing Digital Transmission Range (TR) Sensor
Courtesy of FORD MOTOR CO.

NOTE: Make sure that the manual control lever is in the neutral position.

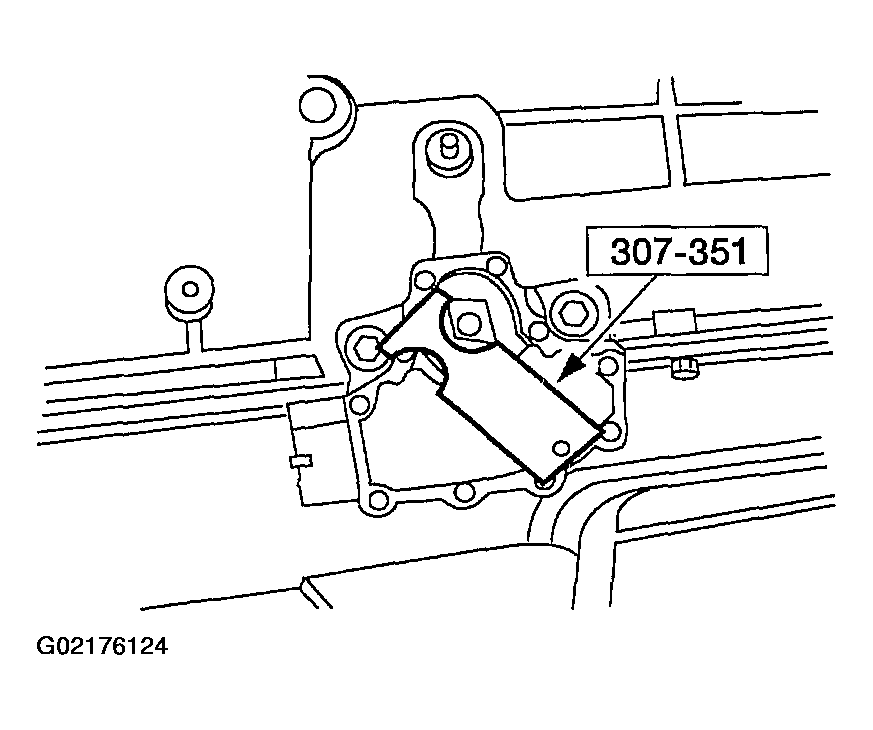

Fig 2: Aligning Digital TR Sensor

G02176124

Courtesy of FORD MOTOR CO.

Using the special tool, align the digital TR sensor.
Tighten the bolts.

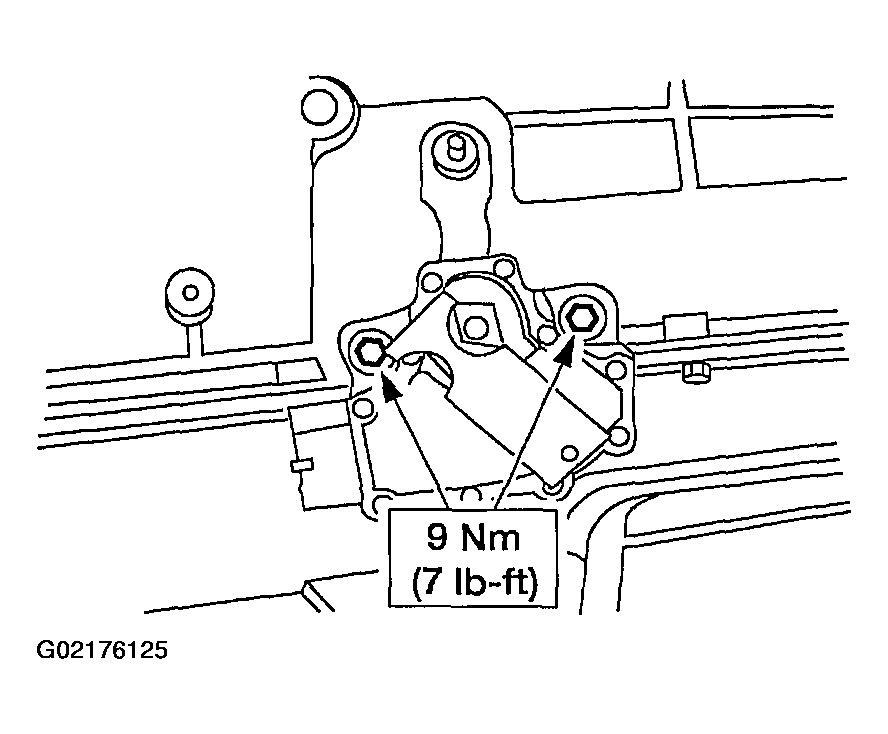

Fig 3: Identifying Tightening Torque For Installing Digital TR Sensor
Courtesy of FORD MOTOR CO.
Reconnect the shift cable at the manual control lever.

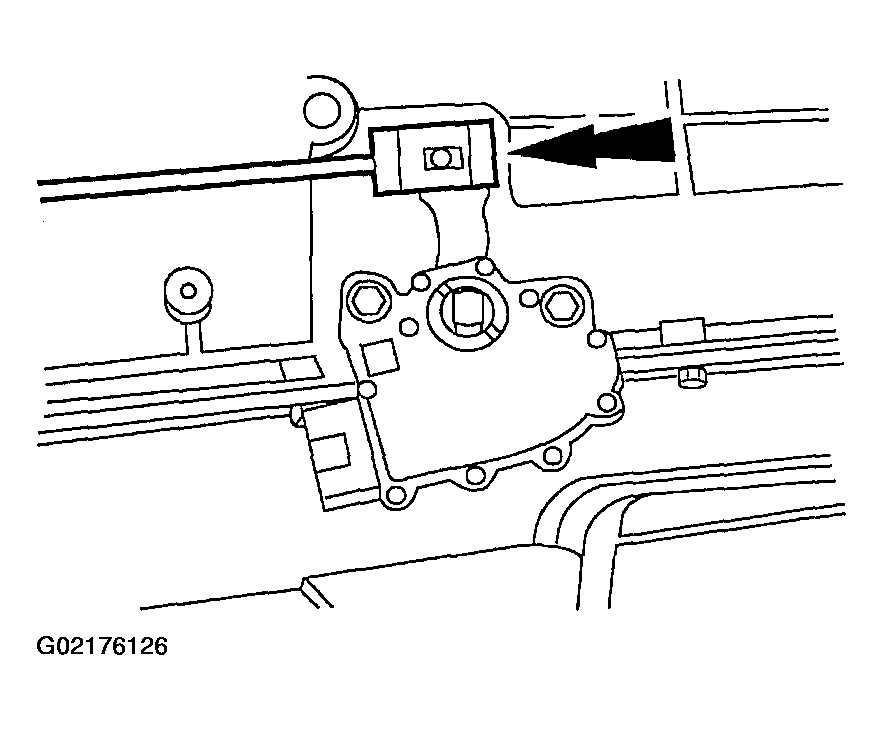

Fig 4: Reconnecting Shift Cable At Manual Control Lever
Courtesy of FORD MOTOR CO.
Reconnect the connector.

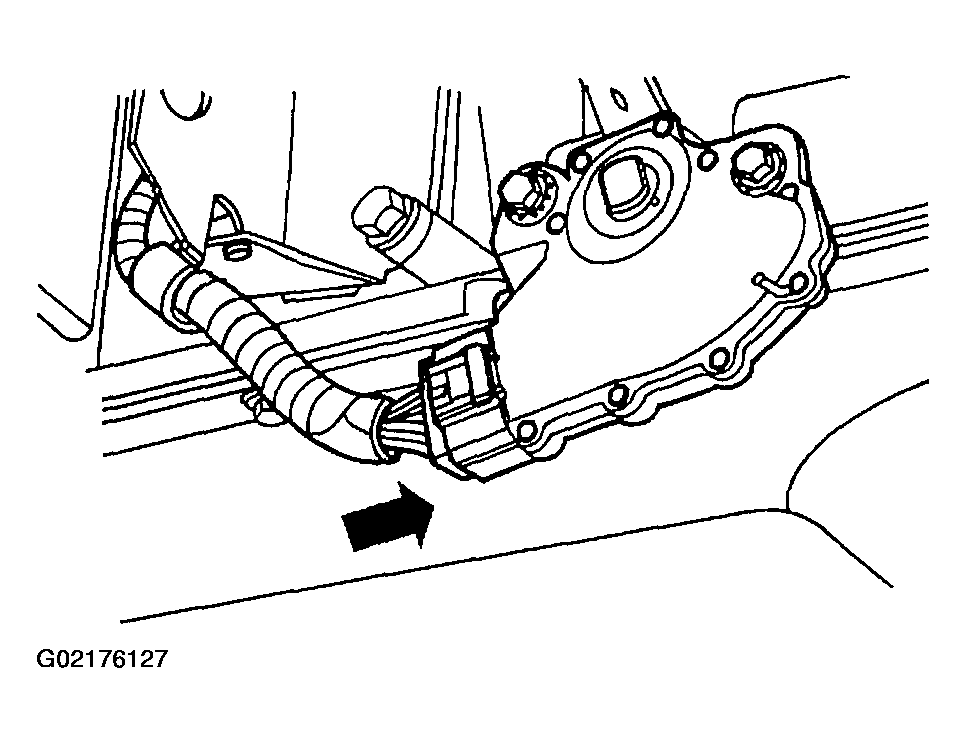

Fig 5: Reconnecting Connector
Courtesy of FORD MOTOR CO.
Lower the vehicle.
Reconnect the battery ground cable.
