Diagnostic Flow Chart

Follow the diagnostic sequence to diagnose and repair the concern the first time.

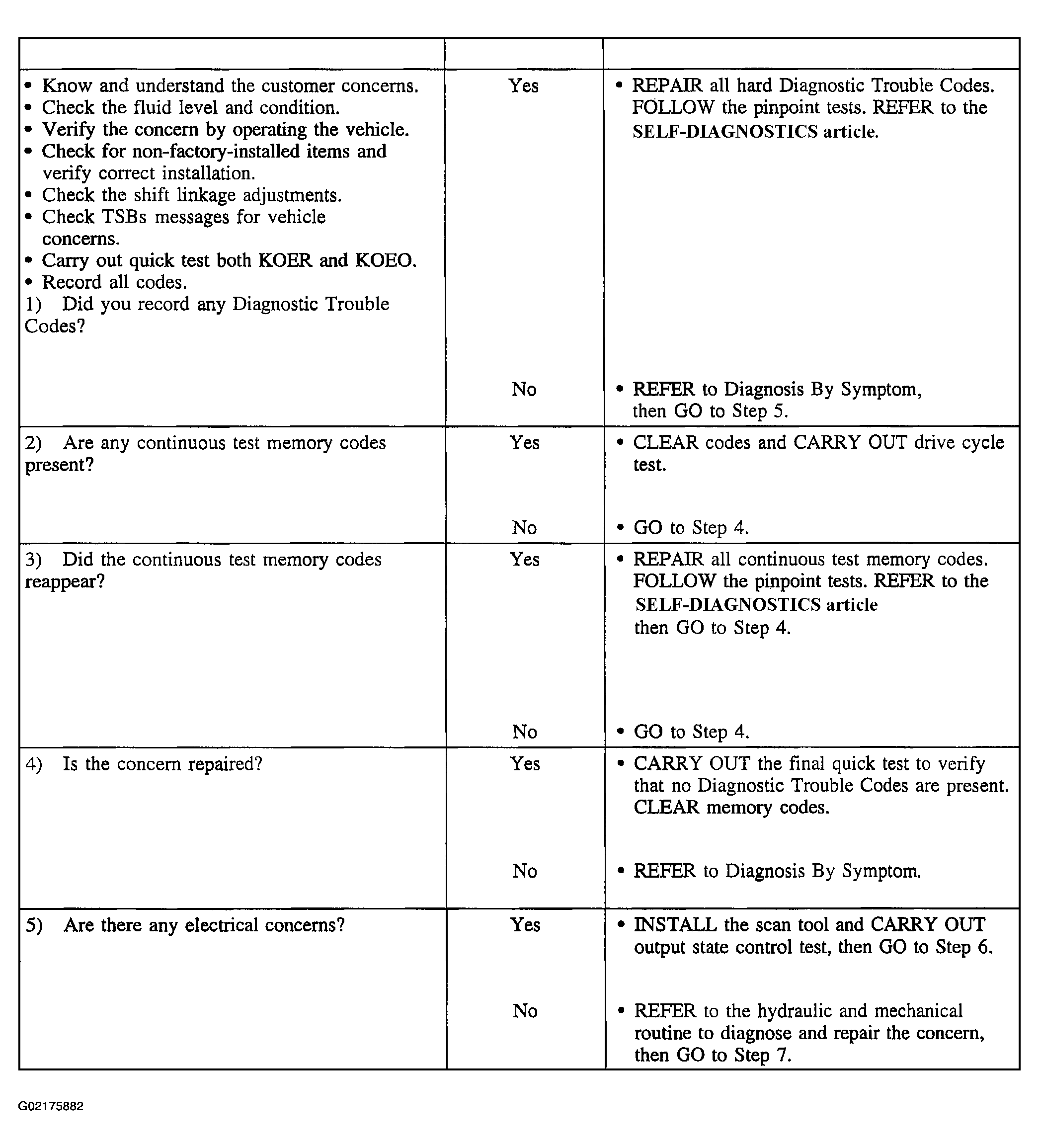

Fig 1: Diagnostic Flow Chart (1 Of 2)
G02175882Courtesy of FORD MOTOR CO.

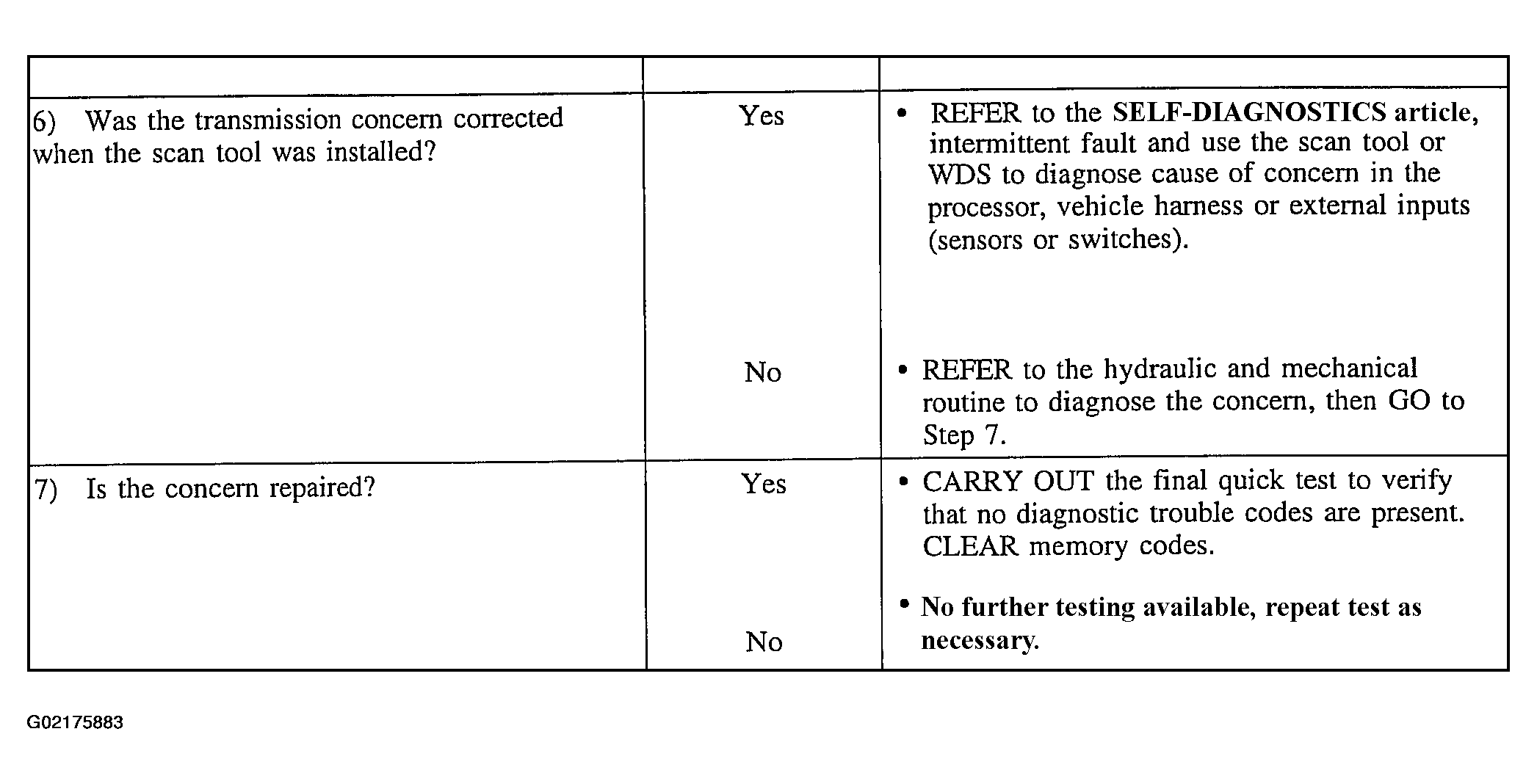

Fig 2: Diagnostic Flow Chart (2 Of 2)
G02175883Courtesy of FORD MOTOR CO.
