Rear Wheel Speed Sensor: Material

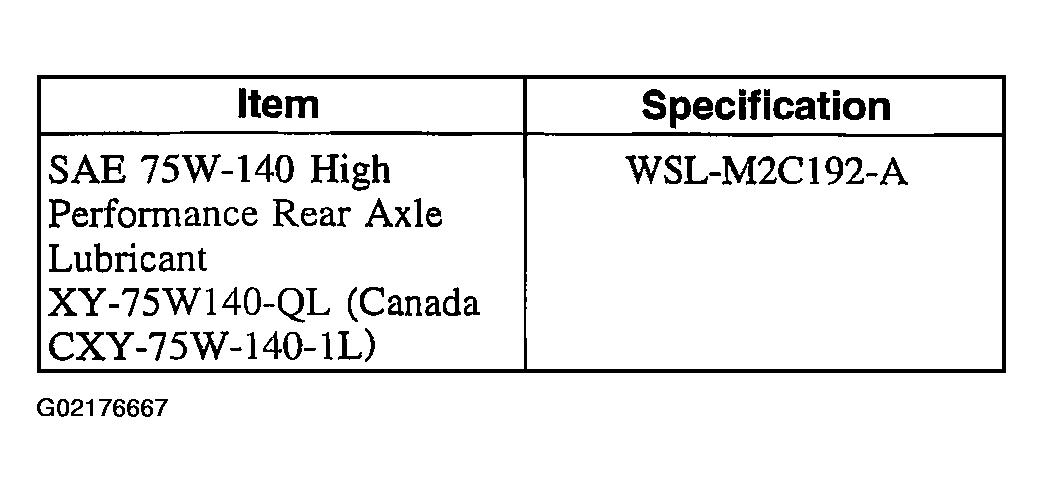

Fig 1: Material Specifications - Rear Wheel Speed Sensor
G02176667Courtesy of FORD MOTOR CO.
  1. Remove the components in the order indicated in the following illustration and table.
  2. Install in the reverse order of removal.

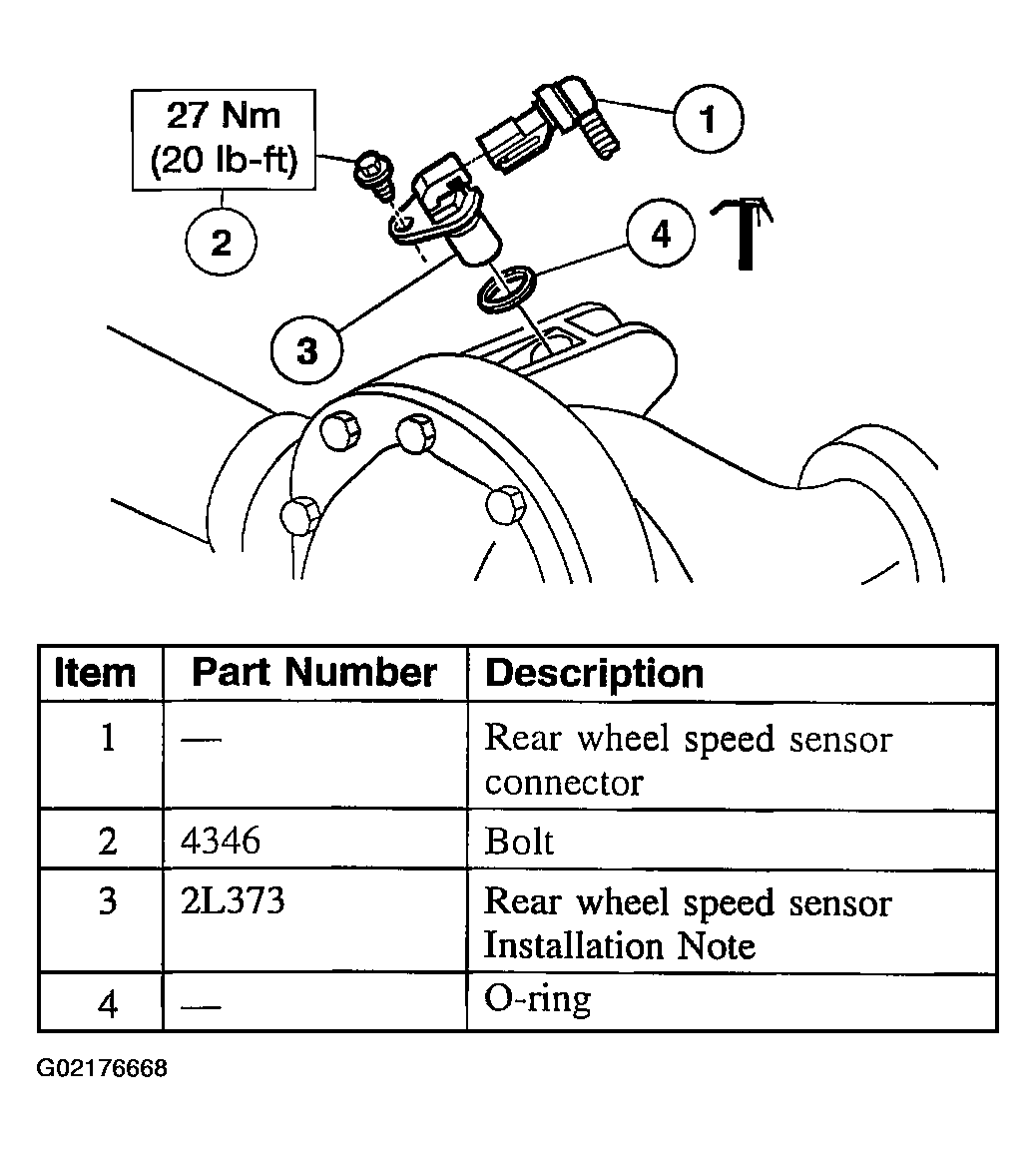

    Fig 2: Removing Sequence Of Rear Wheel Speed Sensor
    G02176668Courtesy of FORD MOTOR CO.
