Item 2: Front Wheel Sensor Ring Installation Note

CAUTION: The front brake anti-lock sensor ring must be pressed on straight.
  1. Use an appropriate size cylinder and press to install the front brake anti-lock sensor ring.

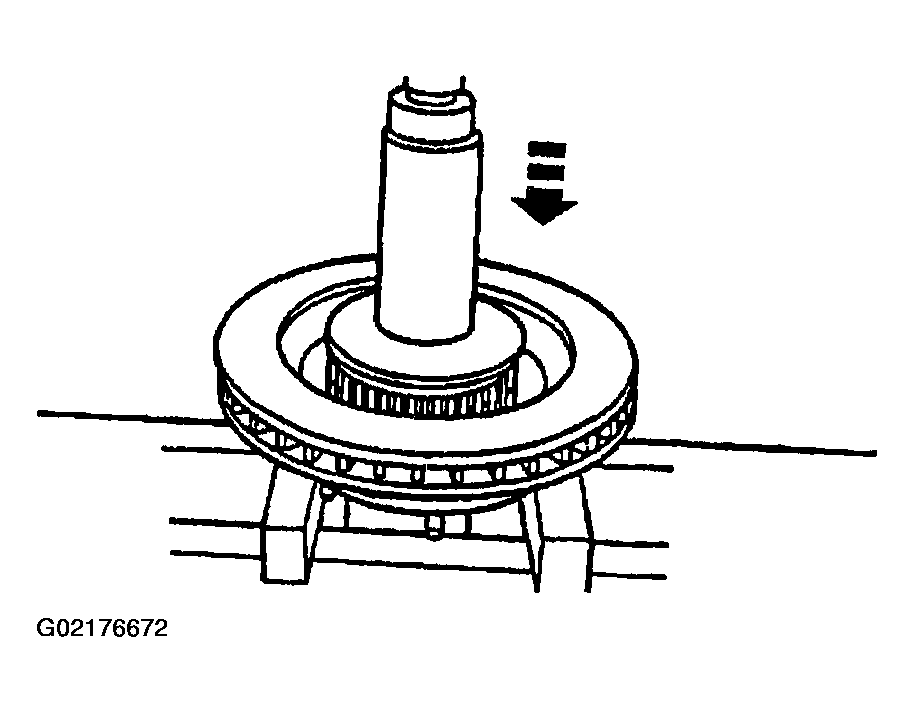

    Fig 1: Installing Front Brake Anti-Lock Sensor Ring
    G02176672Courtesy of FORD MOTOR CO.
