Reverse Clutch: Disassembly

  1. Remove the reverse clutch pack assembly.
    1. Remove the reverse clutch pressure plate retainer snap ring.
    2. Remove the reverse clutch pressure plate.
    3. Remove the clutch pack.
    4. Remove the wave spring.

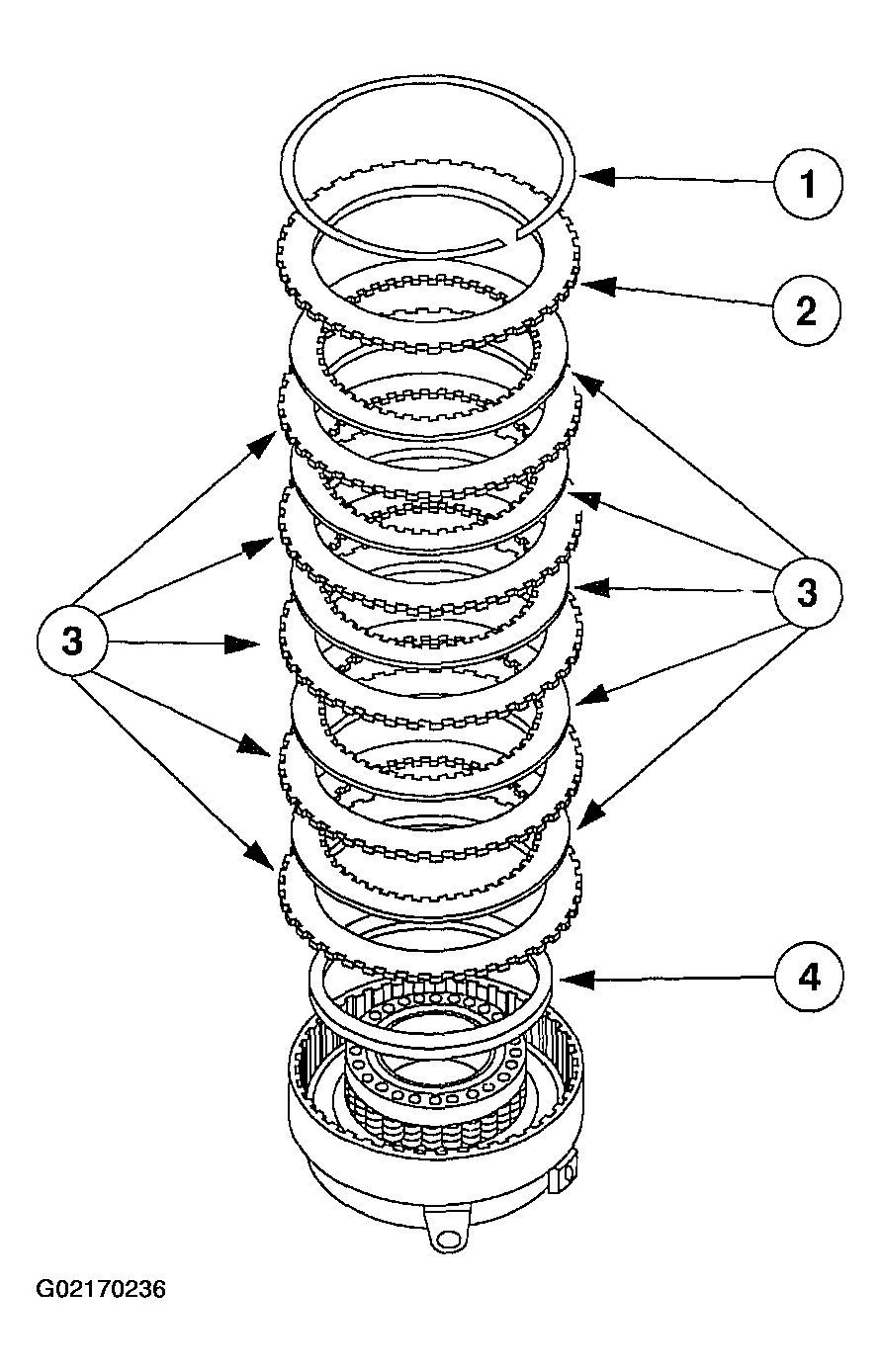

      Fig 1: Removing Reverse Clutch Pack Assembly
      G02170236
    2. CAUTION: Do not fully compress the spring retainer.

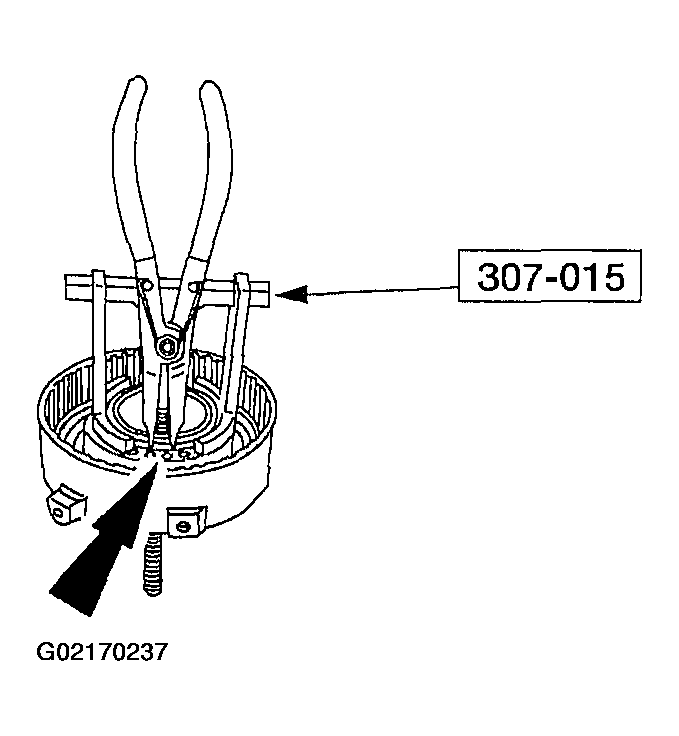

    Fig 2: Removing Snap Ring
    G02170237
  2. Use the special tool and snap ring pliers to remove the snap ring.
  3. Remove the reverse clutch support and spring.

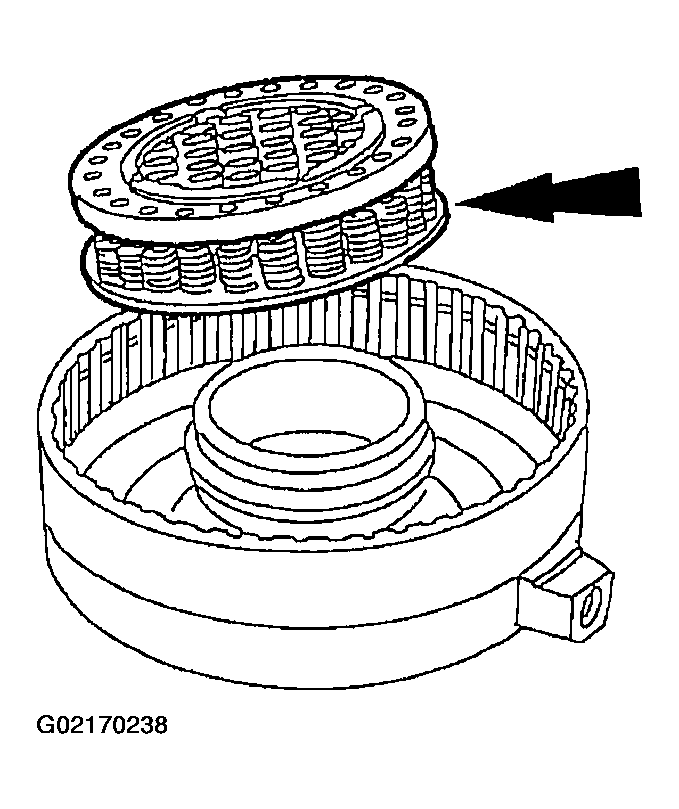

    Fig 3: Removing Reverse Clutch Support & Spring
    G02170238
  4. Remove the reverse clutch piston.

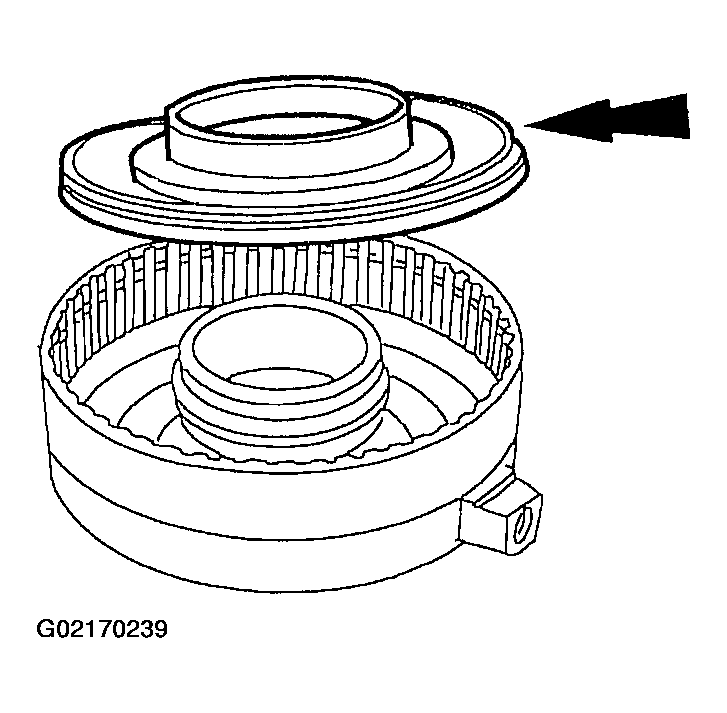

    Fig 4: Removing Reverse Clutch Piston
    G02170239
  5. Remove the reverse clutch piston outer seal.

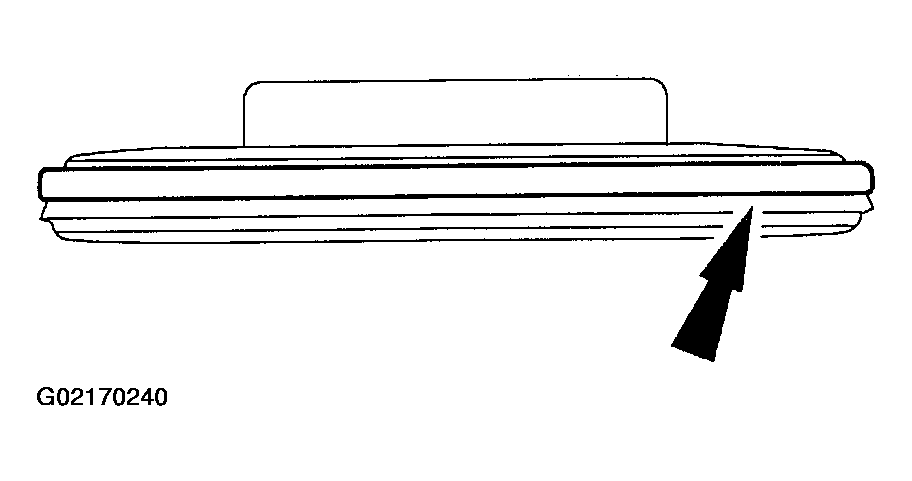

    Fig 5: Removing Reverse Clutch Piston Outer Seal
    G02170240
  6. Using the special tool, remove the reverse clutch piston inner seal.

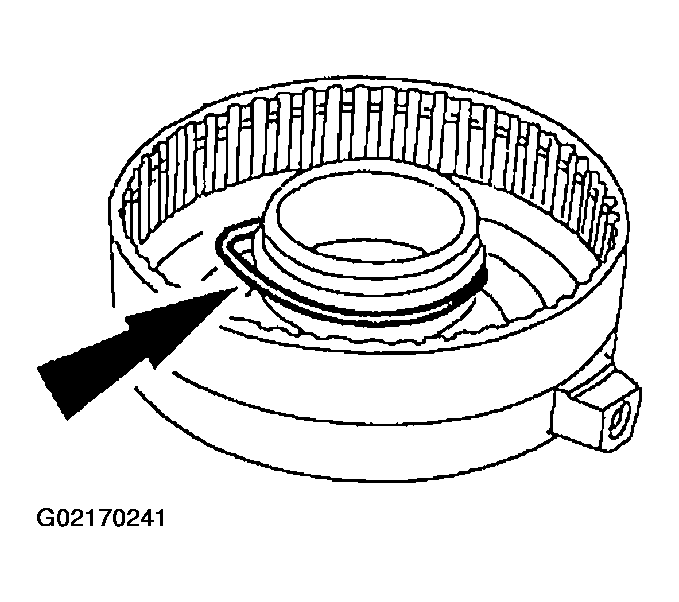

    Fig 6: Removing Reverse Clutch Piston Inner Seal
    G02170241
