Intermediate Clutch Cylinder: Disassembly

    NOTE: The number of clutch plates may vary with application.
  1. Remove the intermediate clutch pack.
    1. Remove the snap ring.
    2. Remove the pressure plate.
    3. Remove the clutch pack.
    4. Remove the wave spring.

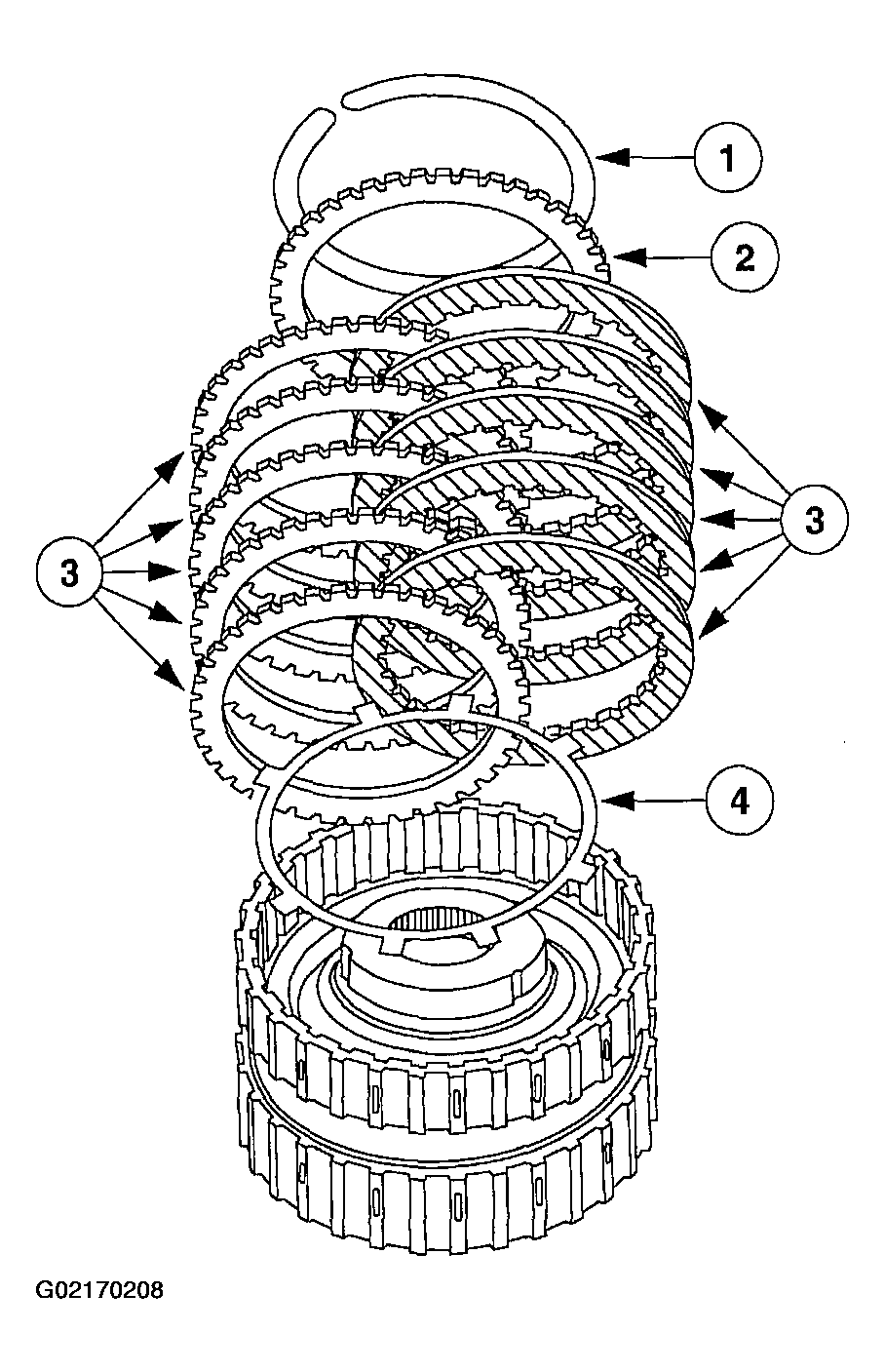

      Fig 1: Removing Intermediate Clutch Pack
      G02170208
    2. CAUTION: Do not fully compress the intermediate clutch spring retainer.

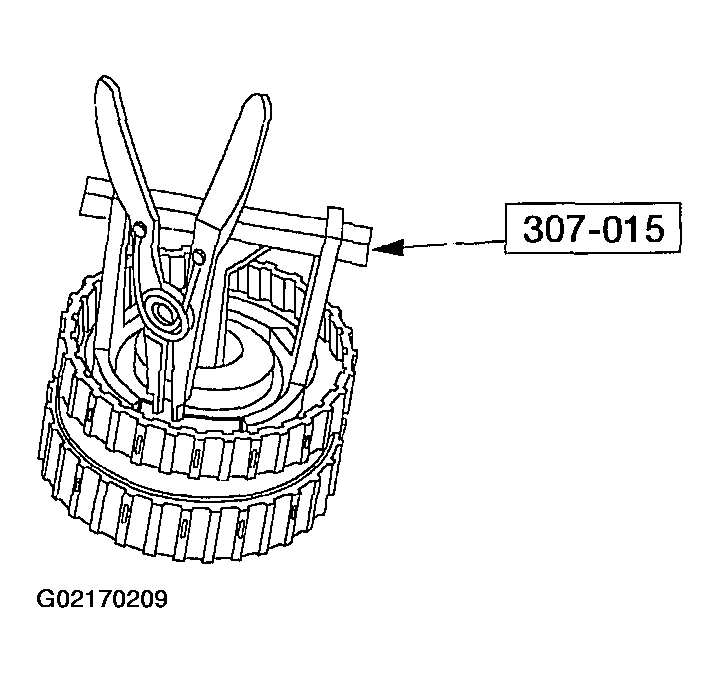

    Fig 2: Compressing Intermediate Clutch Return Spring & Removing Snap Ring
    G02170209
  2. Use the special tool, compress the intermediate clutch return spring and remove the snap ring.
    3. NOTE: The seal is part of the piston and is repaired as an assembly.

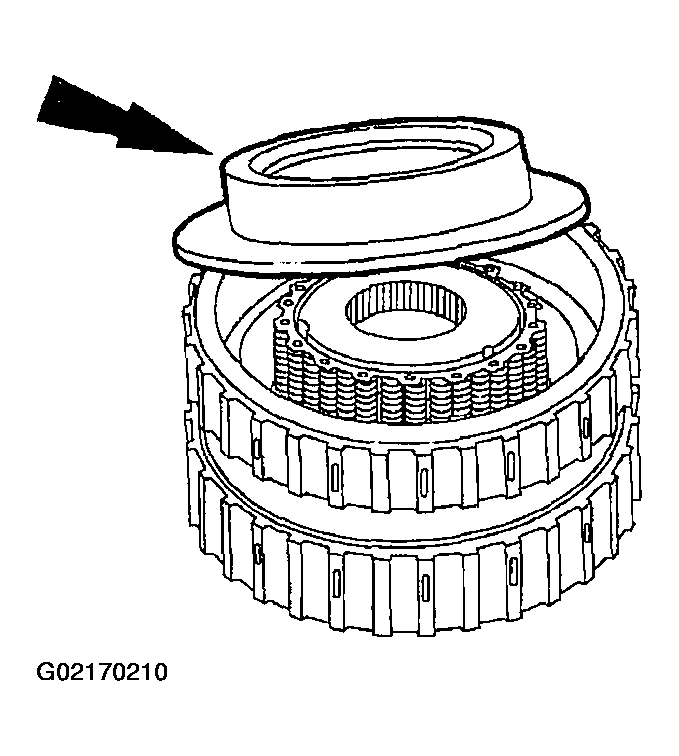

    Fig 3: Removing Intermediate Clutch Balance Piston Assembly
    G02170210
  3. Remove the intermediate clutch balance piston assembly.
  4. Remove the intermediate clutch return spring.

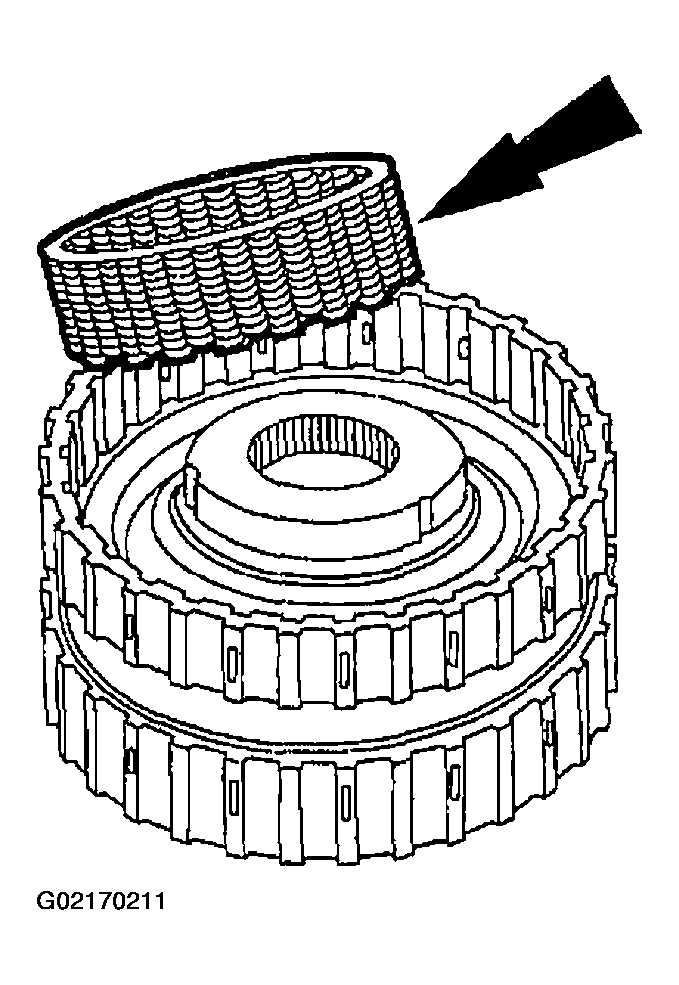

    Fig 4: Removing Intermediate Clutch Return Spring
    G02170211
    5. NOTE: The seal is part of the piston and is repaired as an assembly.

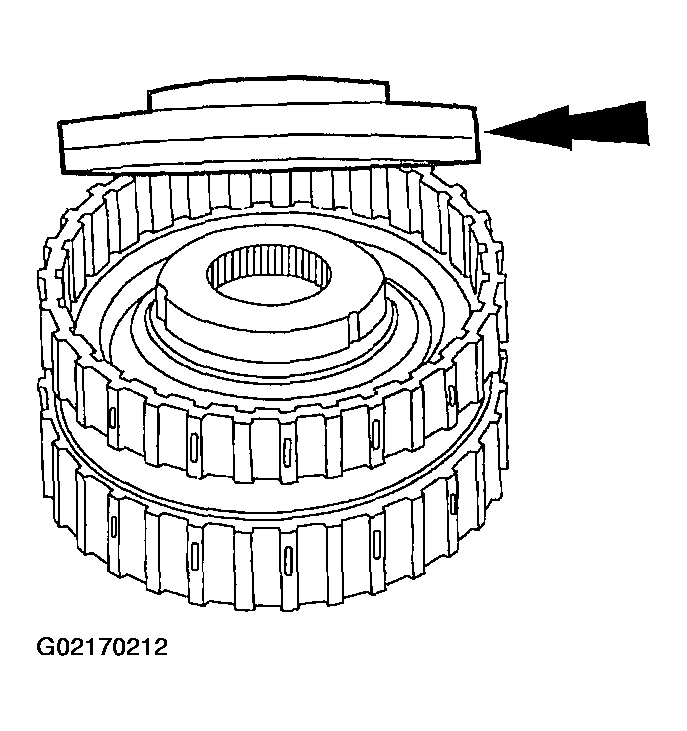

    Fig 5: Removing Intermediate Clutch Piston
    G02170212
  5. Remove the intermediate clutch piston.
  6. Remove the intermediate clutch piston inner seal.

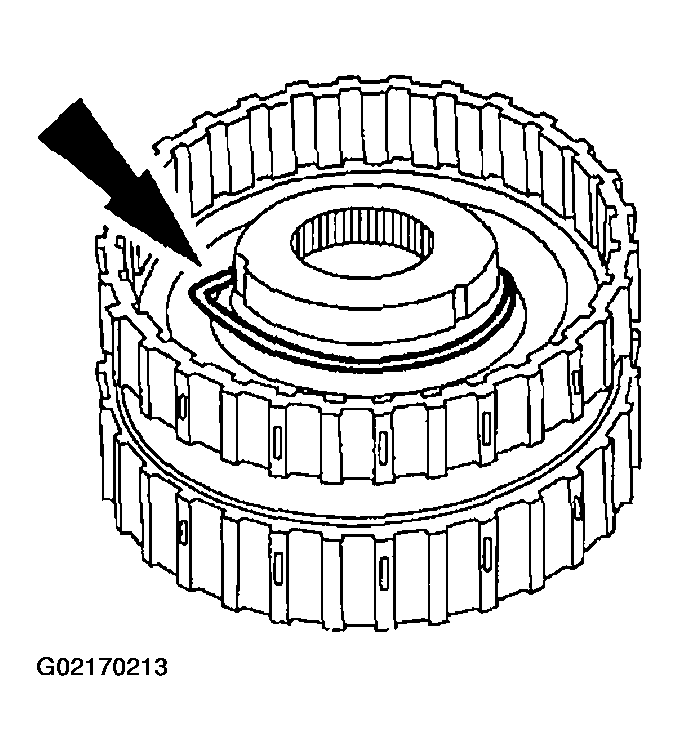

    Fig 6: Removing Intermediate Clutch Piston Inner Seal
    G02170213
