Steering Wheel Audio Controls: Installation

WARNING: This page is about a different car, the 2004 Lincoln Navigator and 2004 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

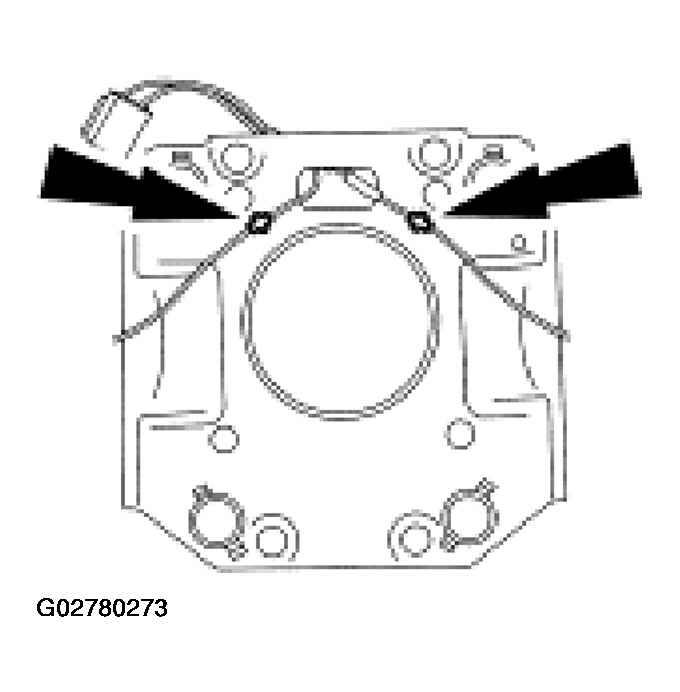

Install the steering wheel audio controls wire harness into the clips on the module plate.

Fig 1: Installing Steering Wheel Audio Controls Wire Harness Into Clips On Module Plate
Courtesy of FORD MOTOR CO.

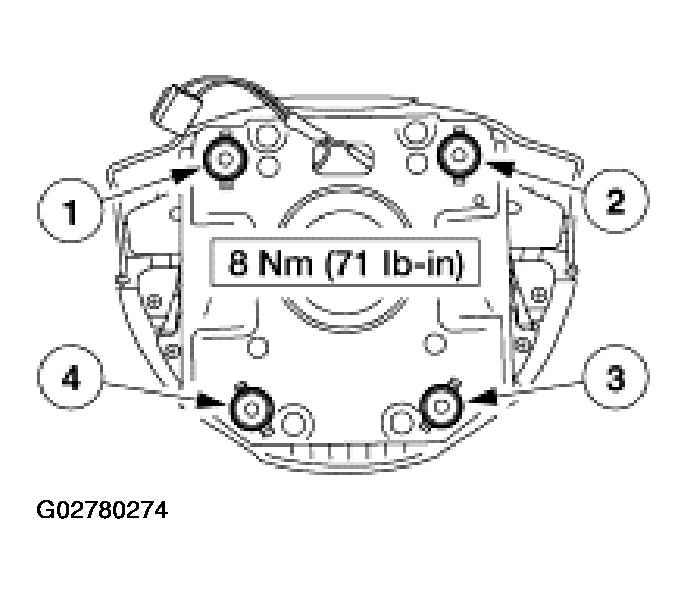

Install the module plate-to-driver air bag module.
- Install the plate, springs and bolts and tighten in the sequence shown.
Fig 2: Installing Module Plate-To-Driver Air Bag Module
Courtesy of FORD MOTOR CO.

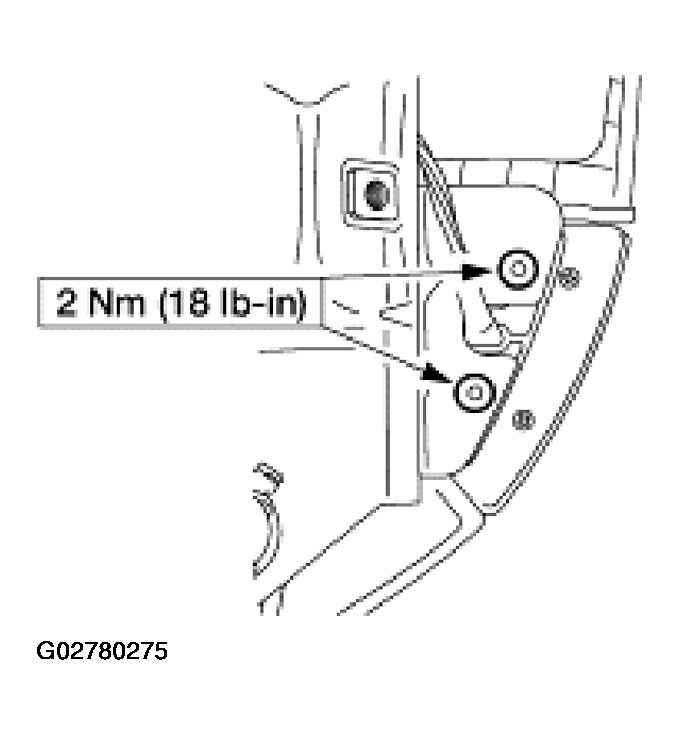

Install the steering wheel audio controls.

Fig 3: Installing Steering Wheel Audio Controls
Courtesy of FORD MOTOR CO.

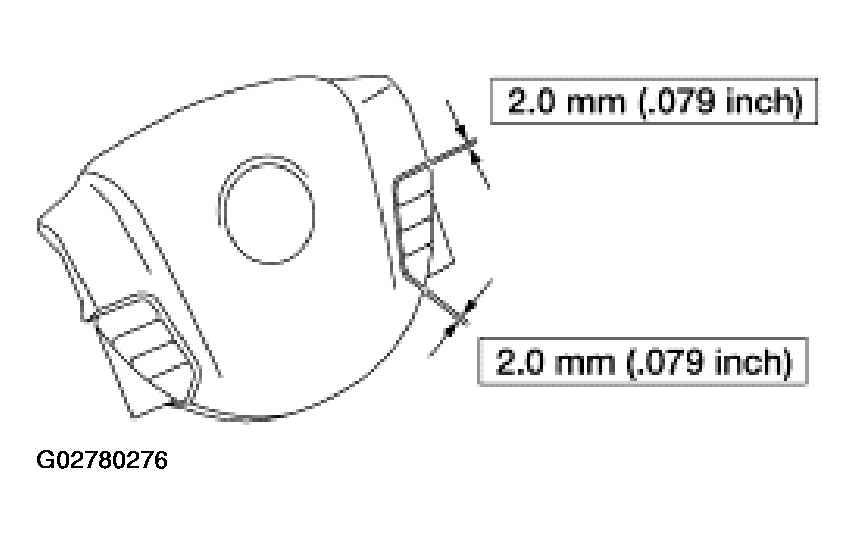

Check the gap between driver air bag module and steering wheel audio controls and adjust as necessary.

Fig 4: Checking Gap Between Driver Air Bag Module, Steering Wheel Audio Controls And Adjust As Necessary
Courtesy of FORD MOTOR CO.
Install the driver airbag module. For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
