| Camshaft Sprocket Bolt |
81-95 (110-129) |
| Connecting Rod Bolt |
| Step 1 |
15-18 (20-25) |
| Step 2 |
30-33 (40-45) |
| Step 3 |
Additional 90-120 Degrees |
| Crankshaft Damper Bolt |
| Step 1 |
66 (90) |
| Step 2 |
Loosen 360 Degrees |
| Step 3 |
| 2000 Models |
35-39 (47-53) |
| 2001 Models |
36 (50) |
| Step 4 |
Additional 85-95 Degrees |

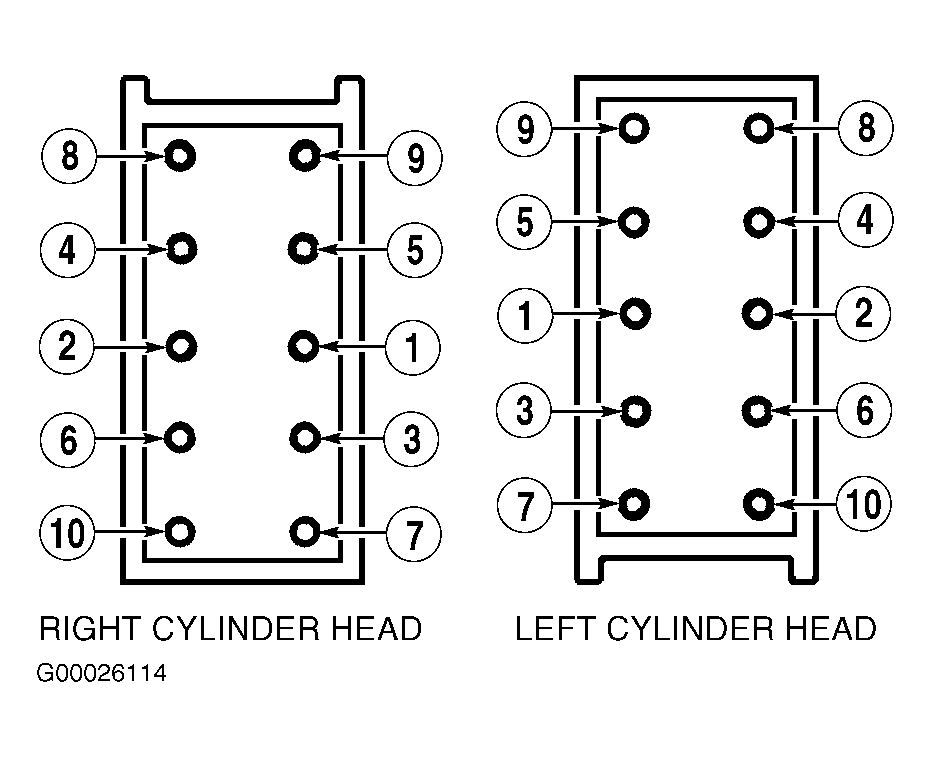

| Cylinder Head Bolt |
| Step 1 |
28-32 (37-43) |
| Step 2 |
Additional 85-95 Degrees |
| Step 3 |
Loosen 360 Degrees |
| Step 4 |
28-32 (37-43) |
| Step 5 |
Additional 85-95 Degrees |
| Step 6 |
Additional 85-95 Degrees |
| Drive Belt Tensioner Bolt |
15-22 (20-30) |
| EGR Bracket Bolts |
18 (25) |
| EGR Valve-To-Intake Manifold Bolt |
| Step 1 |
15 (20) |
| Step 2 |
Additional 90 Degrees |
| Engine Mount Through-Bolt |
15-22 (20-30) |
| Engine Roll Restrictor Bolt |
44-59 (60-80) |
| Engine Support Insulator Bolts |
52 (70) |
| Engine Support Insulator Bracket Bolts |
| Left Side |
35-46 (47-63) |
| Right Side |
15-22 (20-30) |
| Engine-To-Transmission Bolts |
30-44 (41-60) |

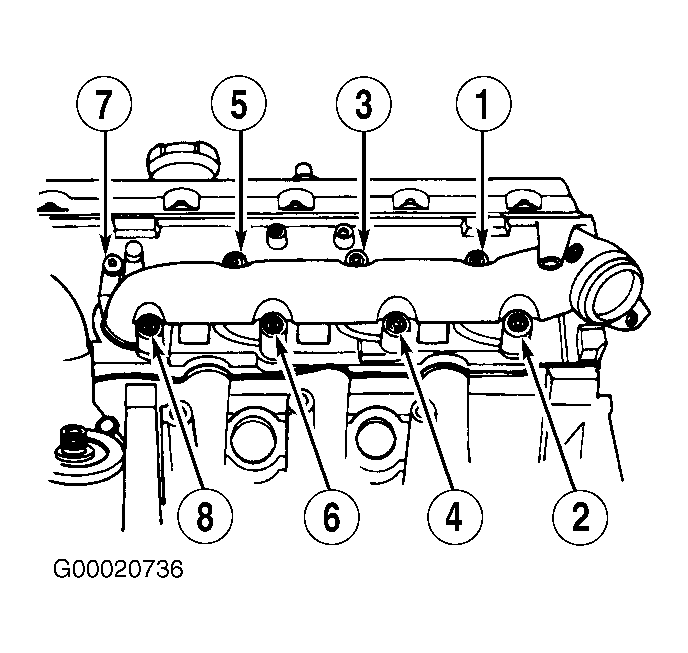

| Exhaust Manifold Bolt |
14-16 (18-22) |
| Flywheel Bolt |
54-64 (73-87) |
| Front Cover Bolt/Stud |
15-22 (20-30) |
| Generator Bracket-To-Cylinder Block Bolts |
15-22 (20-30) |
| Knock Sensor Bolt |
15 (20) |

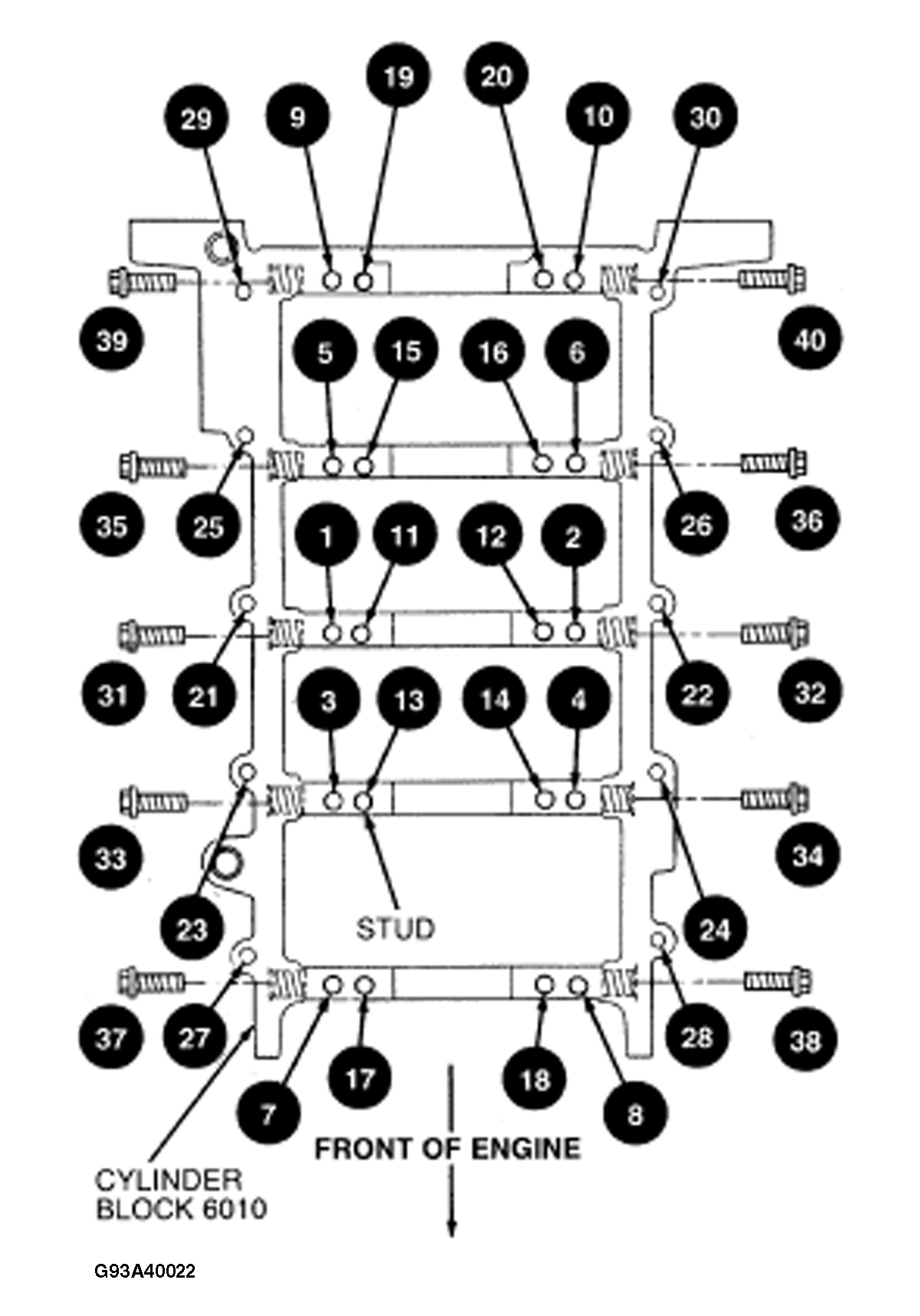

| Main Bearing Cap Bolt |
|
| Main Bearing Cap Side Bolt |
| Step 1 |
30 (40) |
| Step 2 |
Additional 90 Degrees |
| Oil Pan Bolts |
| Step 1 |
15 (20) |
| Step 2 |
Additional 60 Degrees |
| Oxygen Sensor |
27-33 (37-45) |
| Pick-Up Tube-To-Main Bearing Cap Nut |
15-22 (20-30) |
| Power Steering Pump-To-Mount Nut |
15-22 (20-30) |
| Thermostat Housing Bolt |
15-22 (20-30) |
| Subframe Mounting Bolts |
51-67 (69-91) |
| Timing Chain Tensioner Bolt |
15-22 (20-30) |
| Torque Converter Nut |
20-34 (27-46) |
| Water Pump Bolt |
15-22 (20-30) |
| Water Pump Pulley Bolt |
15-22 (20-30) |
| INCH Lbs. (N.m) |
| Air By-Pass Valve Bolt |
72-106 (8-12) |
| Camshaft Cap Bolt |
72-106 (8-12) |
| Camshaft Cover Bolt |
72-106 (8-12) |
| Chain Guide Bolt |
72-106 (8-12) |

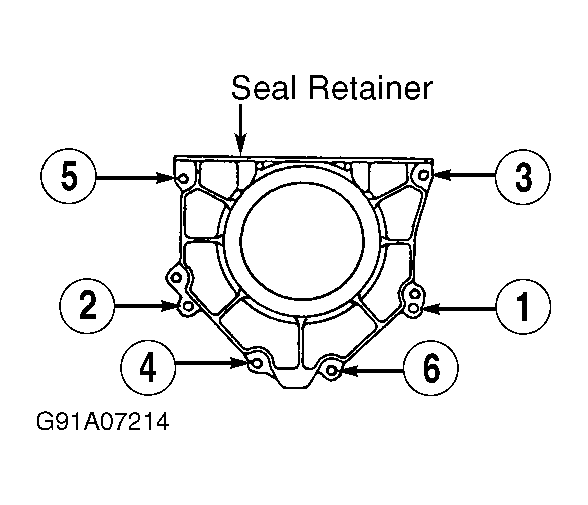

| Crankshaft Seal Retainer Bolt |
72-106 (8-12) |
| Front Subframe Bracket Bolts |
72-106 (8-12) |
| Fuel Injection Supply Manifold Bolt |
44 (5) |
| Fuel Pressure Regulator Bolt |
27-35 (3-4) |
| Fuel Rail Bolt |
72-97 (8-11) |
| Ignition Wire Tray-To-Coil Bracket Bolt |
72-106 (8-12) |
| Intake Manifold Airflow Spacer Bolts |
89 (10) |

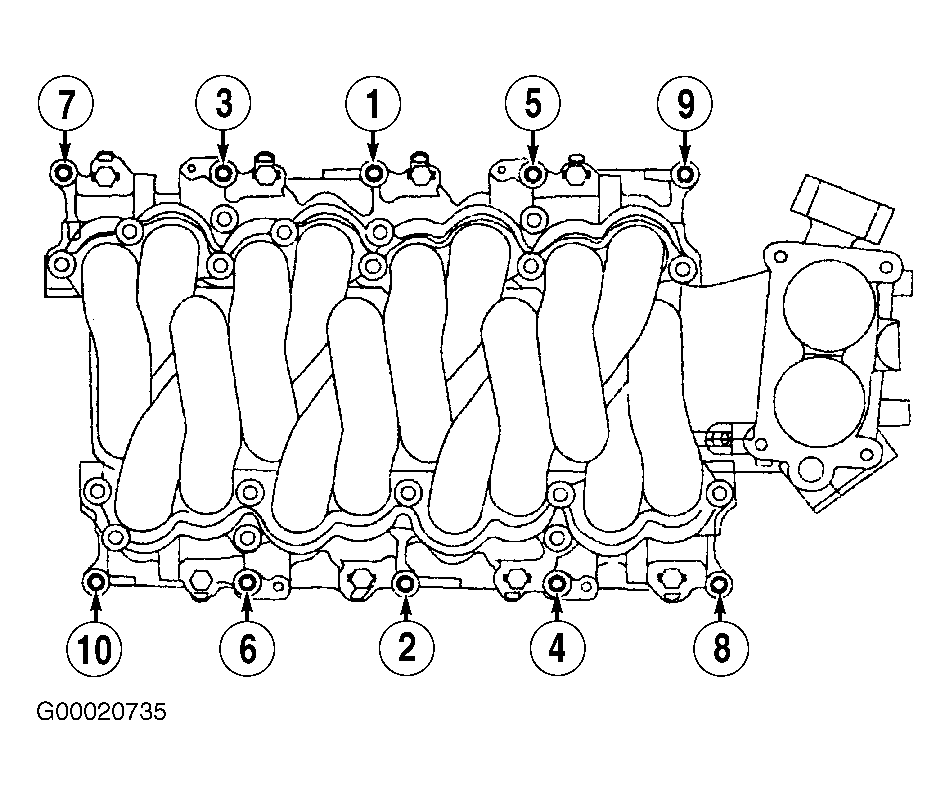

| Intake Manifold Bolts |
72-106 (8-12) |
| Oil Pump-To-Cylinder Block Bolt |
72-106 (8-12) |
| Pick-Up Tube-To-Oil Pump Bolt |
72-106 (8-12) |
| Throttle Body Bolt |
72-106 (8-12) |
| Timing Chain Guide Bolts |
72-106 (8-12) |
| Torque Converter Shield Bolts |
72-106 (8-12) |
| Valve Cover Bolts |
72-106 (8-12) |
| Water By-Pass Tube Bolts |
72-106 (8-12) |
