Home >> Lincoln >> 1998 >> Continental >> Repair and Diagnosis >> Maintenance >> Procedures >> Maintenance Information >> Fuses & Circuit Breakers >> Fuse Block Identification - UNDERHOOD >> Notes

Fuse Block Identification - UNDERHOOD: Notes

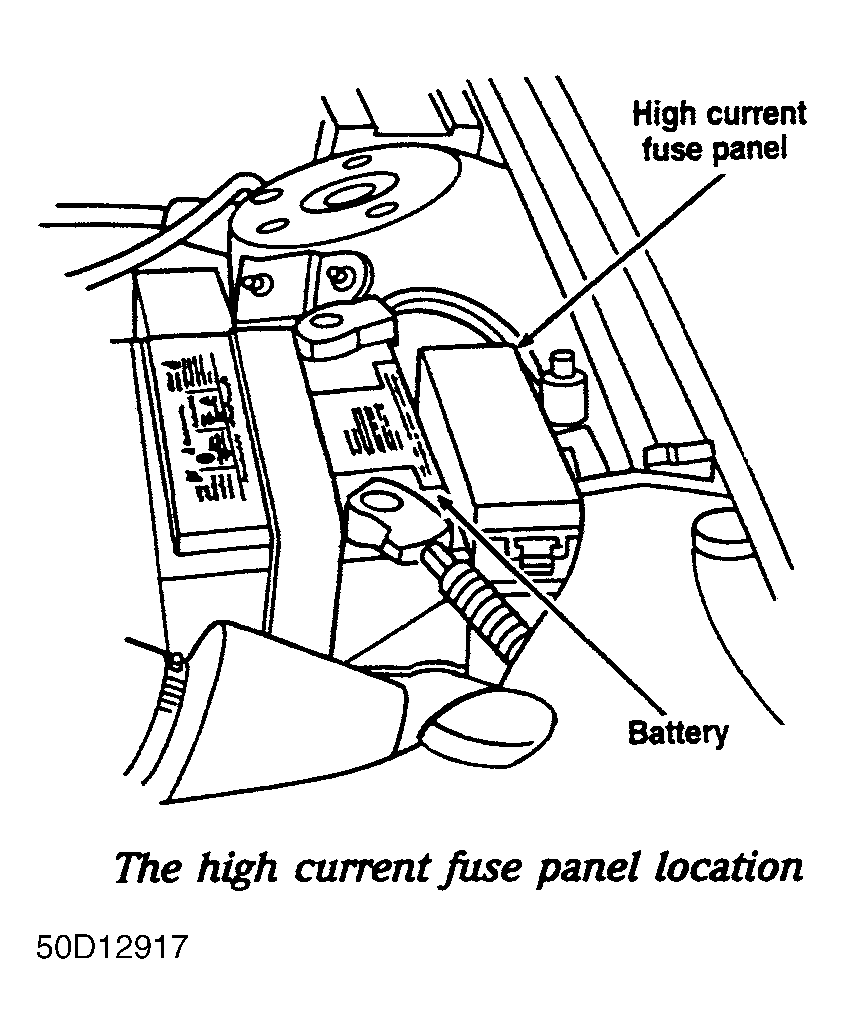

Fig 1: Fuse Block Location - Underhood
G50D12917Courtesy of FORD MOTOR CO.

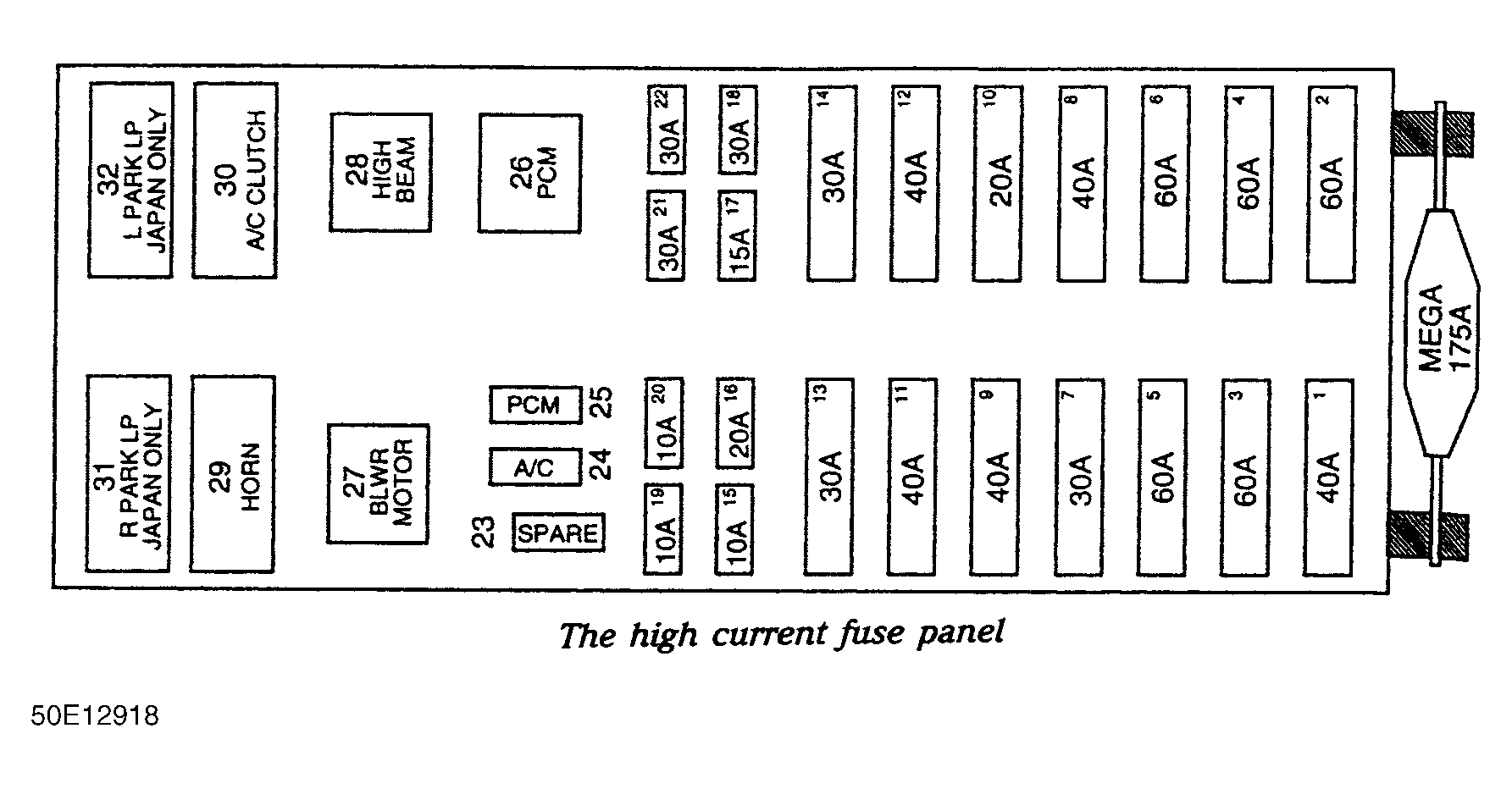

Fig 2: Fuse Block Identification - Underhood
G50E12918Courtesy of FORD MOTOR CO.
WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.
