System Testing
WARNING: This page is about a different car, the 1997 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

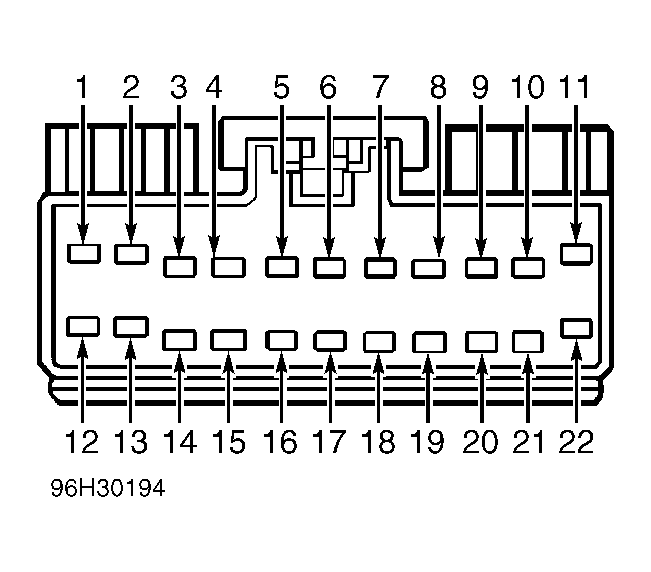

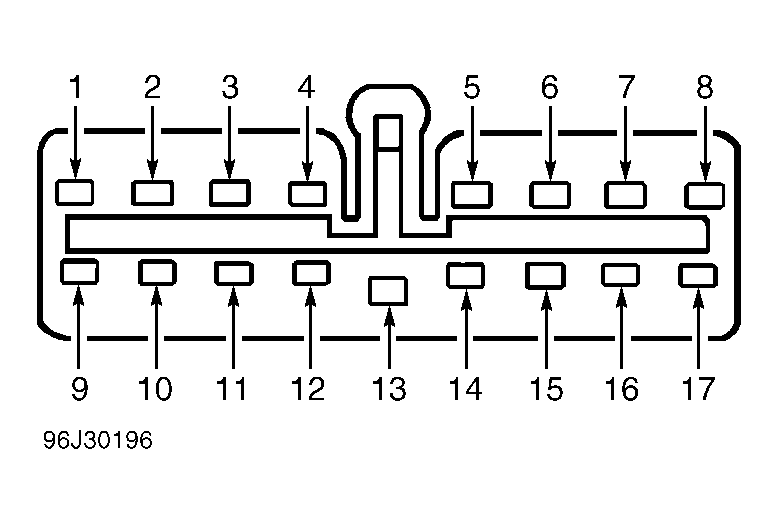

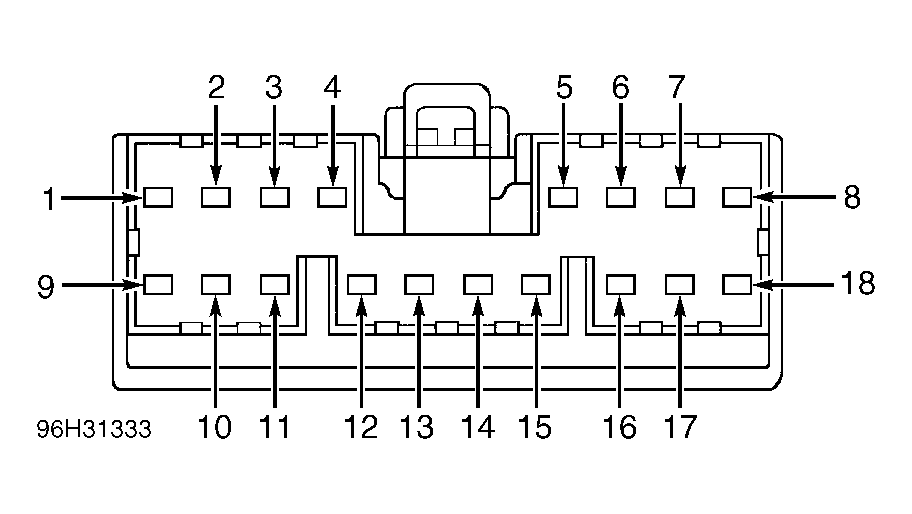

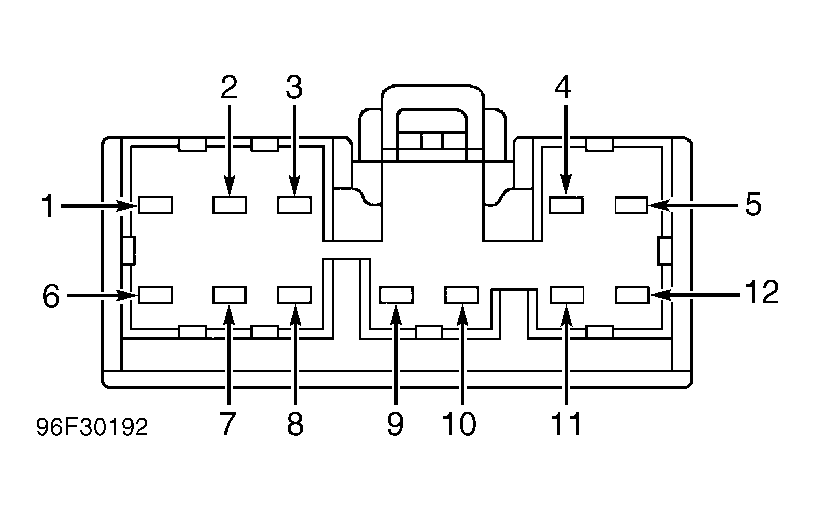

Many test steps refer to various connectors. These connectors are identified in illustration. See Fig 1
-5.
A New Generation Star (NGS) tester is required to test the power seat system. Connect NGS tester to data link connector, located beneath instrument panel. Preform data link diagnostics test. If NGS responds with NO RESPONSE/NOT EQUIPPED for driver seat module, go to CIRCUIT TEST C. If NGS responds with NO RESPONSE/NOT EQUIPPED for driver door module, go to CIRCUIT TEST D. If data link diagnostics test is passed for driver door or driver seat modules, retrieve continuous DTCs and preform appropriate DTC TEST. If self-test is passed and no DTCs are retrieved, go to SYMPTOM CHART .
DTC TEST INDEX
| DTC | Description | Action To Take |
|---|---|---|
| B1342 | ECU DEFECTIVE | GO to DTC B1342 . |
| B1517 | SEAT OCCUPIED SW-SHORT TO B+ | GO to DTC B1517 . |
| B1663 | DRIVER SEAT FRONT UP/DN-CIRCUIT FAILURE | GO to DTC B1663 . |
| B1664 | DRIVER SEAT REAR UP/DN-CIRCUIT FAILURE | GO to DTC B1664 . |
| B1665 | DRIVER SEAT FWD/BWD-CIRCUIT FAILURE | GO to DTC B1665 . |
| B1666 | DRIVER SEAT RECLINE-CIRCUIT FAILURE | GO to DTC B1666 . |
| B1676 | BATTERY VOLTAGE-OUT OF RANGE | GO to DTC B1676 . |
| B1703 | DRIVER SEAT REC FWD SW-SHORT TO B+ | GO to DTC B1703 . |
| B1707 | DRIVER SEAT REC RWD SW-SHORT TO B+ | GO to DTC B1707 . |
| B1711 | DRIVER FRONT SEAT UP SW-SHORT TO B+ | GO to DTC B1711 . |
| B1715 | DRIVER FRONT SEAT DOWN SW-SHORT TO B+ | GO to DTC B1715 . |
| B1719 | DRIVER SEAT FWD SW-SHORT TO B+ | GO to DTC B1719 . |
| B1723 | DRIVER SEAT RWD SW-SHORT TO B+ | GO to DTC B1723 . |
| B1727 | DRIVER SEAT REAR UP SW-SHORT TO B+ | GO to DTC B1727 . |
| B1731 | DRIVER SEAT REAR DN SW-SHORT TO B+ | GO to DTC B1731 . |
| B1751 | PARK/NEUTRAL SW-SHORT TO B+ | GO to DTC B1751 . |
| B1952 | REAR SEAT UP/DN FDBK-SHORT TO B+ | GO to PINPOINT TEST B . |
| B1953 | REAR SEAT UP/DN FDBK-SHORT TO GND | GO to DTC B1953 . |
| B1956 | FRONT SEAT UP/DN FDBK-SHORT TO B+ | GO to PINPOINT TEST B . |
| B1957 | FRONT SEAT UP/DN FDBK-SHORT TO GND | GO to DTC B1957 . |
| B1960 | SEAT RECLINE FWD/BWD FDBK-SHORT TO B+ | GO to DTC B1960 . |
| B1961 | SEAT RECLINE FWD/BWD FDBK-SHORT TO GND | GO to DTC B1961 . |
| B1964 | SEAT HORZ FWD/RWD FDBK-SHORT TO B+ | GO to PINPOINT TEST B . |
| B1965 | SEAT HORZ FWD/RWD FDBK-SHORT TO GND | GO to DTC B1965 . |
| U1256 | NO ISO-9141 ACKNOWLEDGMENT AFTER 5 RETRIES | GO to DTC U1256 . |
SYMPTOM CHART
| Symptom | Go To Test: |
|---|---|
| No Communication With Driver Seat Module | C |
| No Communication with Driver Door Module | D |
| Power Seat Completely Inoperative (Without Programmable Seat) | E |
| Forward/Backward Operation Does Not Work Properly | F |
| Up/Down Tilting Operation Does Not Work Properly | G |
| Up/Down Lifting Operation Does Not Work Properly | H |
| Lumbar Support Operation Does Not Work Properly | J |
| Memory Seat Operation Does Not Work Properly | K |
| Heated Seat Inoperative | L |
