Start Interrupt Relay

NOTE: Start interrupt relay is located behind right side of I/P, right of glove box. See Fig 1.

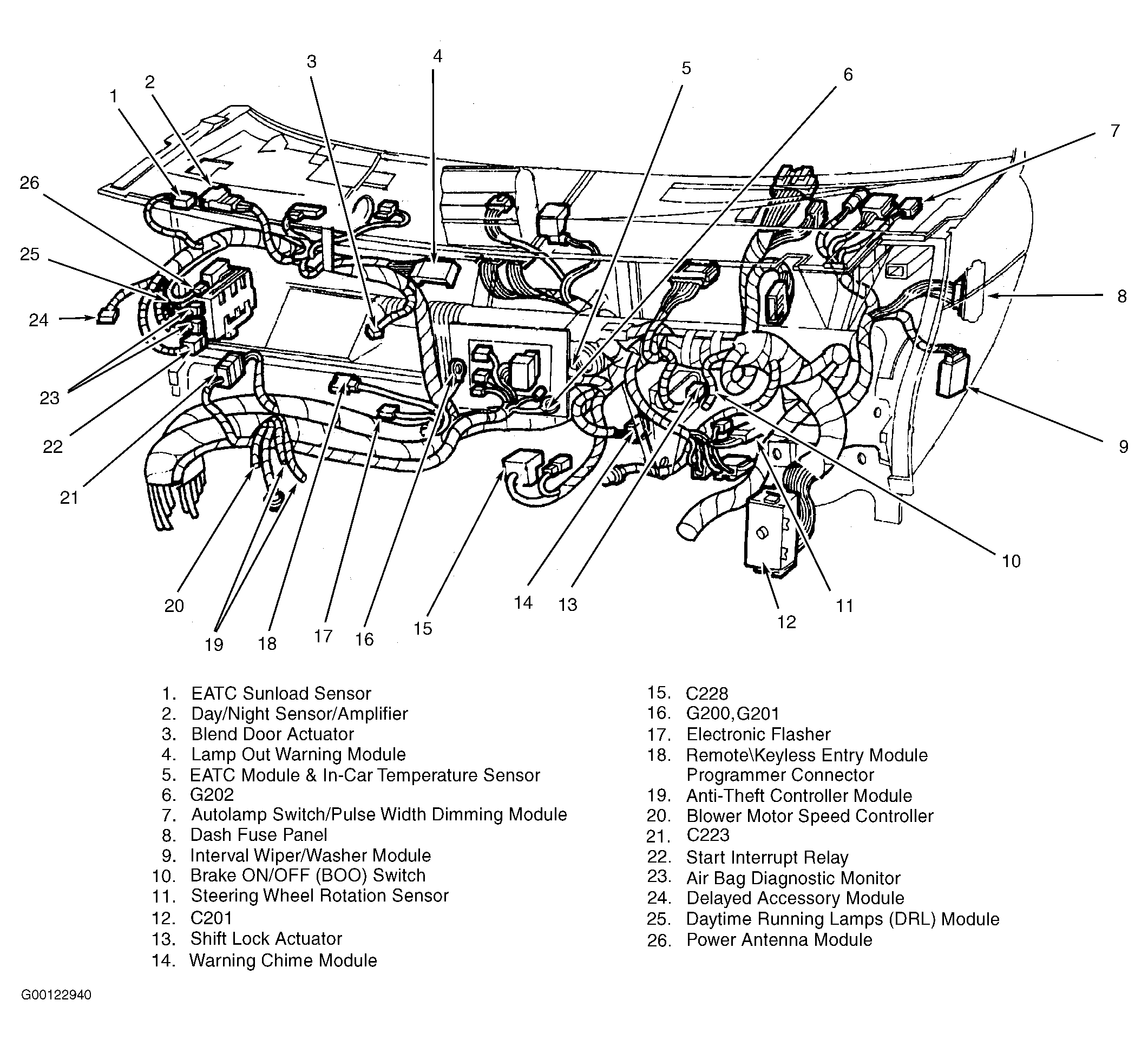

Fig 1: Behind Dash

G00122940

Courtesy of FORD MOTOR CO.
