Overhaul - AXOD-E: Application

NOTE: The AXOD-E transaxle is also known as AX4S.
APPLICATION

Vehicle Application Engine Size
Continental
1991-94 3.8L SFI
1995 4.6L SFI
Sable
1991-96 3.0L SFI
1991-95 3.8L SFI
Taurus
1991 2.5L SFI
1991-96 3.0L SFI
1991-95 3.8L SFI
1991-95 (Police) 3.8L SFI
1993-95 (SHO) 3.2L SFI
Windstar
1995-96 3.0L SFI
1995-96 3.8L SFI

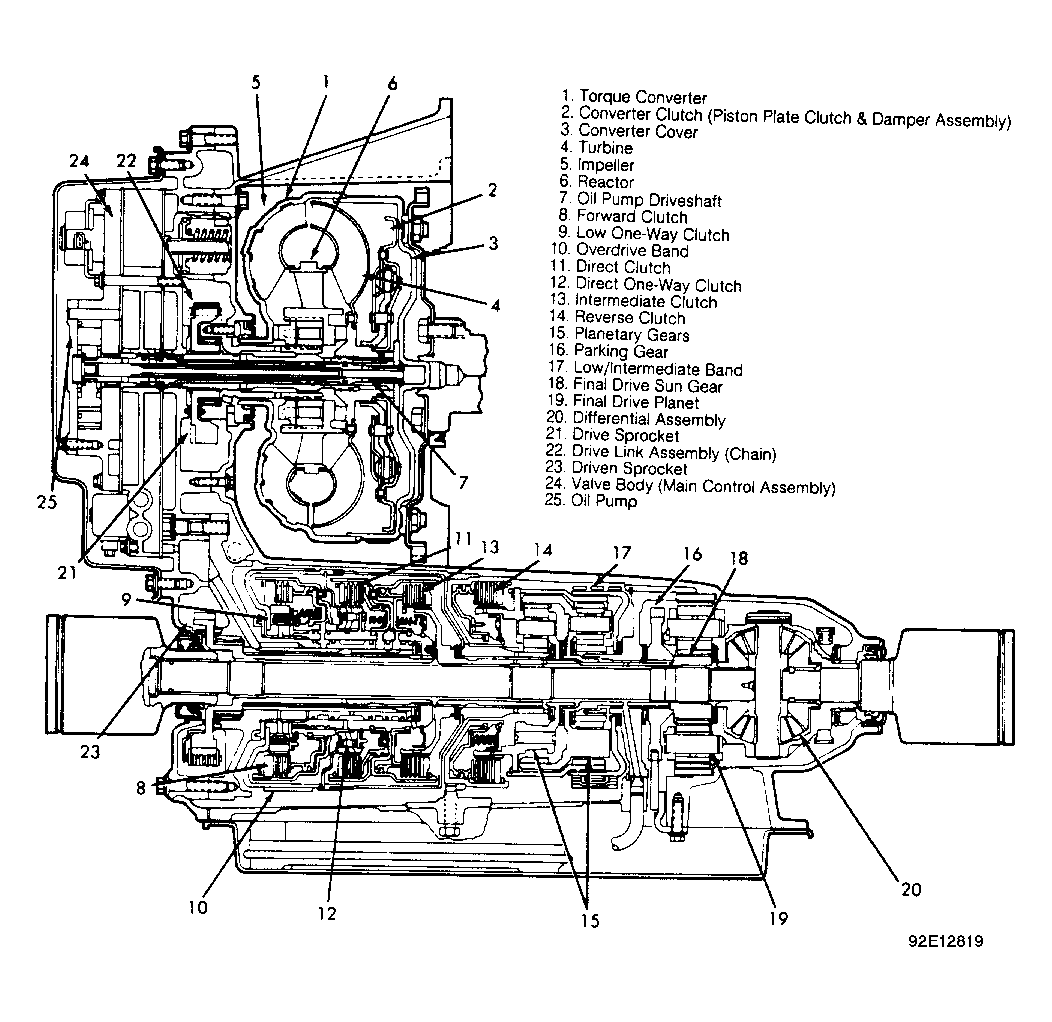

Fig 1: Identifying Transmission Components
G92E12819Courtesy of FORD MOTOR CO.
