Components [01/2017 - ]

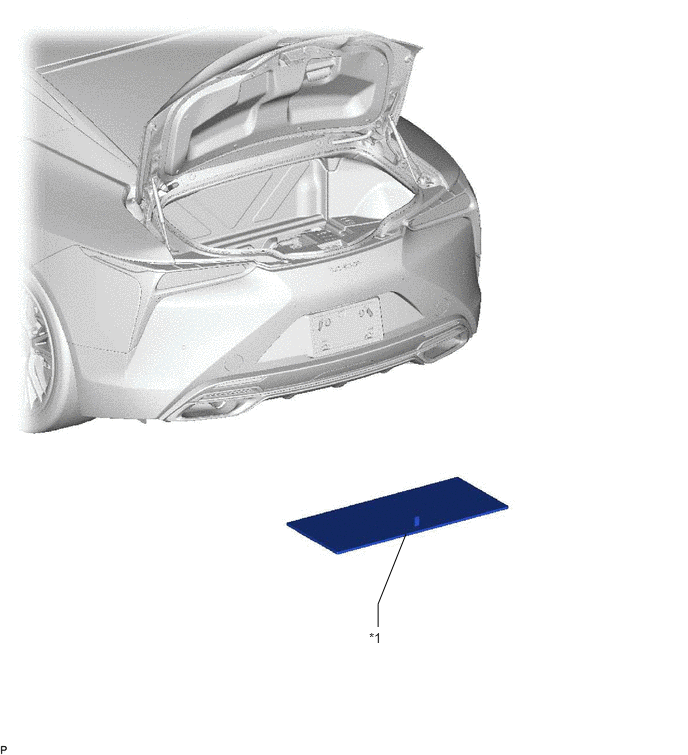

Fig 1: Auxiliary Battery Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NO. 2 DECK BOARD

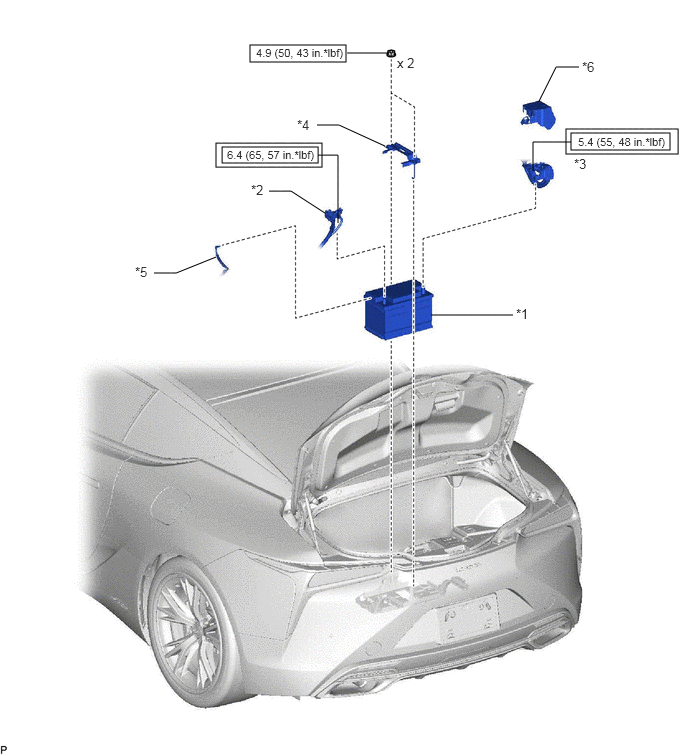

Fig 2: Auxiliary Battery Replacement Components With Torque Specifications (2 Of 2)

*1	AUXILIARY BATTERY	*2	NEGATIVE AUXILIARY BATTERY TERMINAL
*3	POSITIVE AUXILIARY BATTERY TERMINAL	*4	BATTERY CLAMP
*5	BATTERY EXHAUST HOSE	*6	BATTERY TERMINAL CONNECTOR COVER
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
