Removal [08/2015 - ]: Procedure

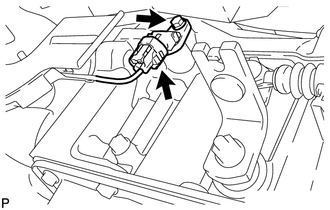

  1. REMOVE SPEED SENSOR NT
    GTY287049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.
    3. Remove the O-ring from the sensor.

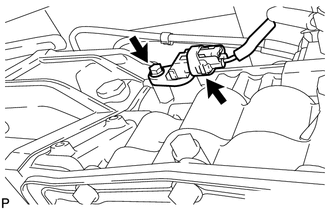

  2. REMOVE SPEED SENSOR SP2
    GTY287043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.
    3. Remove the O-ring from the sensor.
